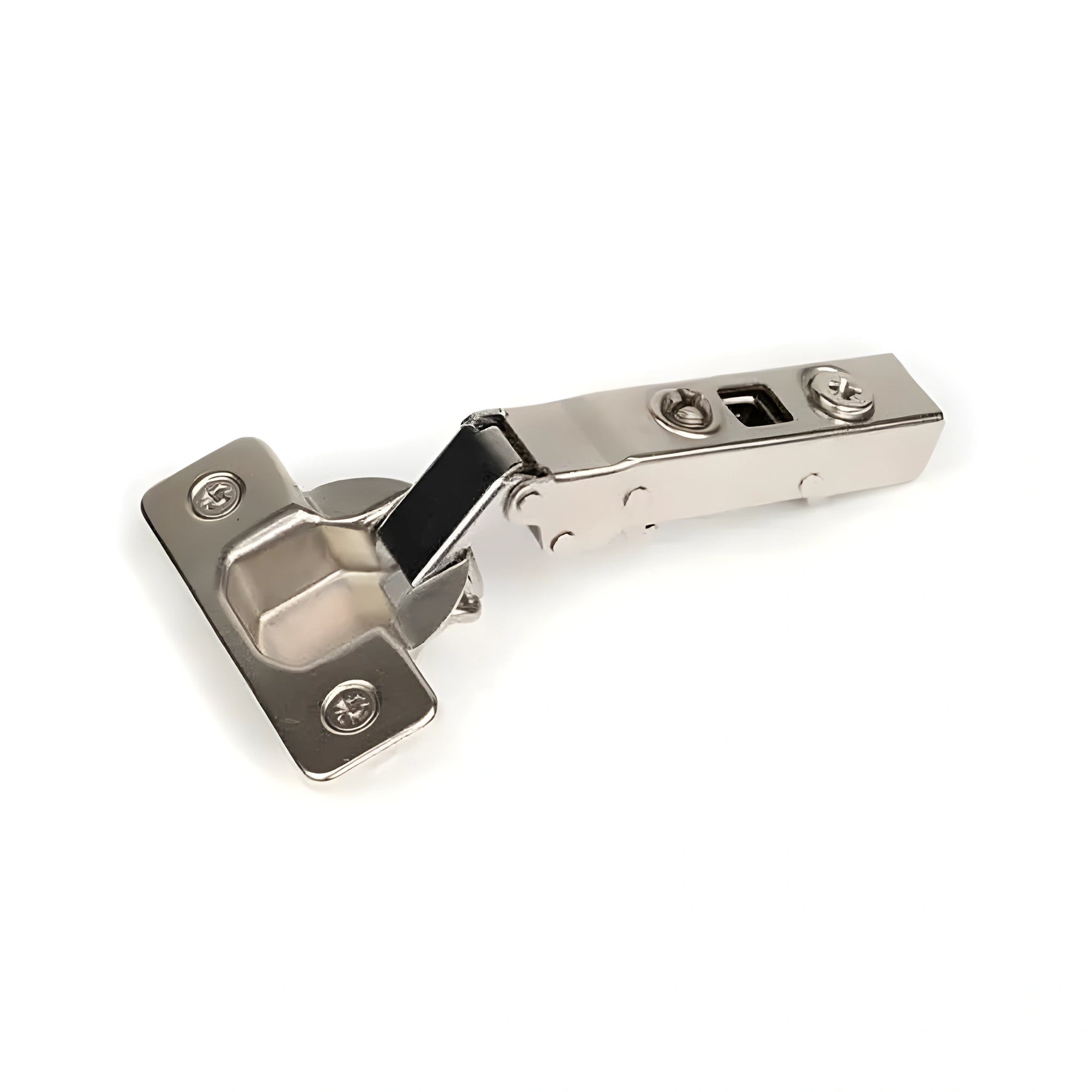

125 Degree Clip Cushion Hinge - 125 Degree, Clip Cushion Hinge, Full Overlay, with 8mm dowels.
Specifications
| Material | Heavy-duty steel |
|---|---|
| Finish | Nickel-plated |
| Opening Angle | 125° |
| Overlay | Full Overlay |
| Fastening | With 8mm dowels |
| Brands | CGS |
| Mounting Type | Frameless |
| Closing Method | Cushion-Close |
| Range of Motion | 125 deg |
| Frameless Overlay | Full Overlay |
| Door Mounting | Clip-On |
| Fastening Type | Dowel |
| Type | Concealed, Cushion-Close (soft-close) hinge |
| Mounting Style | Face frame or frameless (with compatible plate) |
| Cup Diameter | 35 mm (standard European hinge size) |
| Cup Depth | 11.5 -12 mm |
| Adjustment | 3-way (side-to-side, height, and depth) |
| Closing Mechanism | Integrated cushion close damper for quiet, controlled closing |
| Door Thickness | 14 mm – 22 mm (typical range) |
| Mounting Plate | Clip-on style for fast installation and easy removal |
| Cycle Testing | Exceeds 50,000 open/close cycles |
Details
- Type: Concealed, Cushion-Close (soft-close) hinge
- Mounting Style: Face frame or frameless (with compatible plate)
- Opening Angle: 125° (extra-wide for greater cabinet access)
- Material: Heavy-duty steel
- Finish: Nickel-plated (corrosion resistant)
- Overlay Options: ½” overlay (other overlays available)
- Cup Diameter: 35 mm (standard European hinge size)
- Cup Depth: 11.5 -12 mm
- Adjustment: 3-way (side-to-side, height, and depth)
- Closing Mechanism: Integrated cushion close damper for quiet, controlled closing
- Door Thickness Compatibility: 14 mm – 22 mm (typical range)
- Mounting Plate: Clip-on style for fast installation and easy removal
- Cycle Testing: Exceeds 50,000 open/close cycles
- 125° Wide Opening Angle – Provides extra clearance and easier access to cabinet interiors.
- Cushion-Close Cushion Technology – Prevents slamming with smooth, controlled door closure.
- Concealed European-Style Hinge – Hidden inside the cabinet for a seamless, modern look.
- Clip-On Mounting System – Enables fast installation and easy removal without tools.
- Durable Steel Construction – Engineered for long-term reliability.
- Nickel-Plated Finish – Corrosion-resistant and suitable for high-humidity areas like kitchens and bathrooms.
- Standard 35 mm Hinge Cup – Industry standard size for compatibility and easy replacement.
- Three-Way Adjustment – Fine-tune door position with depth, height, and side-to-side adjustability.
- Supports Various Door Thicknesses – Typically 14 mm – 22 mm.
- Quiet Performance – Ideal for residential or commercial use where noise reduction matters.
- Cycle-Tested for Strength – Exceeds 50,000 open/close operations.
- Kitchen Cabinetry – Extra-wide 125° opening allows easier access to deep or corner cabinets.
- Bathroom Vanities – Quiet, soft-close function ideal for high-moisture, high-use spaces.
- Wardrobes & Closet Cabinets – Provides wider opening angles for bulkier storage access.
- Pantry & Utility Cabinets – Enhances accessibility in tall or multi-shelf storage units.
- Office Furniture & Storage Units – Professional-grade hinge for desks, credenzas, and built-ins.
- Entertainment Centers & Media Consoles – Wide-angle opening for convenience and wire management.
- Custom Cabinetry & Millwork – Perfect for premium projects requiring concealed, soft-close hardware.
- Retail & Commercial Fixtures – Supports display cabinetry with quiet, wide-opening access.
- Hospitality Projects – Hotels, condos, and apartments benefit from quiet performance and durability.
- RV & Mobile Home Cabinetry – Wide opening with secure, cushion-close function prevents rattling on the move.
