- Includes factory‑installed End Clip FS342 (Cat. No. FR2922)
- For sash load weights up to 25 pounds — standard duty replacement
- Industry standard 3/8" (10 mm) tube diameter tubular spiral window balance
This standard-duty
CRL Tubular Spiral Window Balance (FR2922) is designed for non-tilt windows and replaces metal or plastic tube balances. It supports sash loads up to 25 pounds and uses a 3/8" (10 mm) tube — ideal for non-tilt window replacement and repair projects requiring a factory installed end clip FS342.

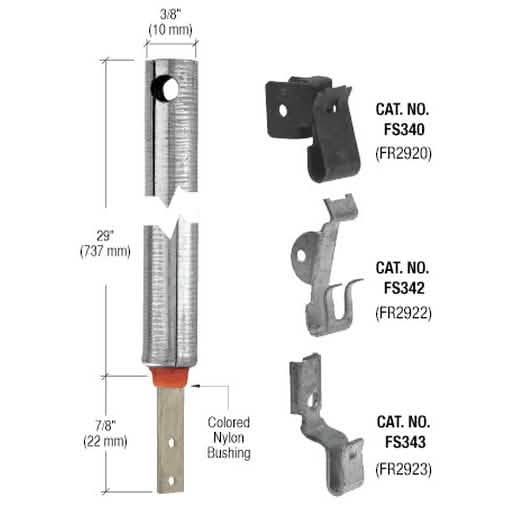

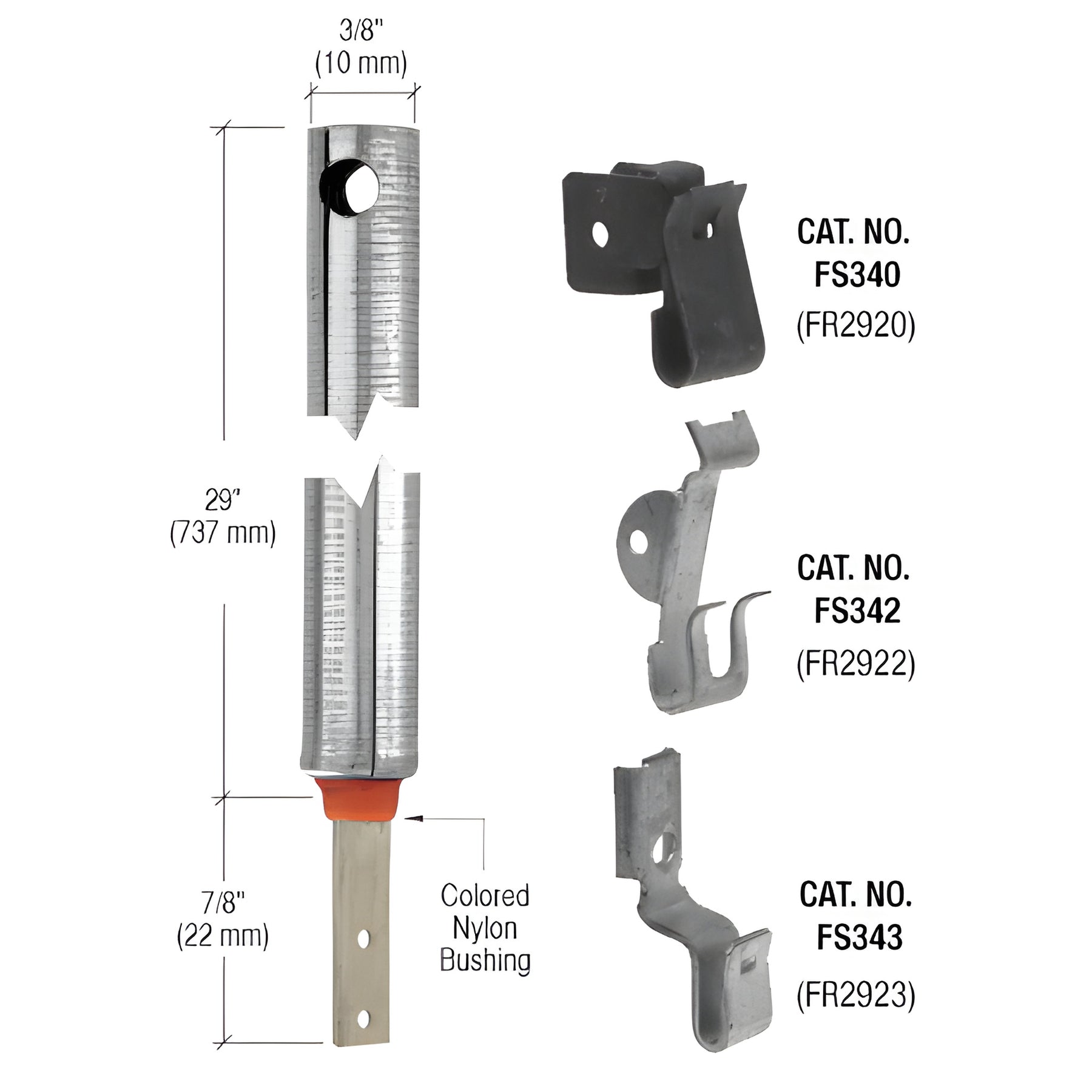

How to order the correct tubular spiral window balance with factory installed clips:
1. Confirm the old balance uses a metal or plastic tube.
2. Measure tube length from the balance end to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing.
4. Verify the rod extension protruding from the nylon bushing matches.
5. Choose the required clip.
6. Match tube diameter, tube length, nylon bushing color, and clip to the balance being replaced. If all measurements and colors match, FR2922 is the correct balance.
Product Warning:NOTE: This FR Series balance is also available with End Clips FS340
(Cat. No. FR2920) and FS343
(Cat. No. FR2923).
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Call or order FR2922 online today to get the correct tubular spiral window balance with factory-installed FS342 clip.
