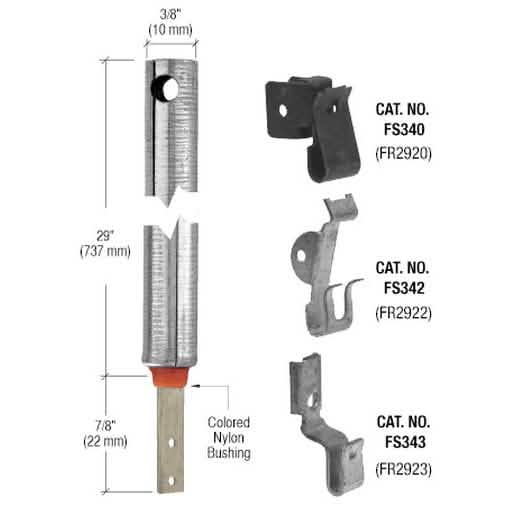

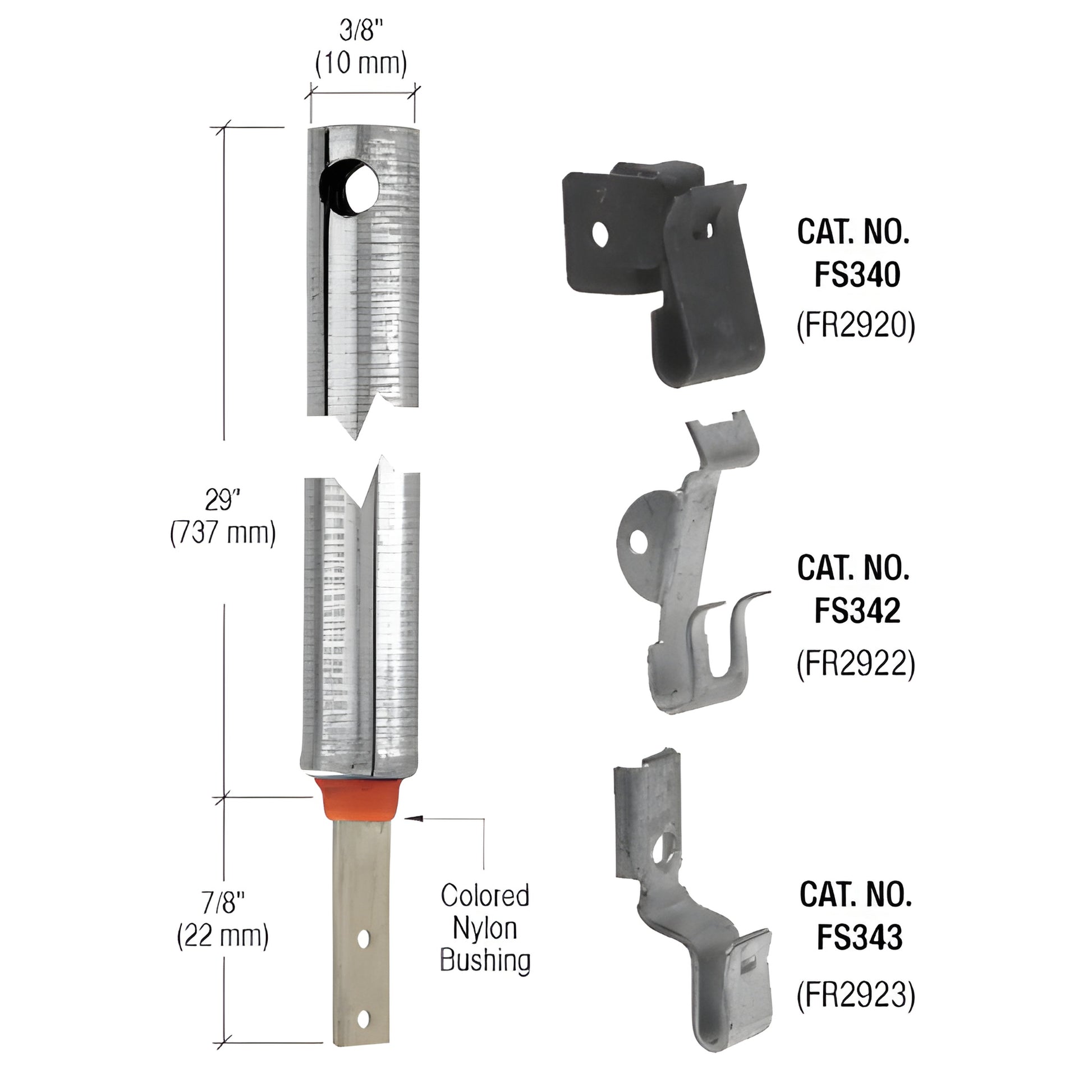

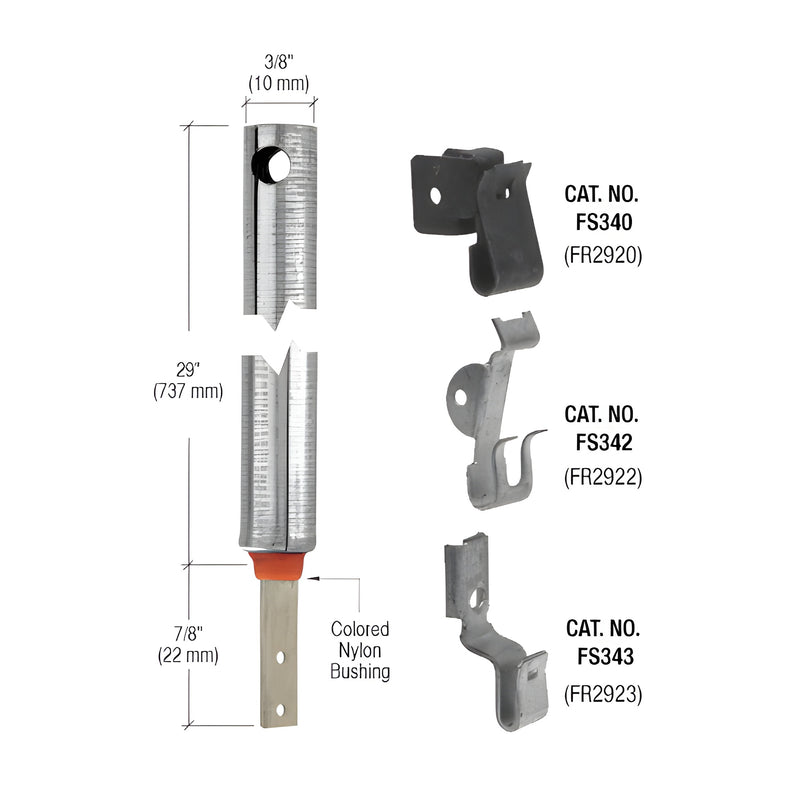

3/8" 2920 Non-Tilt Spiral Balance With FS343 Clip Attached

• Includes Factory Installed End Clip FS343
• For Sash Load Weights of Up to 25 Pounds
• Industry Standard 3/8" (10 mm) Tube Diameter

This standard duty

CRL Tubular Spiral Window Balance

for non-tilt type windows will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds.

How to Order Tubular Spiral Window Balances with Factory Installed Clips:

1. Specify that the tube on the old balance is metal or plastic.

2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.

3. Check the color of the nylon bushing.

4. Verify that the rod extension protruding from the nylon bushing matches.

5. Choose required clip.

6. Match tube diameter, tube length, nylon bushing color and clip against the balance to be replaced. If all agree, then this is the correct balance.

This FR Series Balance is also available with End Clips FS340

(Cat. No. FR2920)

and FS342

(Cat. No. FR2922)

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
