CRL
3/8 in 2940 Non-Tilt Window Spiral Balance Replacement w/ FS340 Clip
3/8 in 2940 Non-Tilt Window Spiral Balance Replacement w/ FS340 Clip
Regular price
$31.73 CAD
Regular price
Sale price
$31.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FR2940
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bushing Color
Green
Door Width Range Exterior
0-42
Door Width Range Interior
0-48
Guides Attached
Yes
Heaviest Vent Weight Range
25
Series
FR Series Balances
Tube Diameter
3/8
Tube Length
29
Window Type
Non-Tilt
Overview
- Includes factory-installed end clip FS340
- For sash load weights up to 25 pounds
- Industry-standard 3/8" tube diameter

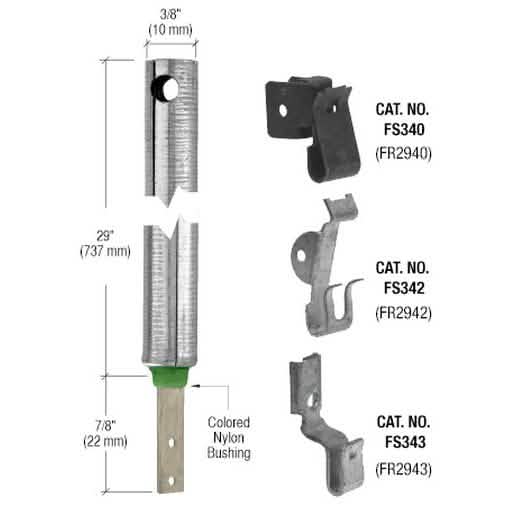

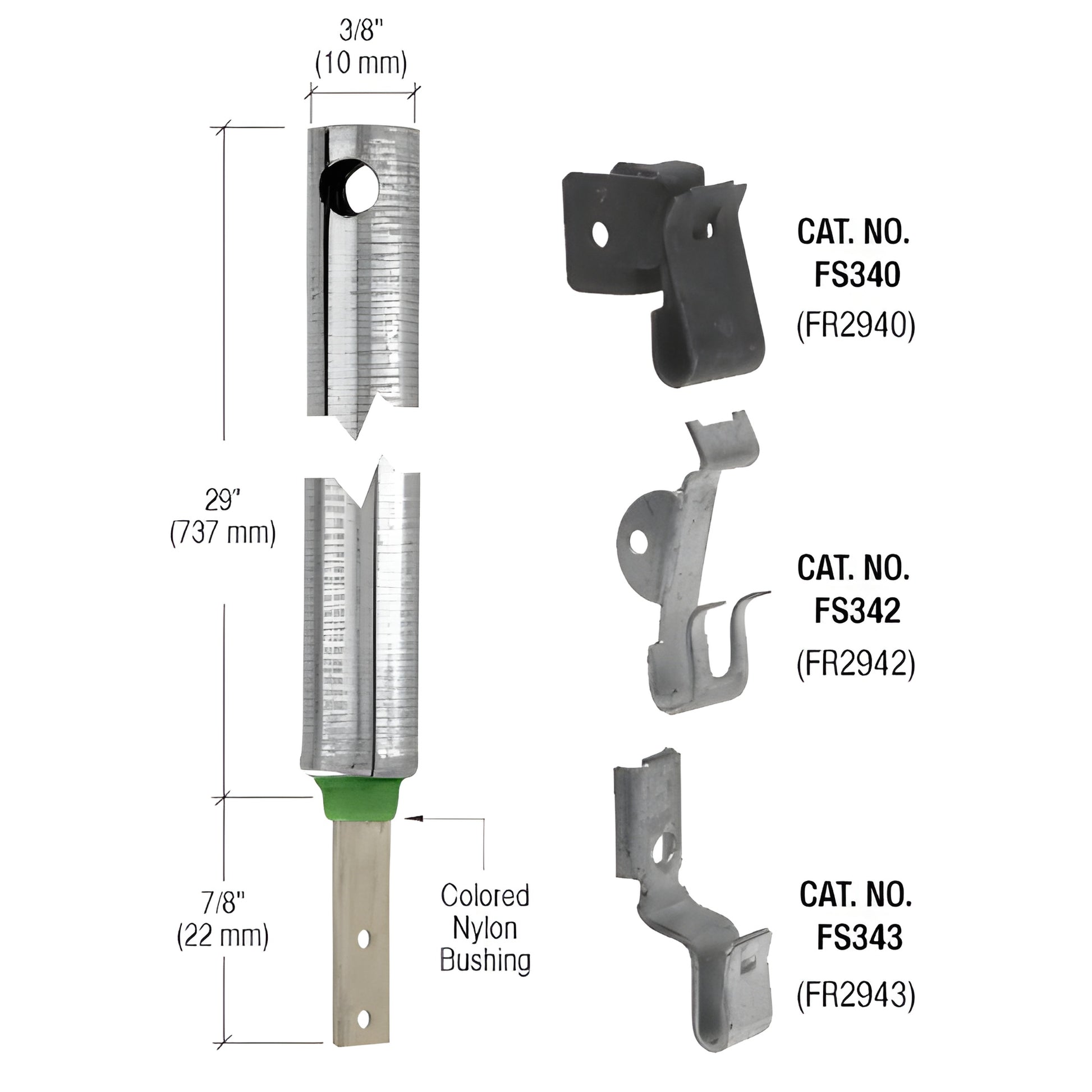

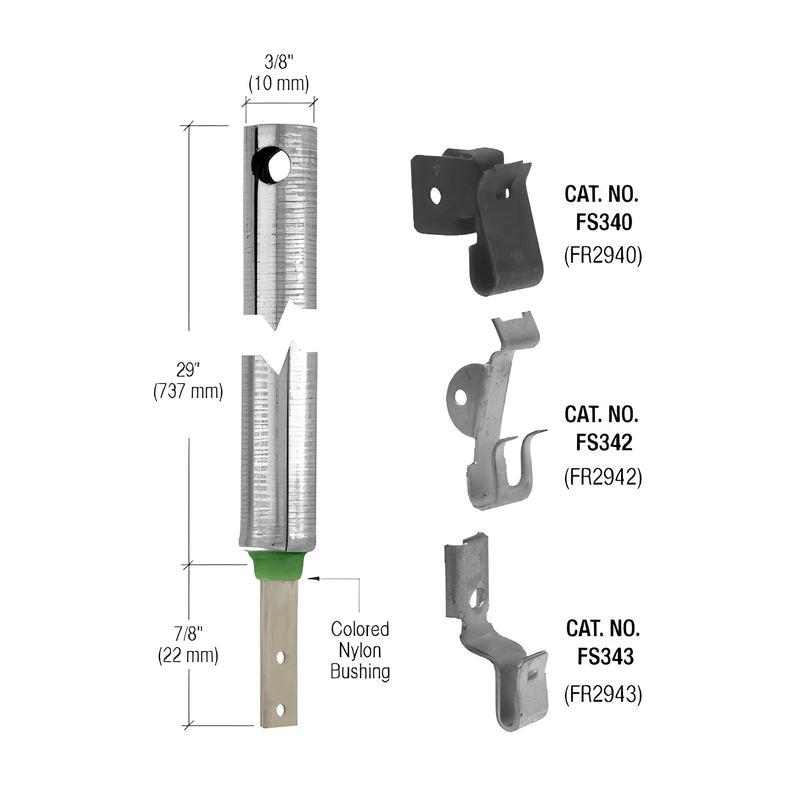

This standard-duty CRL Tubular Spiral Window Balance (SKU FR2940) is a drop-in replacement for metal or plastic tube balances on non-tilt windows. Designed for sash loads up to 25 pounds and standard 3/8" tube diameter, it ships with the factory installed end clip FS340 for easy installation.
How to order replacement tubular spiral window balances with factory-installed clips:
1. Confirm the old balance tube is metal or plastic.
2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing.
4. Verify the rod extension protruding from the nylon bushing matches the replacement.
5. Choose the required clip.
6. Match tube diameter, tube length, nylon bushing color and clip to the balance being replaced. If all match, this is the correct balance.
Product Warning:
NOTE: This FR Series balance is also available with end clips FS342 (Cat. No. FR2942) and FS343 (Cat. No. FR2943).
Ready to replace your non-tilt window balance? Order FR2940 or contact CRL Customer Service for assistance.
