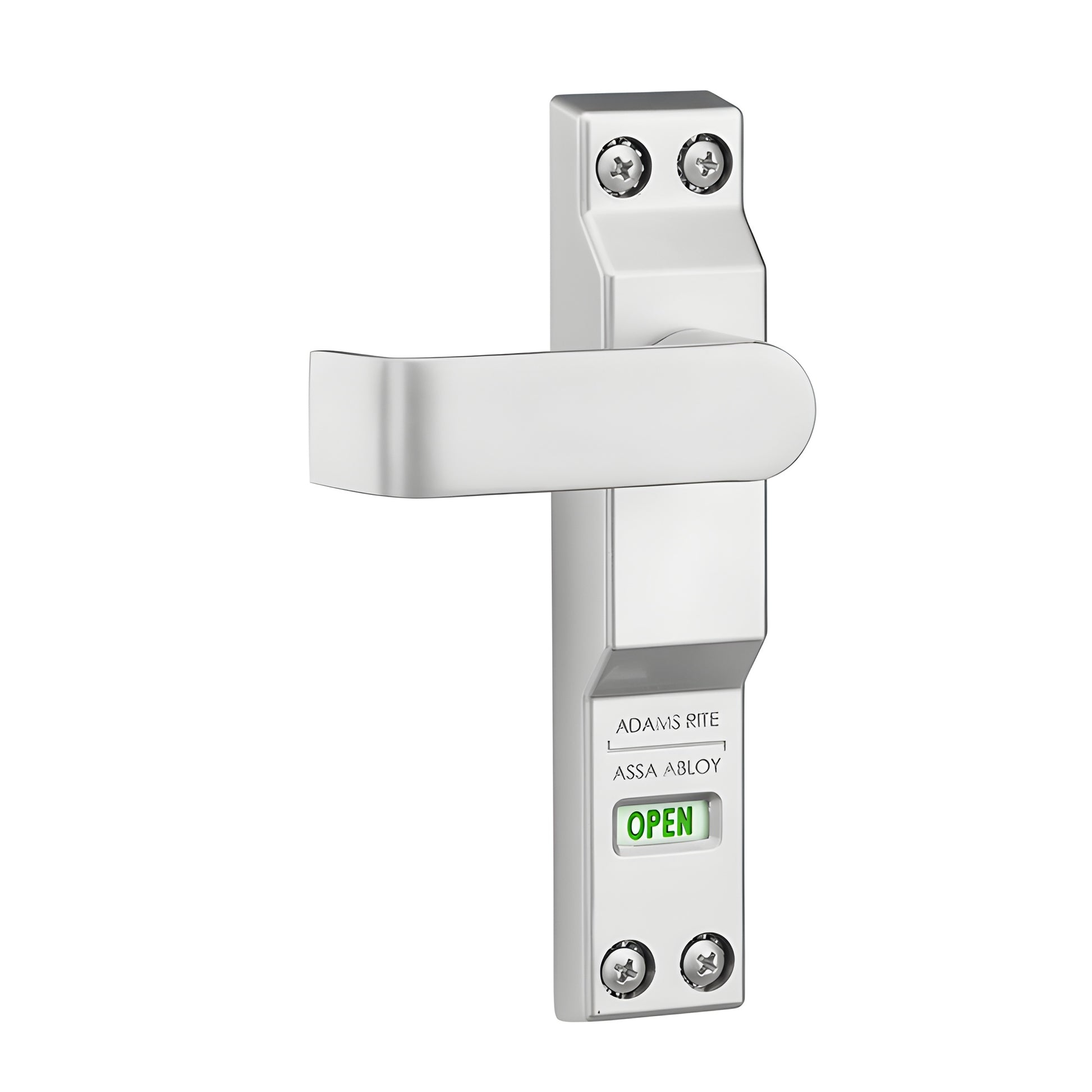

Adams Rite 4550 MS Right-Hand Deadlock Lever, Clear Anodized
Item# DH4550R628
Shipping Weight: 1.27 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.27 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Brand
Adams Rite
Finish/Color
Clear Anodized
Handing
Right Hand
Housing Depth
1
Housing Length
7-1/2
Housing Width
1-3/8
Includes
Mounting Hardware
Lever Length
3
Material
Aluminum
Projection
11/16
Series
4550 MS®
- Housing: Aluminum casting is 1-3/8" wide x 7-1/2" long x 1" deep [34.9 mm x 190.5 mm x 25.4 mm].
- Indicator: Words “LOCKED" in red letters or “OPEN" in green letters appear on white background when bolt is thrown or retracted respectively. Indicator is driven by lock bolt itself.
- Lever: 3" [76.2 mm] long aluminum with end-return design offers comfortable grip to lock or unlock.
The 4550 MS® Deadlock Lever (SKU DH4550R628) is an aluminum deadlock lever designed for easy unlocking of most MS® Deadlocks with approximately 3 lbs [1.36 kg] of downward force on a 3" [76.2 mm] lever. The spring-loaded lever returns to horizontal and relocks with an upward motion. A built-in visual indicator displays LOCKED (red) or OPEN (green) driven directly by the bolt for clear lock status. Designed for retrofit installation in place of an existing key cylinder or cylinder-type thumbturn on the inside of the door. Not compatible with 7/8" [22.2 mm] backset locks. Ideal for commercial and residential MS deadlock retrofit applications where a compact aluminum lever and visible lock indicator are required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Order SKU DH4550R628 for an aluminum MS deadlock lever with visual indicator—add to cart or contact CRL Customer Service to confirm fit.
