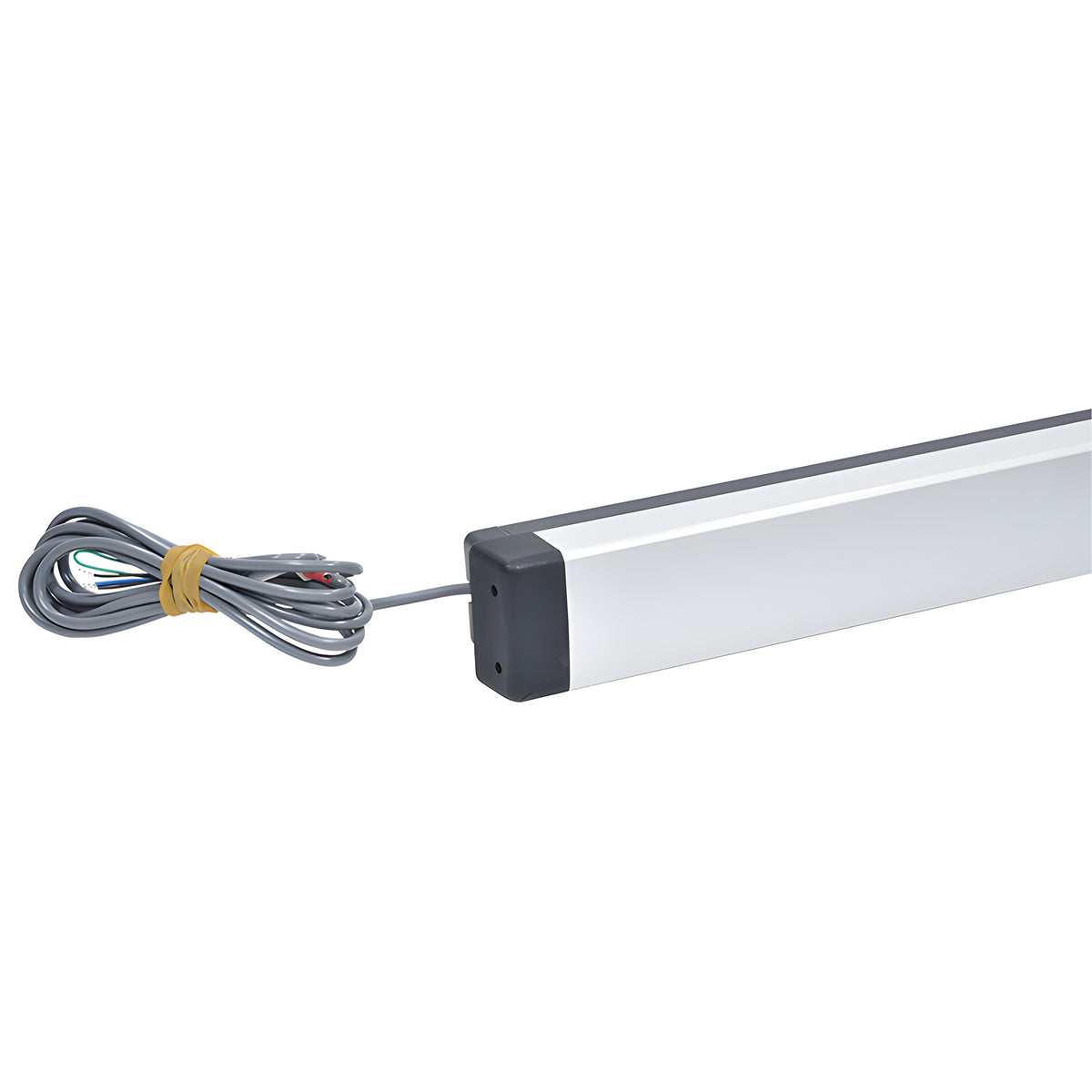

Adams Rite 8600 48" Motorized Concealed Vertical Rod Exit Device
Item# DH860MLR1148
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI/BHMA A156.3, Grade 1
Door Thickness
Suits 1-3/4" Standard, up to 2-1/4"
Door Type
Narrow, Medium, Wide Stile Aluminum
Finish/Color
Clear Anodized
Handing
Non Handed
Length
48
Series
8600
UL Listed
Yes
- Standard width bars can be field-cut to the next smallest opening width.
- Door Thickness: suits 1-3/4" (44.5 mm) standard, up to 2-1/4" (57.2 mm).
- Device requires modification when used with cylinder in doors over 1-3/4" (44.5 mm).
- Handing: device is non-handed for easy installation on left or right doors.
- UL 305 panic hardware — meets life-safety exit requirements.
- ANSI/BHMA A156.3, Grade 1 — commercial-grade durability and performance.
The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device (SKU: DH860MLR1148) is engineered for narrow-stile aluminum doors that need a life-safety, two-point locking solution with concealed vertical rods. Ideal for single doors or pairs, this concealed vertical rod exit device provides a clean aesthetic and high-performance commercial security for schools, offices, and healthcare facilities.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.
Need help specifying or ordering this concealed vertical rod exit device for narrow stile aluminum doors? Contact CRL Customer Service or request a quote now.
