CRL

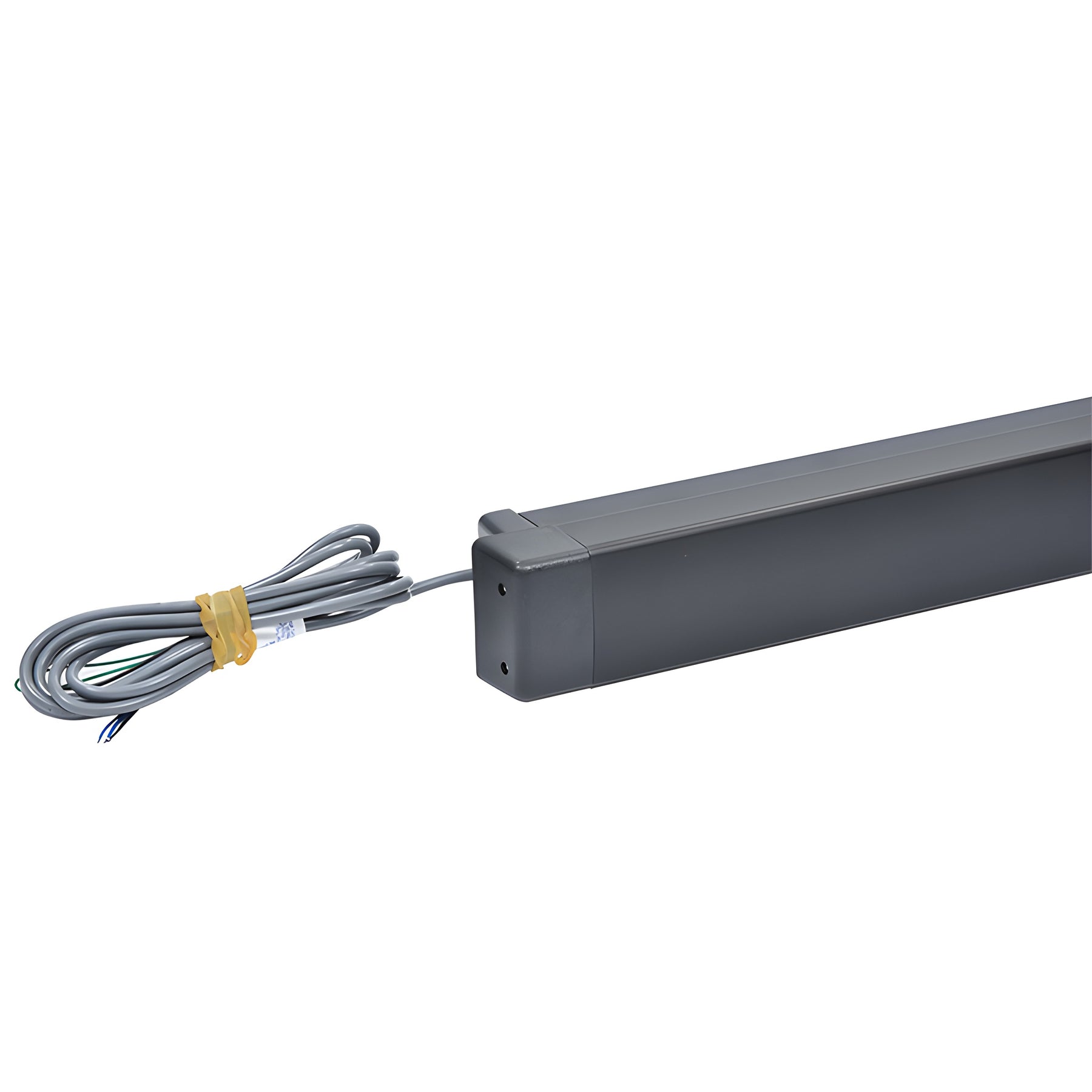

Adams Rite 8200 42 in Motorized Vertical Rod Exit - Dark Bronze
Item# DH8222MLR42313
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Bar Size
Adjusts 30" To 44"
Brand
Adams Rite
Certification
ANSI/BHMA A156.3, Grade 1
Door Thickness
Suits 1-3/4" Standard, up to 2-1/4"
Door Type
Narrow, Medium, Wide Stile Aluminum Doors
Finish/Color
Dark Bronze
Handing
Non Handed
Length
42
Series
8200 Motorized
Type
MLR
UL Listed
Yes
- Surface Mounted
- Motorized Latch Retraction (MLR)
- Handing: Device is non-handed
- UL 305 Panic hardware
- ANSI/BHMA A156.3, Grade 1
- Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]
8200 Series with Motorized Latch Retraction (MLR). The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is engineered for narrow stile aluminum doors and storefronts that require a life-safety exit device with surface vertical rods for two-point locking. Ideal for single doors or pairs of doors where a motorized latch retraction mechanism is needed for integration with access control systems.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
SKU: DH8222MLR42313 — Contact sales to confirm fit for your narrow-stile aluminum door and to request installation guidance.
Order now or contact us for a quote and lead time.
