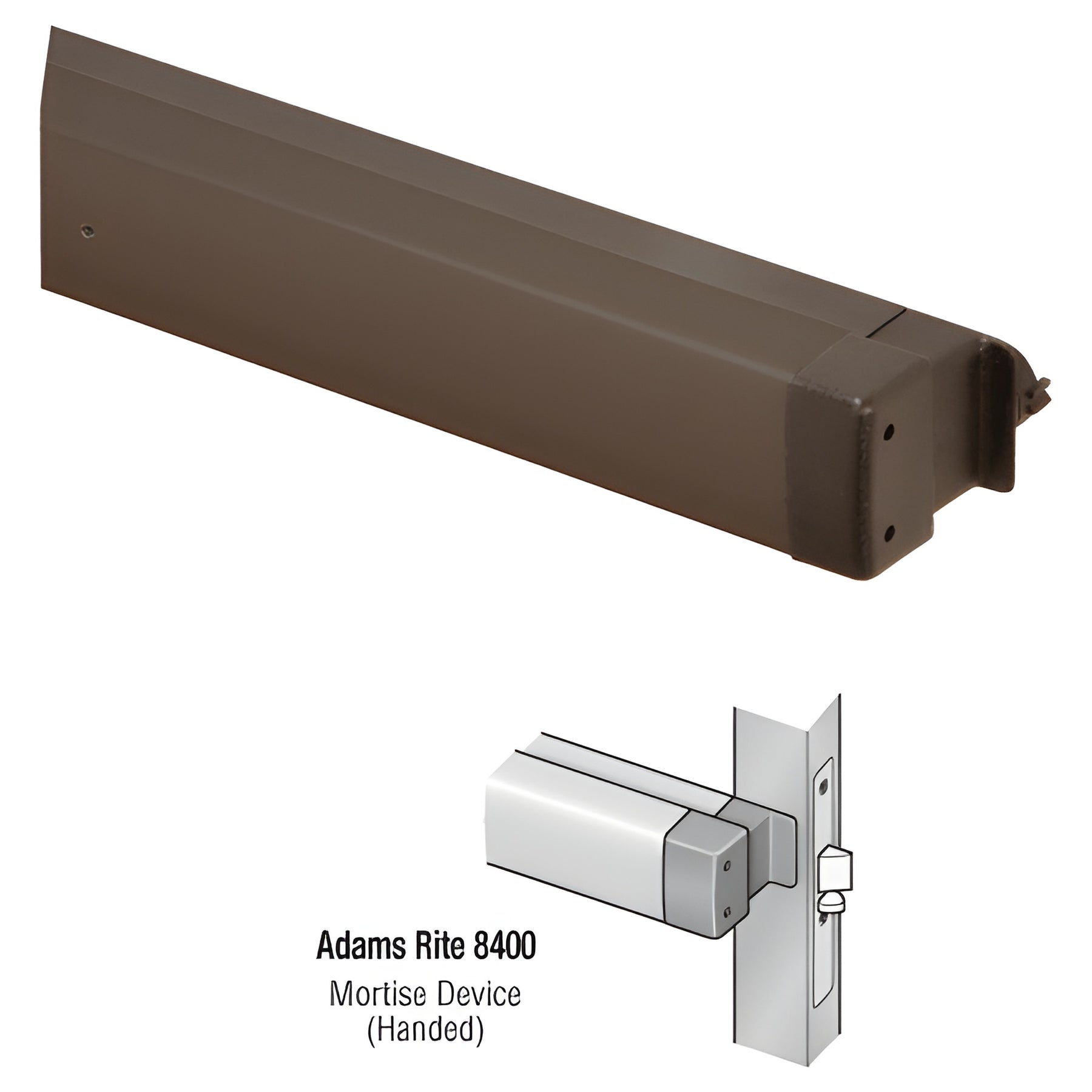

Adams Rite 8400 Panic Exit Device Mortise Only LH 36" Dark Bronze
Item# DH84122L036
Shipping Weight: 9.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI A156.3 Grade 1
Door Height
96
Door Thickness
1-3/4
Door Width
36
Finish/Color
Dark Bronze
Handing
Left Hand, Right Hand Reverse Bevel
Includes
Mounting Hardware
Material
Aluminum
Minimum Stile Width
2
Model
84222
Panic Bar Base Height
2-3/4
Panic Bar Projection
2-5/8
Panic Dogging
Standard Hex Key Dogging
Panic Type
Mortise Exit Devise
Push Pad Width
29-1/4
Recommended Door Type
Aluminum, Wood, Hollow Metal
Replacement Parts
DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series
8400
UL Listed
Yes
- Fits door stiles as narrow as 2" (51 mm) — ideal for narrow-stile aluminum doors
- UL Listed and tested to ANSI A156.3, Grade 1 — commercial-grade mortise exit device
- Easy-to-install single-door mortise panic device for retrofit or new construction
The 8400 Series Narrow Stile Mortise Exit Device (SKU: DH84122L036) is engineered for narrow-stile aluminum applications that require a life-safety mortise locking solution. Designed specifically for single-door installations, it provides Grade 1 reliability and code-compliant performance for commercial and institutional buildings.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor and video settings.
Order the 8400 Series narrow-stile mortise exit device for dependable, UL-listed Grade 1 performance — add to cart or contact sales for a quote.
