DRS 4" Sq Door Rail Lock for 5/8" Glass, 12" Black Bronze Anodized

• 12" (305 mm) length for 5/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

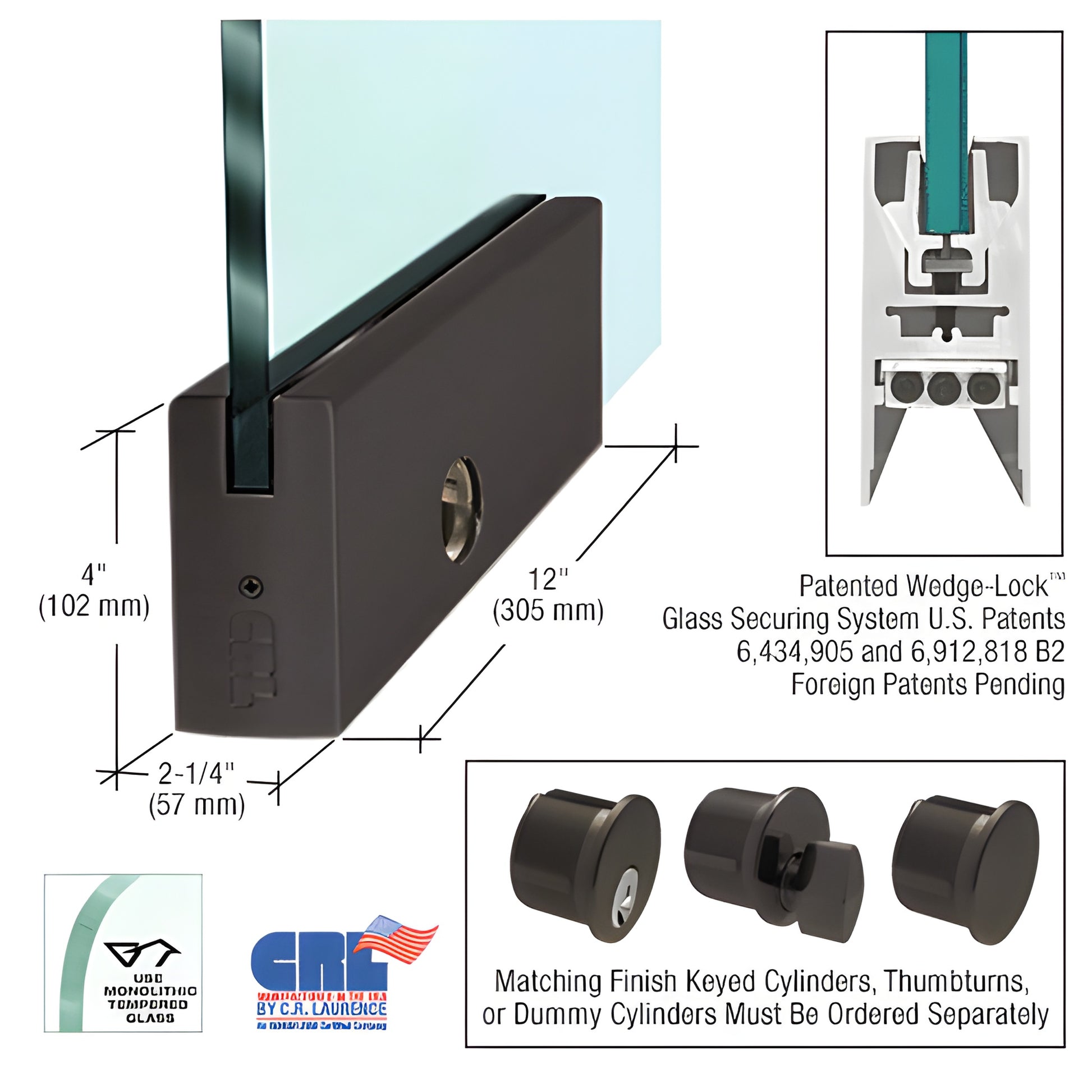

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SDU58PL) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This Wedge-Lock® door rail system for tempered glass doors secures the glass by applying pressure from the bottom of the rail using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions engage an internal wedge to clamp the glass and gasket, generating extremely high retention force (over 900 lbs. in the 9" corner rail).

NOTE: Actual product height: 4-1/16" (103 mm).

The Wedge-Lock® Glass Securing System delivers fast installation time and reliable long-term performance. CRL Wedge-Lock® Door Rails ship fully fabricated and ready-to-install with End Caps installed. After installing the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable door alignment slide provides ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door — ideal for out-of-square openings.

To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned other than the American Standard setback.

Other advantages of the Wedge-Lock® Door Rails for glass storefront and interior doors:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and stays in adjustment
• Internal components do not require removal before installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths can be quoted. Rail specifications, templates and hardware packages are available from CRL Technical Sales via
