Black Bronze Low-Profile Square Door Patch Rail 8in for 3/8in Glass

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

SKU: DR2SDU38P

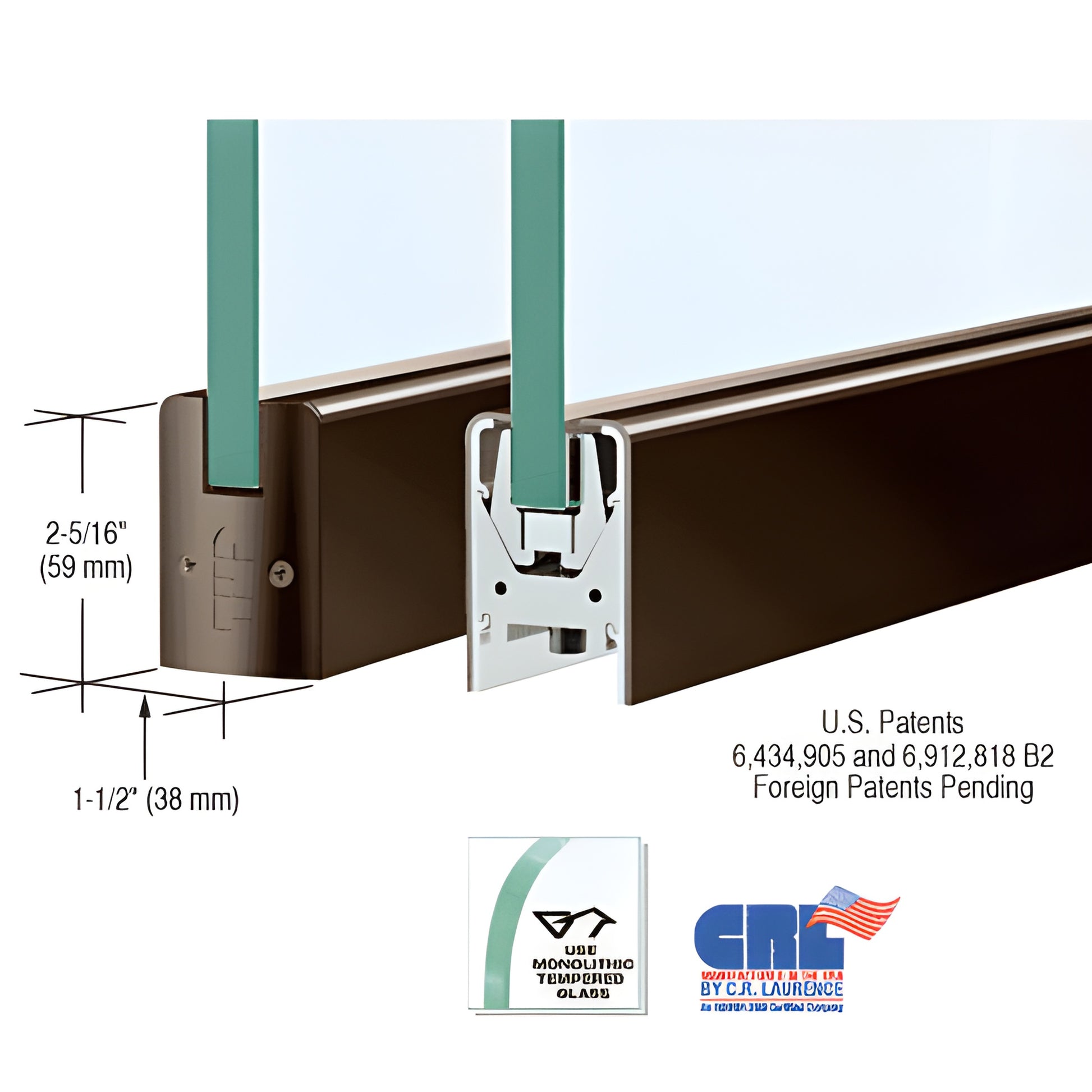

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides secure attachment and the fastest installation time among door rail systems — experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated with the end caps installed; after mounting, simply attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide.

Standard on both top and bottom rails, the Adjustable Door Alignment System lets you move the door ±1/8" (3 mm) toward or away from the jamb without removing the door. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide, the outer bolts move the slide in or out. The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other benefits of Wedge-Lock® door rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass (model dependent)
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain assembled for faster installation
• Durable glass securing pads designed for extreme environments

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

Standard finishes available; custom finishes and widths quoted upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
