Black Bronze Low-Profile Door Patch Rail w/ Lock 8in 1/2in Glass

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails: only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

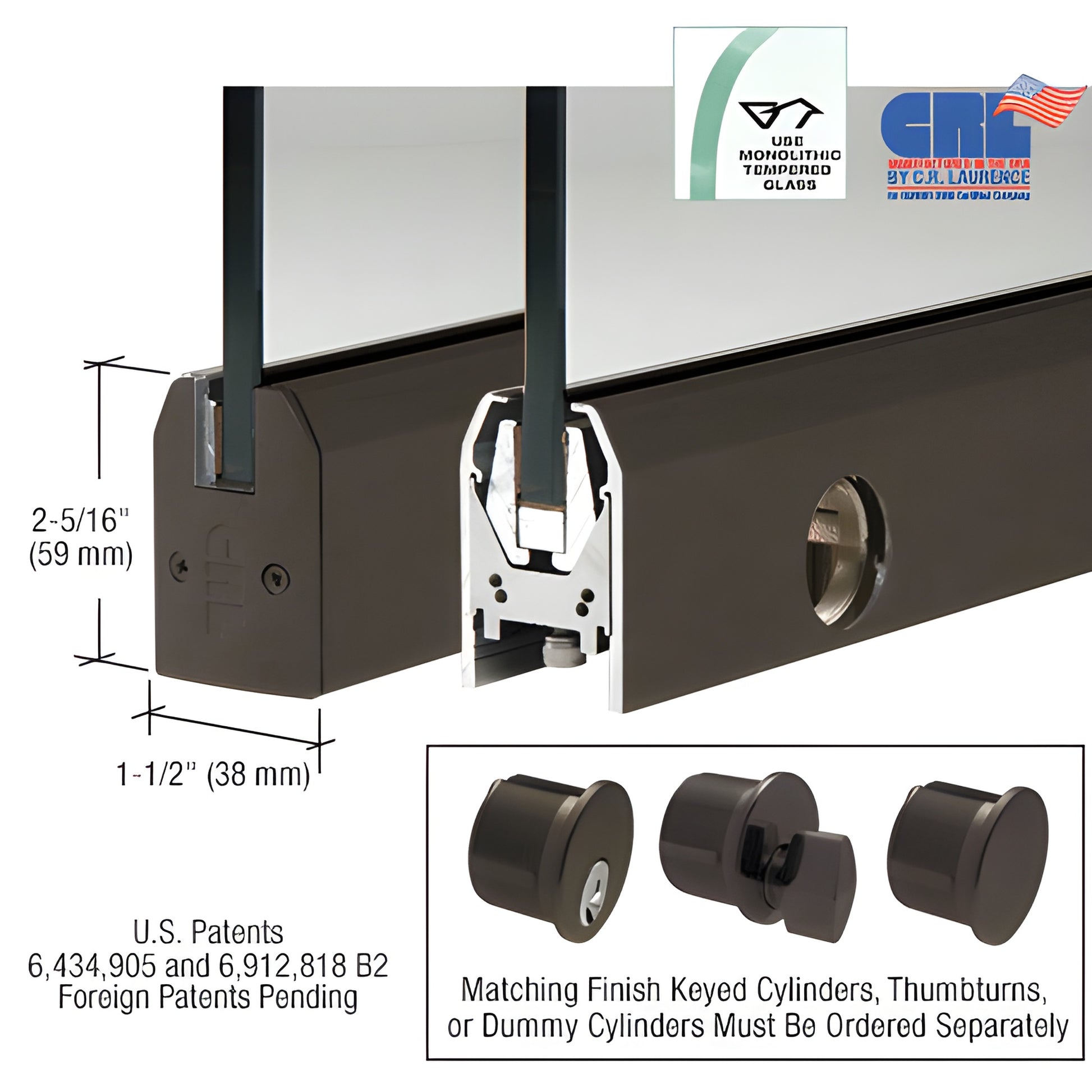

Our CRL Low Profile Door Rail (SKU: DR2TDU12PL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Low profile door rails ship complete with end caps, installation instructions, and adjustment wrenches—ready to install.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system delivers a secure attachment and the fastest installation time among commercial door rails. Experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated; after installation attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable system allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door—standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide, while the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide permits pivot placement other than the American Standard setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of Wedge-Lock® door rails:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and maintains adjustment
• No need to remove internal components before installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block. Arms and pivots are ordered separately to meet job requirements.

CRL Wedge-Lock® door rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails include the standard Kwik-Adjust™
