Tapered DRS Patch Rail 8in, Black Bronze Anodized Lock, 3/8in Glass

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2TDU38PL

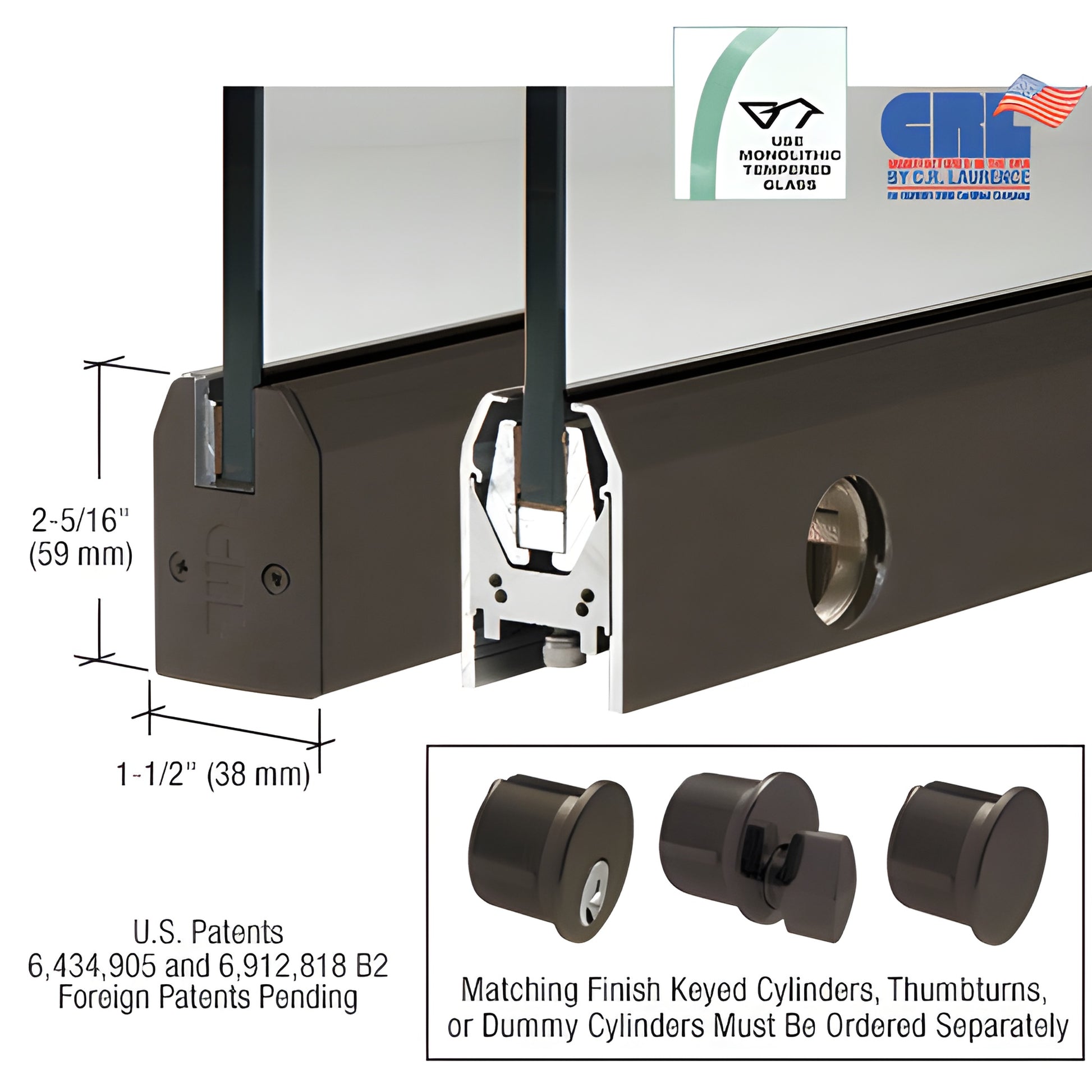

Our CRL Low Profile Door Rail is 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for frameless and semi-frameless glass doors, this low profile door rail delivers a secure, long-lasting attachment for 3/8" (10 mm) glass with fast installation — experienced installers can prepare a door in under ten minutes.

NOTES: Actual product height: 2-5/16" (59 mm). Arms and pivots are sold separately; jamb alignment block is built in.

Each rail ships complete with End Caps, installation instructions, and adjustment wrenches for quick jobsite setup. After rail installation, attach the door arm or pivot to the adjustable door alignment slide already assembled in the rail. The adjustable slide provides ±1/8" (±3 mm) in/out door adjustment on both top and bottom rails without removing the door — ideal for out-of-square openings or fine alignment.

Access to adjustment is simple: remove the End Cap to reveal three socket head cap bolts — center bolt secures the slide, outer bolts adjust the slide 1/8" (3 mm). The single-component rigid housing resists shifting or losing adjustment over time. Internal components remain installed during fitting, and glass securing pads are designed for durability in extreme environments.

Models are available to accept 3/8" to 3/4" (10–19 mm) glass. Standard finishes available; custom finishes and custom widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All Door Rails include the Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks ship with the lock mechanism installed; matching finish keyed cylinders or thumbturns are ordered separately.
• End Caps are included with stock lengths. Specify total door rail length (including End Caps) for custom lengths.
