Black Bronze Low-Profile Door Patch Rail 3/8" Glass 8" No Lock

• 8" (203 mm) length for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System for fast, secure installation
• Low profile rails — only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2TDU38P

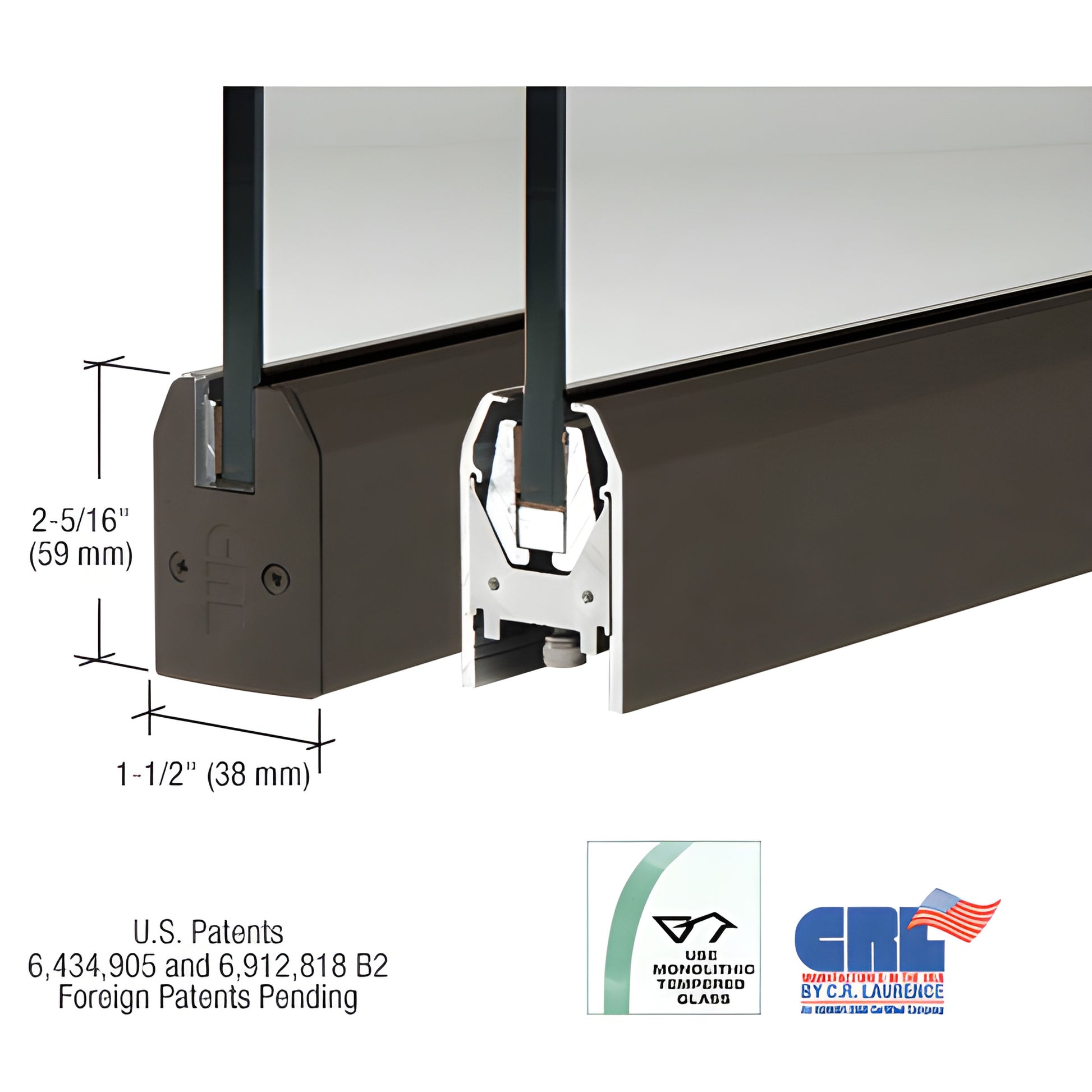

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile glass door rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches—designed specifically for frameless and architectural glass door applications.

Key differentiators

• Fast installation: experienced installers can prepare a door in under ten minutes using the Wedge-Lock® system
• Adjustable Door Alignment System: built-in top and bottom adjustment allows ±1/8" (3 mm) without removing the door
• Rigid single-component housing resists shifting and long-term misalignment
• Glass securing pads engineered for longevity in extreme environments
• Models accept 3/8" to 3/4" (10–19 mm) glass for versatile glass door applications

After rail installation, attach the door arm or pivot (not included) to the adjustable alignment slide. To fine-tune alignment, remove the end cap to access three socket head cap bolts: center bolt locks the slide and outer bolts provide the ±1/8" (3 mm) adjustment. The low-profile slide allows pivot placement off the American Standard setback to accommodate out-of-square openings.

Notes & ordering

• All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, thumbturns, and closers must be ordered separately.
• Pivot inserts 1NT701, 1NT703, and 1NT704 sold separately for overhead or floor closers; Low Profile Door Rail pivot inserts available separately.
• End caps are included in stock lengths; specify overall door rail length (including end caps) for custom-length rails.
• Rail specifications, templates, and hardware packages available from CRL Technical Sales via e-mail.

CRL Wedge-Lock® Low Profile Door Rails are ideal for architects, glass contractors, and commercial storefront projects that require
