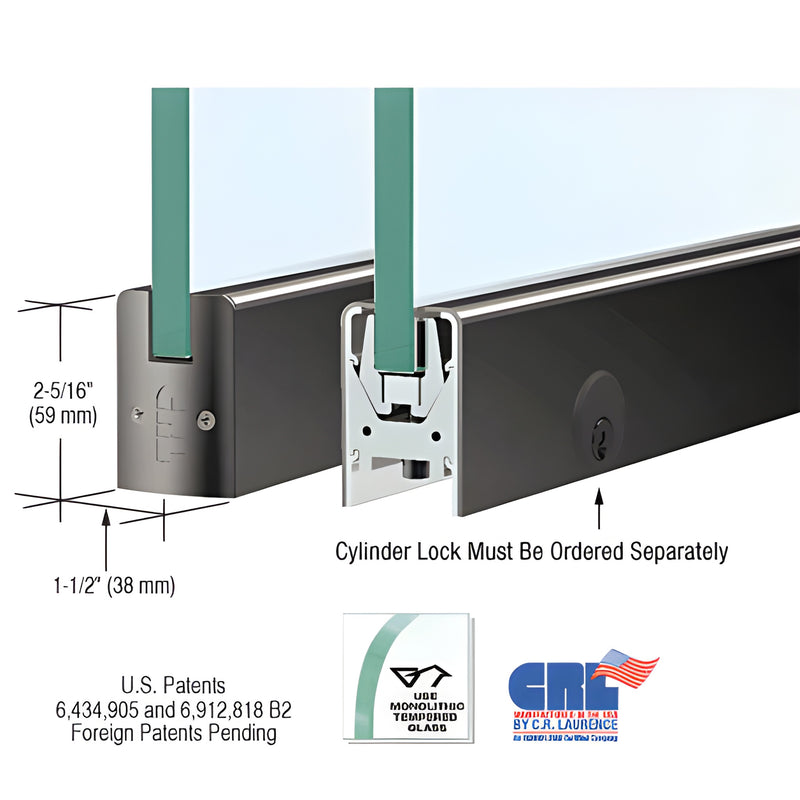

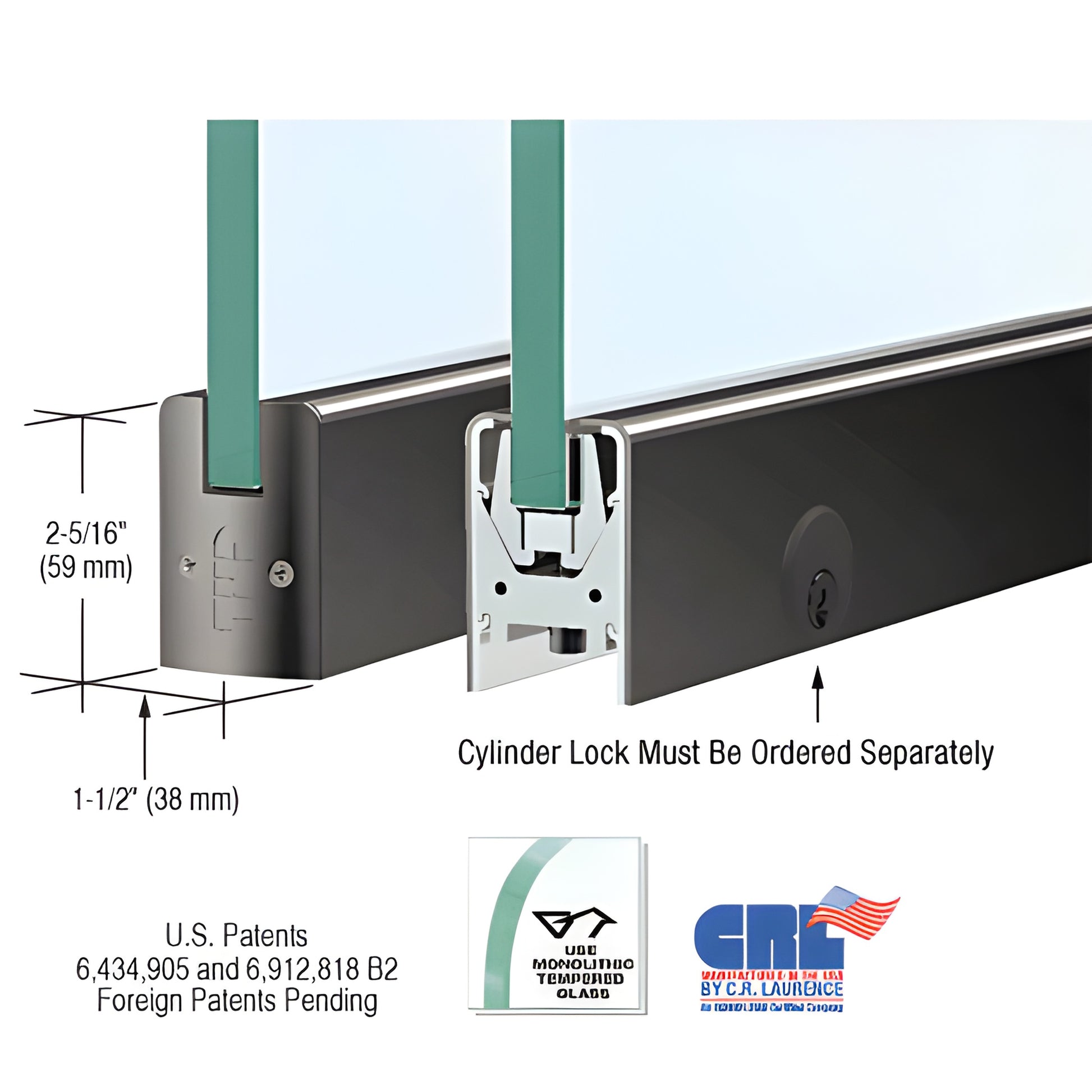

8 in Black Low-Profile Square DRS Patch Rail w/ Lock for 3/8 Glass

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2SBL38PL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System. Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install for frameless glass doors, including low profile storefront and interior glass door applications.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides secure glass attachment and the fastest installation time in its class; experienced installers can prepare a door in under ten minutes. Rails ship fabricated with end caps installed and include an adjustable door alignment slide that accepts door arms or pivots (not included). The adjustable alignment allows ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door—ideal for out-of-square openings.

Access to adjustments is simple: remove the end cap to reveal three socket head cap bolts—the center bolt locks the slide, and the outer bolts allow the 1/8" (3 mm) in/out adjustment. The low-profile slide enables pivot placement other than the American Standard setback, supporting customization for vertical misalignment.

Other Wedge-Lock® advantages:

• Models accept 3/8" to 3/4" (10–19 mm) glass where applicable
• Rigid single-component housing resists shifting and long-term misalignment
• No need to remove internal components before installation
• Durable glass securing pads built for extreme environments

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet site-specific requirements.

Finishes & technical support: CRL Wedge-Lock® Door Rails are available in standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails are supplied with the standard Kwik-Adjust™ pivot alignment system. Closer arms and floor or overhead pivots are ordered separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
• End caps are included in stock door rail lengths; specify door rail length (including end
