Blumcraft® Entice® CH Series Entrance System
Buy More, Save More!
| Product quantity | Discount |
|---|---|
| Buy 3 | 2% off |
| Buy 5 | 4% off |
| Buy 10 | 6% off |
| Buy 15 | 8% off |
| Buy 20 | 10% off |
Overview
| SKU | ENT100 |
|---|---|
| Pack Size | 1 |
| Maximum Door Height | 120 in. (3048 mm) |
| Series | Entice® |
| System Depth | 2-1/2 |
| Vertical Stiles | Ultra-Narrow 1-1/8" |
Description
Product Details
- Ultra-narrow 1-1/8” vertical stiles and 2-1/2” system depth
- Thermally broken framing with 1” insulating glass
- Provides monolithic, heavy-glass door visuals
- Meets ASHRAE 90.1-2016 air infiltration requirements
- U-factors as low as 0.43 for doors and 0.33 for storefront
- Proprietary clamping mechanism eliminates glass stops
- Handle hardware mounts directly onto insulating glass
- Optional integrated LED lighting system with Roscolux® film

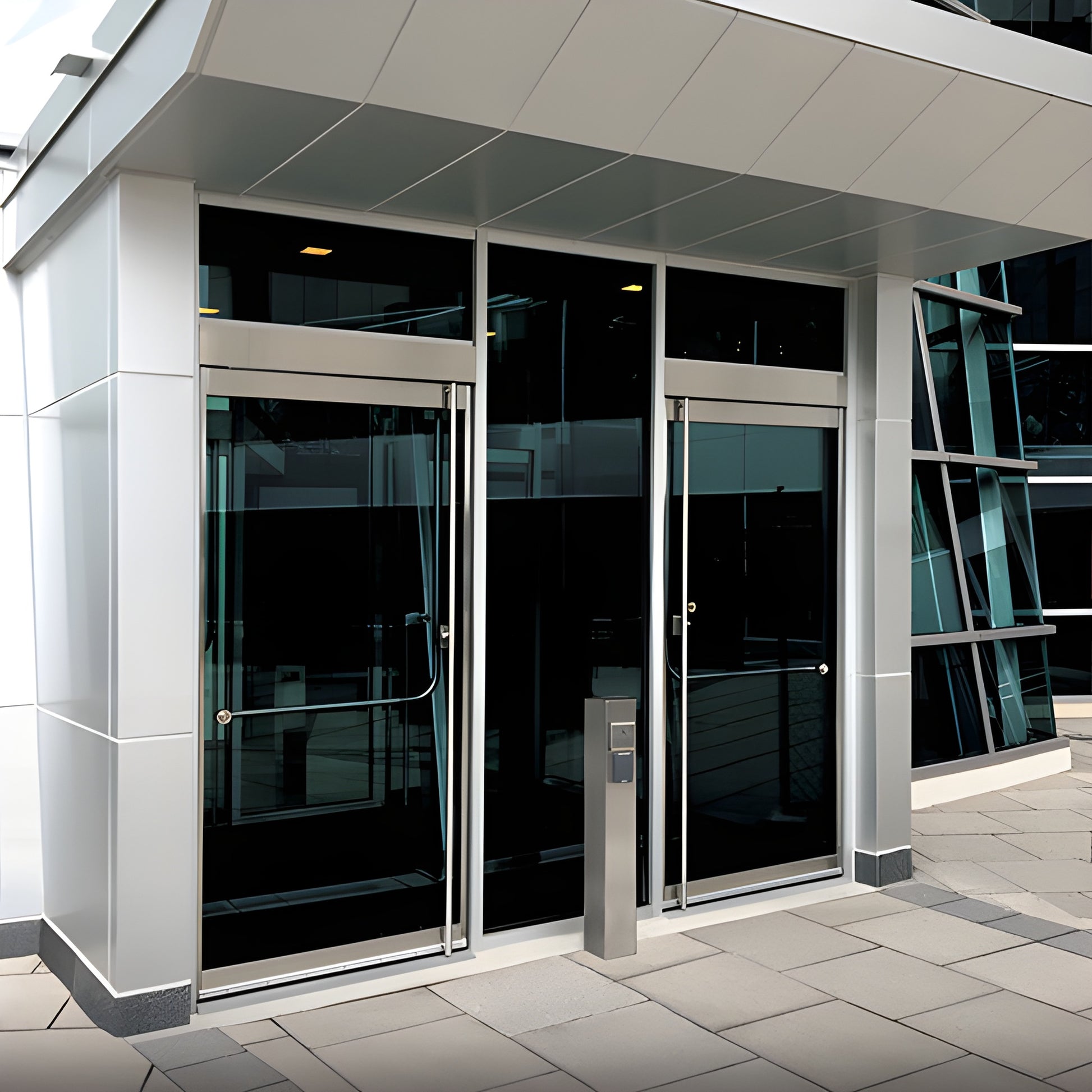

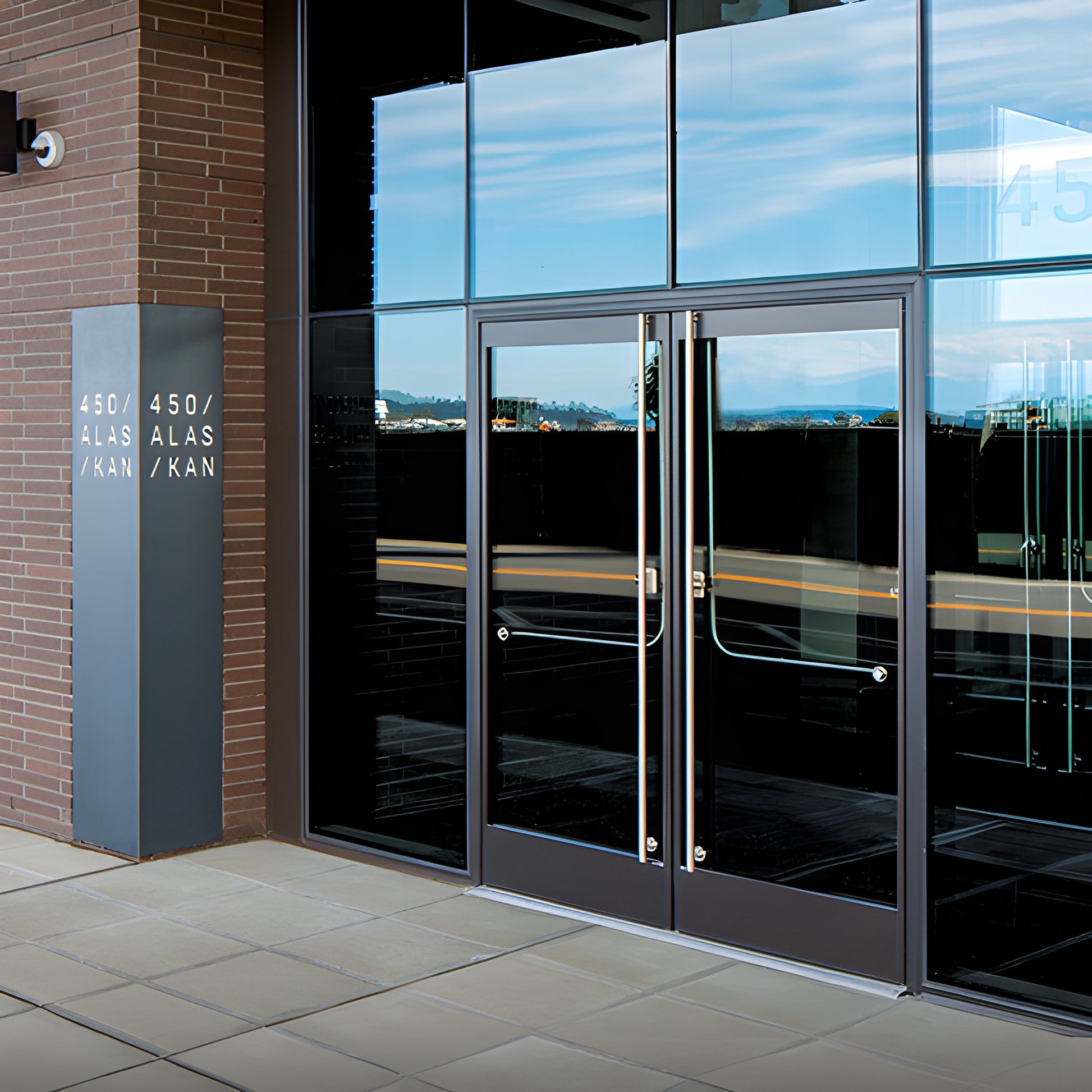

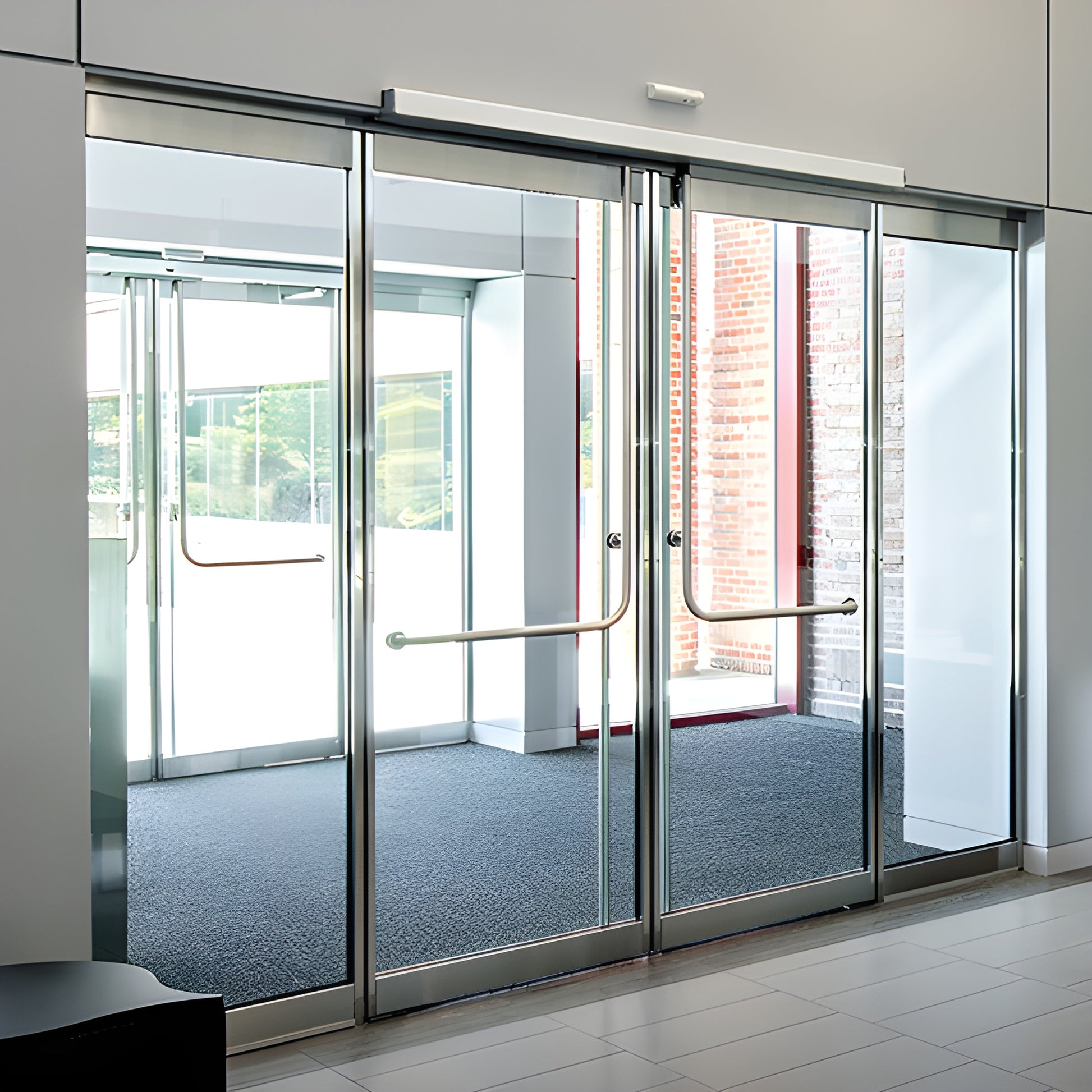

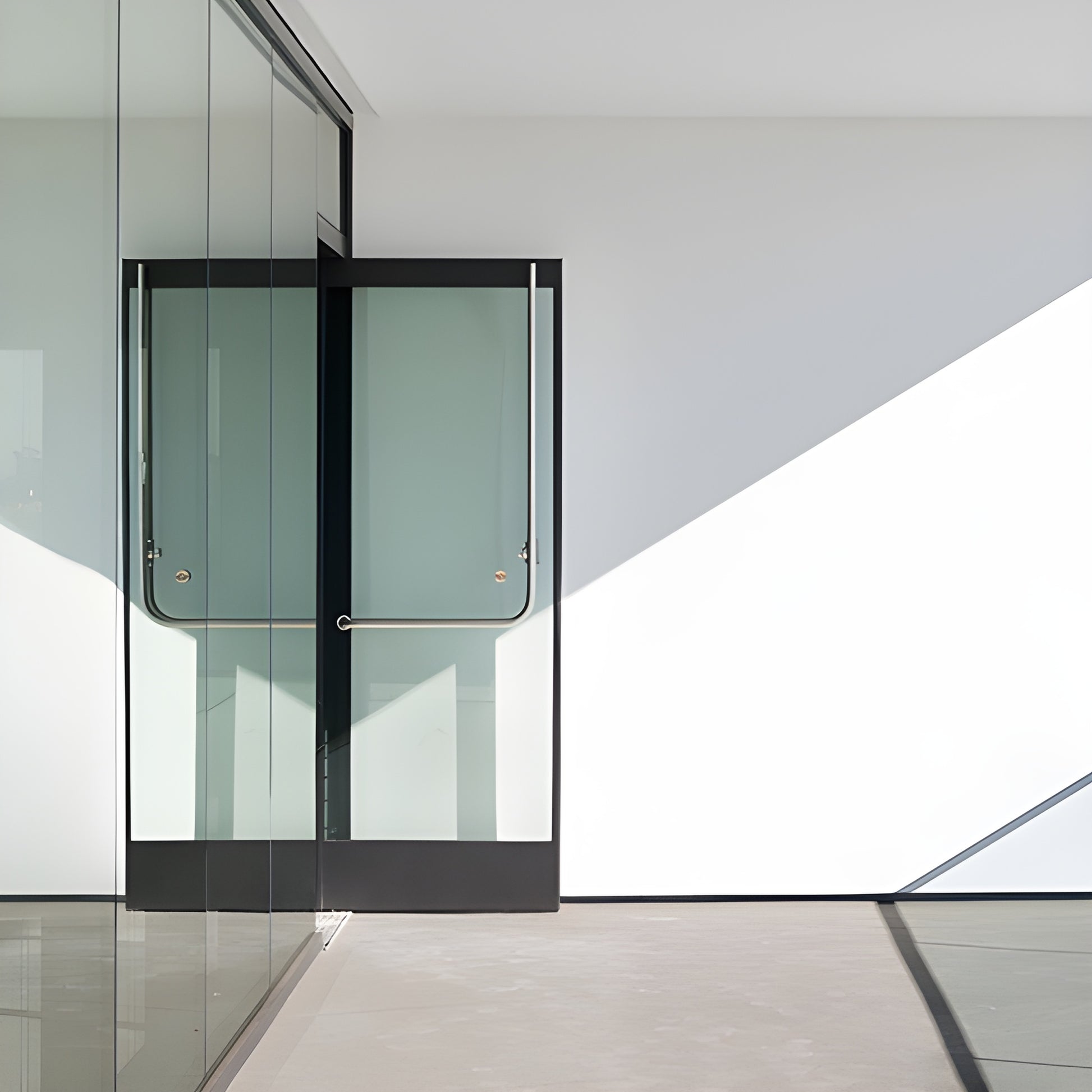

Entice® represents the next generation of glass entrances. The innovative system features distinct, ultra-narrow 1-1/8” vertical stiles that produce clean glass spans and striking all-glass visuals. It also features thermally broken framing and 1” insulating glass that deliver U-factors as low as 0.43 to meet stringent energy codes. The result is a premium glass entrance system that doesn’t compromise aesthetics for performance.
A unique quality of the Entice® Series Entrance System is its ability to support tubular panic devices and other types of door handle hardware directly on 1” insulating glass units. This is achieved with precision-engineered through-glass fittings. The capability creates a floating-on-air aesthetic that enhances the system’s streamlined design.
Specifications
Technical Resources
Brochures & Literature
Installation Instructions
BIM Objects - rvt
BIM Objects - pdf
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
