Blumcraft Entice HP+ High-Performance Commercial Entrance System
Item# ENT200
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Bottom Rail Height
4 in. or 10 in. (102 mm or 254 mm)
Maximum Door Height
120 in. (3048 mm)
Maximum Door Width
48 in. (1219 mm)
System Depth
2-7/8 in. (73 mm)
Top Rail Height
4 in. (102 mm)
- Ultra-narrow 1-5/8” door stiles for minimalist sightlines and heavy-glass visuals
- Blumcraft® panic handles mount directly onto 1" insulating glass for streamlined glass-entry operation
- Premium cladding available in customizable finishes to match storefront design
- AAMA CW Performance Class rating for commercial storefront and glass entrance applications
- Thermally broken stiles, jambs, and threshold to reduce thermal transfer in a thermally broken storefront door system
- Full perimeter seal around doors for enhanced weather performance and air/water infiltration resistance
- Tested to 1,000,000 cycles for high-traffic commercial durability
- Continuous gear hinge (760 lb rated) for reliable support of heavy glass panels
- Design Pressure: 30 psf at 48" x 120" (1219 mm x 3048 mm)

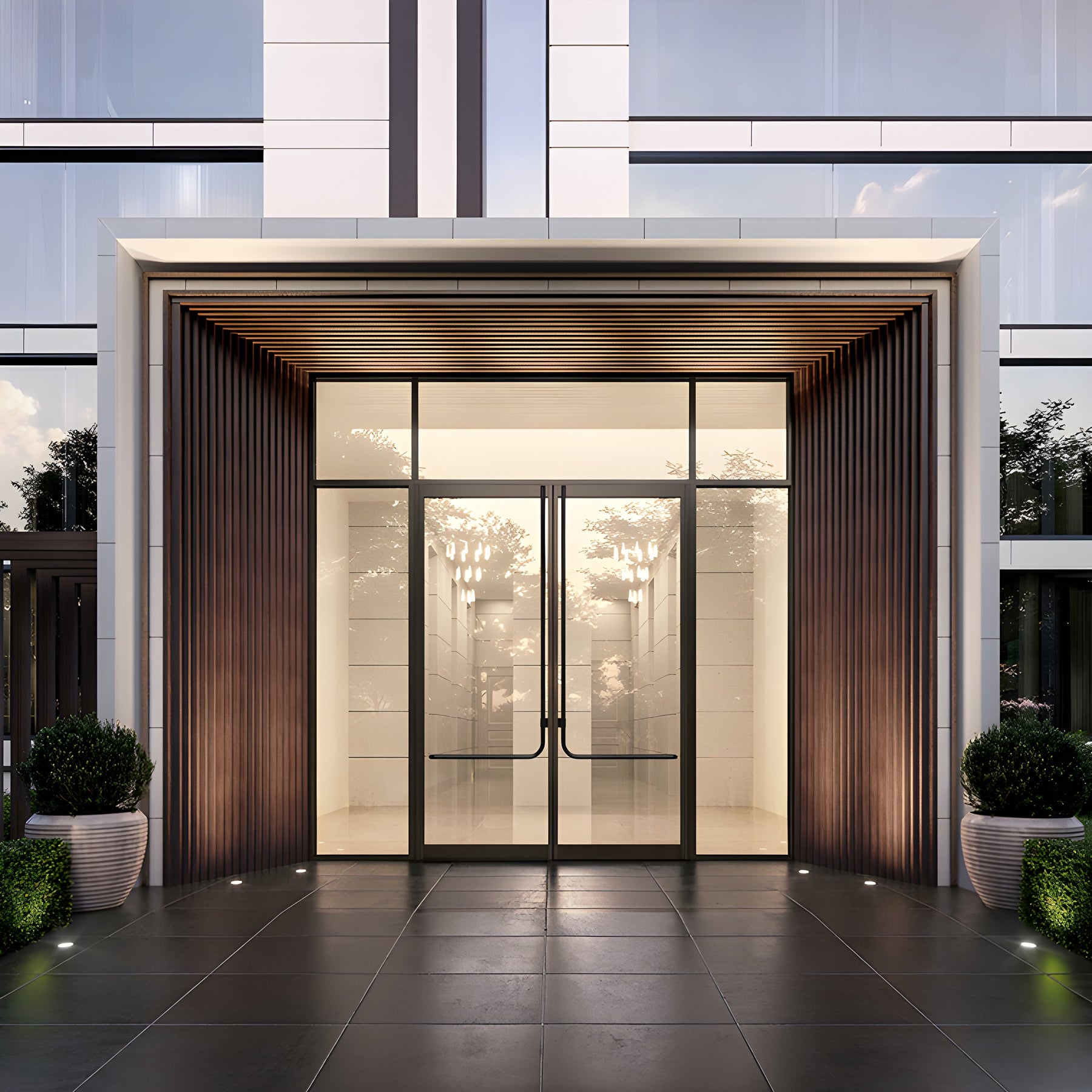

The evolution of glass entrances is here. The Entice HP+ Glass Entrance System introduces engineering advancements that surpass industry standards in aesthetics and performance. Monumental glass doors up to 10 feet tall and 4 feet wide can be specified with ultra-narrow 1-5/8” stiles to convey a grand entrance and heavy-glass visuals while maintaining a minimal frame look.
As an AAMA CW Performance Class system with 1” insulating glass and a full perimeter seal, Entice HP+ delivers year-round, all-weather performance—ideal for commercial storefronts, architectural glass entrances, and projects requiring thermally broken storefront door components.
SPECIFICATIONS:
Maximum Door Weight – 350 lb
Door Stile Width – 1-5/8 inches
Hinge – Continuous Gear Hinge (760 lb rated)
Glass – 1 inch insulating
Model/SKU: ENT200
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Specify Entice HP+ (SKU ENT200) for a next-generation glass entrance solution—contact sales to request drawings, finishes, and lead times.
