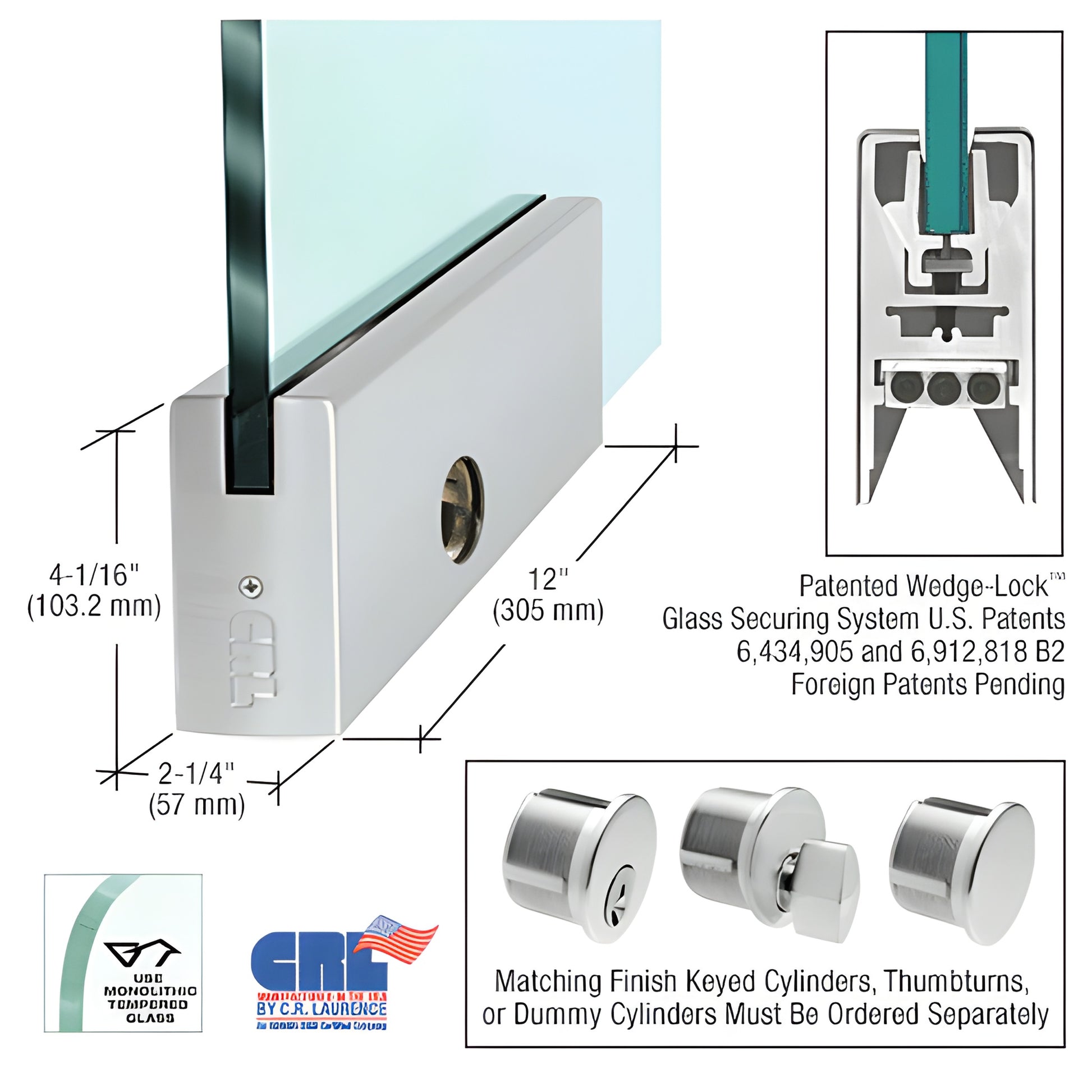

4" Sq Brushed Stainless DRS Door Rail w/ Lock for 3/4" Glass, 12in

• 12" (305 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System to create a high-strength, low-profile method for securing monolithic tempered glass in commercial doors. The system applies downward pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an internal angled groove to wedge the extrusions together, producing exceptional clamping force (over 900 lbs. in a 9" corner rail). This patented design delivers secure glass retention and industry-leading door-rail strength for full-length rails.

NOTE: Actual product height: 4-1/16" (103 mm).

The Wedge-Lock® system is engineered for fast installation and field adjustability. Rails ship fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach your door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable slide provides ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To fine-tune alignment after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide in or out by 1/8" (3.2 mm). The low-profile slide and pivots with slotted grooves allow nonstandard setback fabrication for vertically out-of-square openings.

Other key differentiators:

• Accepts 3/8" to 3/4" (10–19 mm) glass — ideal for commercial tempered glass doors
• Rigid, single-component aluminum housing that resists shift or loss of adjustment over time
• Internal components remain installed during mounting — no disassembly required
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard (arms and pivots ordered separately)
• Includes Kwik-Adjust™ Pivot
