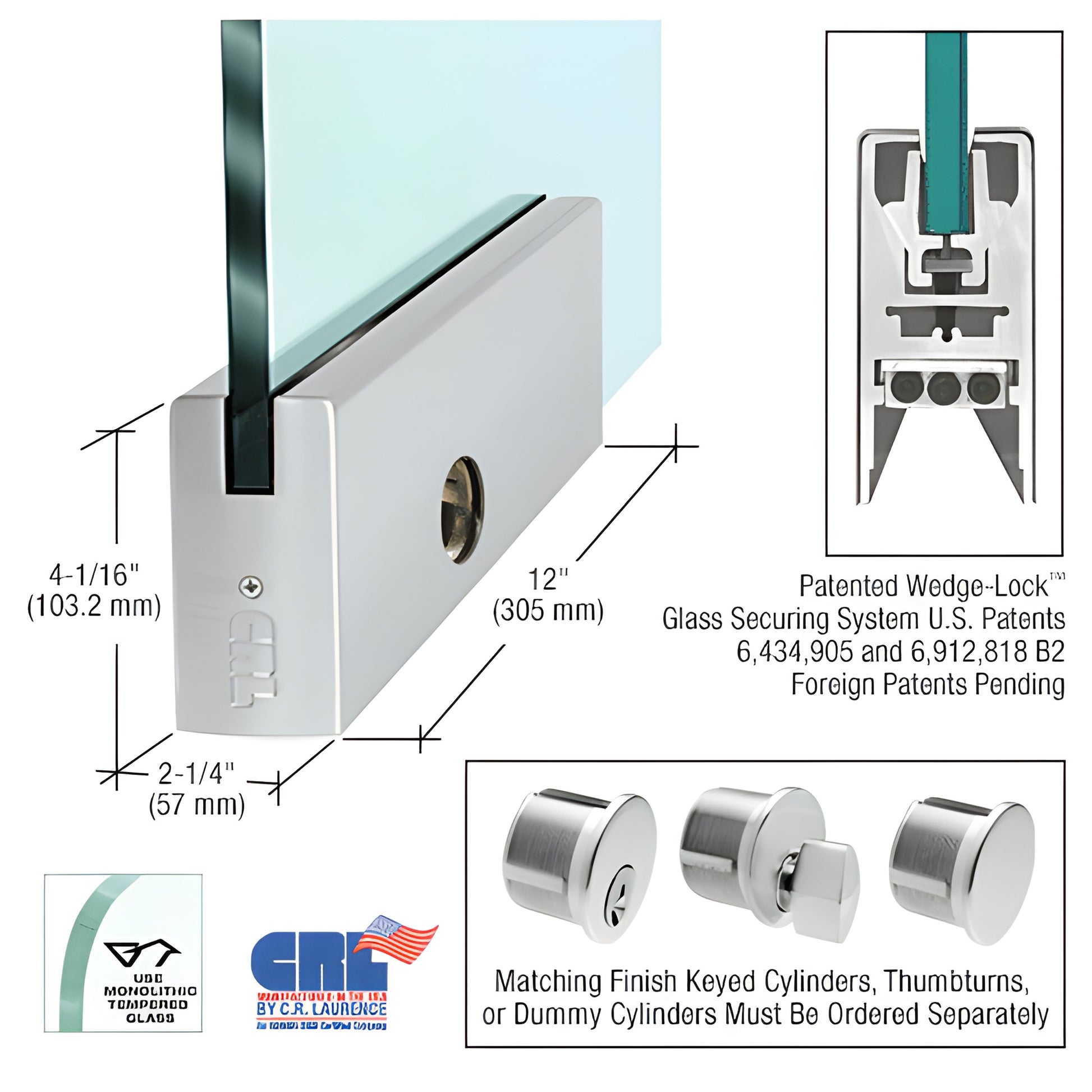

DRS Brushed Stainless 4" Sq Door Rail w Lock for 5/8in Glass, 12in

• 12" (305 mm) Length for 5/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SBS58PL

Our innovative CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge-action design applies bottom pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions engage the door rail’s wedge groove, pulling the pads together and generating extremely high glass-holding force (more than 900 lbs. in our 9" corner rail). This makes the system ideal for heavy-duty glass doors and commercial glass entrance applications.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key differentiators for commercial storefront and architectural glass doors:

• Fastest installation time of any door rail system — experienced installers can prepare a door in under ten minutes
• Comes fully fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System standard on top and bottom rails — ±1/8" (3.2 mm) adjustment without removing the door
• Rigid, single-component housing that won’t shift or fall out of adjustment over time
• Internal components remain in place during installation — no removal required
• Durable glass securing pads designed for longevity in extreme environments

Installation and adjustment: after rail installation attach door arm or pivot (not included) to the preassembled adjustable door alignment slide. To fine-tune alignment, remove the end cap to access three socket head cap bolts — center bolt secures the slide, outer bolts adjust the slide ±1/8" (3.2 mm). Low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) and supports fabrication for out-of-square openings.

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms, pivots, closer arms, floor or overhead pivots, keyed cylinders, and thumbturns must be ordered separately to meet job requirements.

Product options and support: available in several standard architectural finishes with custom finishes and widths quoted on request. Rail
