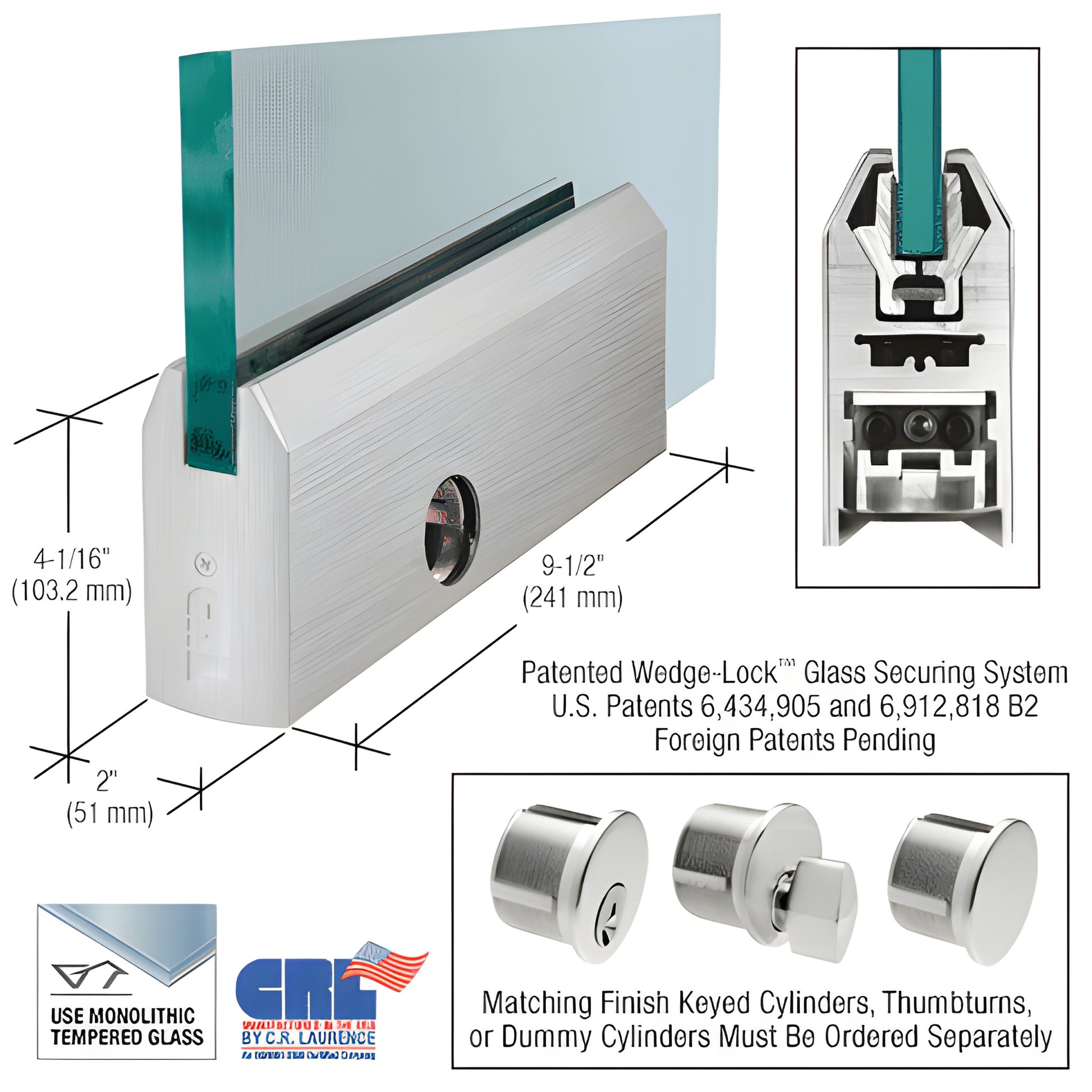

Brushed Stainless 4in Tapered Door Rail w/ Lock for 1/2in Glass 9.5in

• 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS12PL), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge-actuated system secures monolithic tempered glass using two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an internal wedge groove to create very high clamping force (over 900 lbs. in the 9" corner rail), providing exceptional glass retention for commercial storefronts and architectural glass doors.

NOTE: Actual product height: 4-1/16" (103 mm).

Key benefits and differentiators:

• Fast installation for commercial glass doors — experienced installers can prepare a door in under ten minutes.
• Completely fabricated, ready-to-install rails shipped with End Caps pre-installed.
• Built-in Adjustable Door Alignment System (standard top and bottom) allows 1/8" (3.2 mm) in/out adjustment without removing the door.
• Rigid, single-component housing resists shifting and maintains long-term alignment (not made of two halves).
• Internal components remain installed during mounting — no disassembly required for installation.
• Durable glass-securing pads engineered for longevity in extreme environments.
• Built-in Jamb Alignment Block standard — arms and pivots must be ordered separately to meet job requirements.

Installation and adjustment overview:
After rail installation, attach the door arm or pivot (not included) to the adjustable alignment slide. To fine-tune after hanging, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile adjustable slide accommodates pivots with slotted grooves and can be positioned off the American Standard Setback (2-3/4" / 69.8 mm) for vertically out-of-square
