Brushed Stainless 4" Tapered Door Rail w/ Lock for 3/4" Glass - 12"

• 12" (305 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

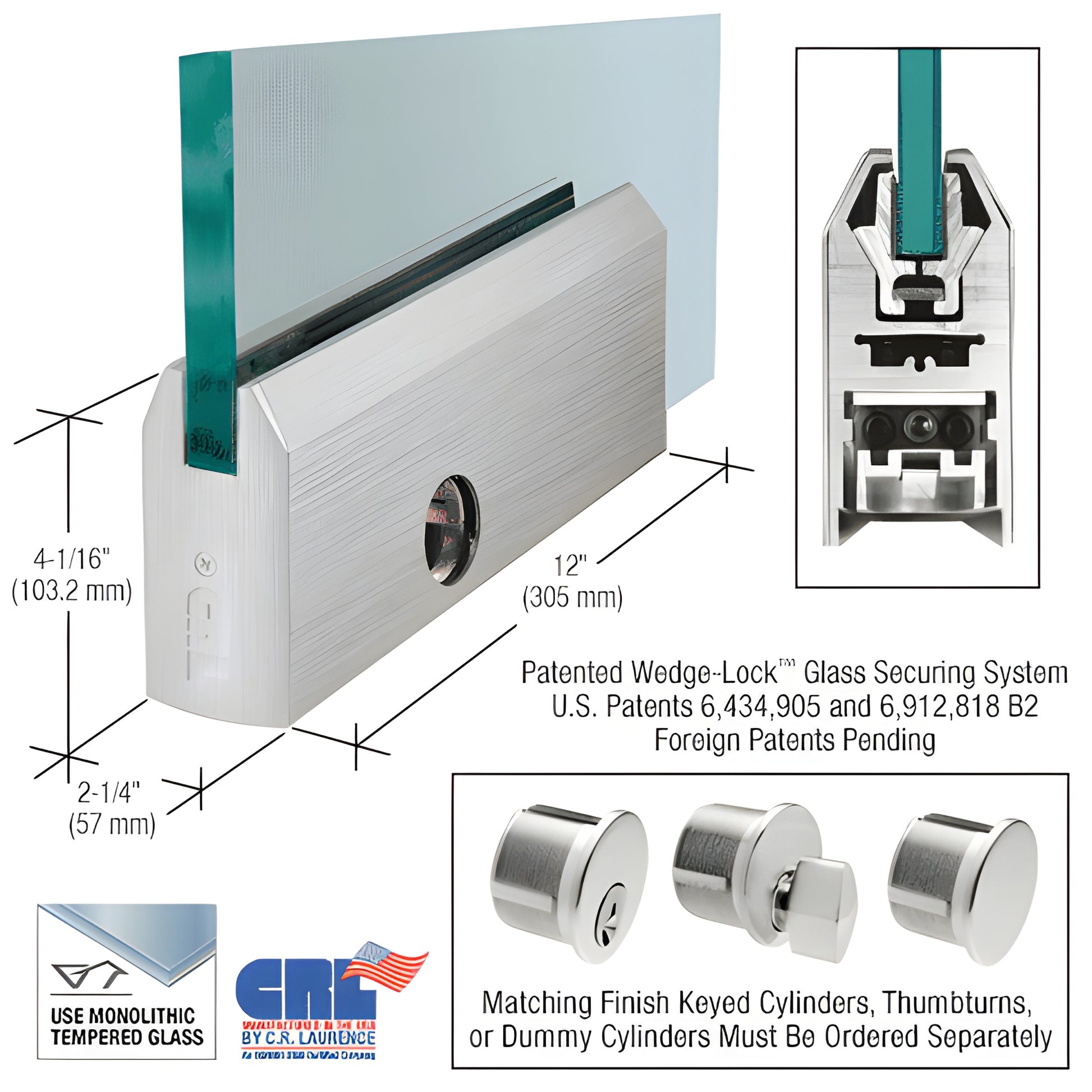

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS34PL) features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for frameless glass door installations and commercial glass entryways, the system secures glass by applying downward pressure with two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled wedges pull the extrusions together and compress the specially designed door-retaining gasket, generating very high clamping force for secure glass retention.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system provides faster installation than traditional door rails—experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails ship fully fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide pre-assembled in the rail.

The Adjustable Door Alignment System permits up to 1/8" (3.2 mm) in-or-out adjustment without removing the door and is standard on both top and bottom rails. To access adjustments, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" adjustment. The low-profile slide allows pivot placement other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shifting or loss of adjustment
• Internal components do not require removal prior to installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
