DRS Brushed Stainless Low-Profile Patch Rail Lock 8" 3/8" Glass

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2SBS38PL

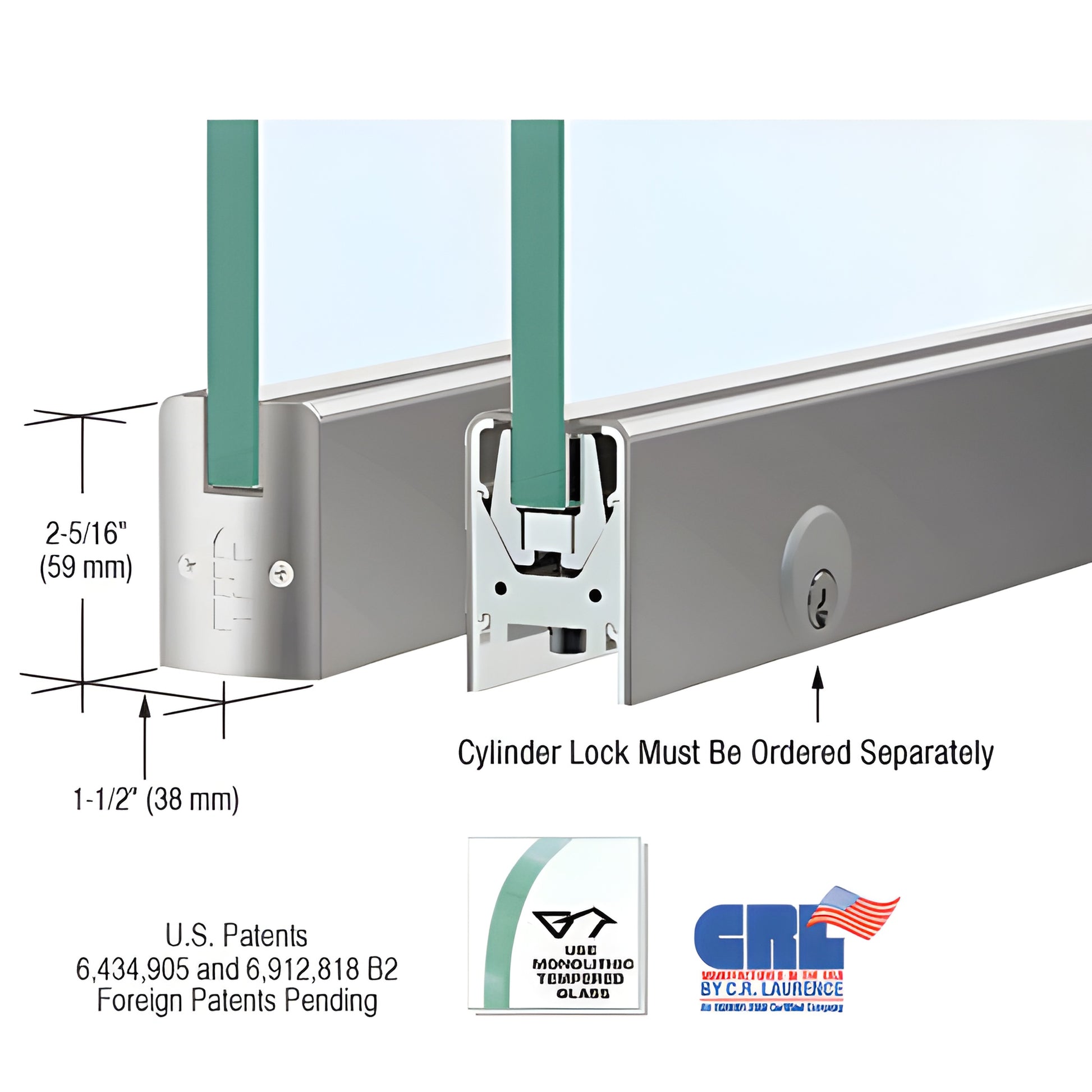

Our CRL Low Profile Door Rail measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). Low Profile Door Rails ship complete with End Caps, installation instructions, and adjustment wrenches—ready to install for frameless and patch door applications using 3/8" glass.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers fast, reliable installation for low profile glass door rails—experienced installers can prepare a door in under ten minutes. Rails come fully fabricated with end caps installed; attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows 1/8" (3 mm) in/out adjustment without removing the door on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm). The low-profile slide lets pivots with slotted grooves be positioned other than the American Standard setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass in available models
• Rigid, single-component housing that resists shifting and loss of adjustment
• Internal components remain assembled—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails feature a built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

Finishes: available in several standard architectural finishes; custom finishes and widths quoted upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
