8" Brushed Stainless Low-Profile Door Patch Rail w/ Lock for 3/8" Glass

• 8" (203 mm) length for 3/8" (10 mm) glass
• Designed for monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2TBS38PL

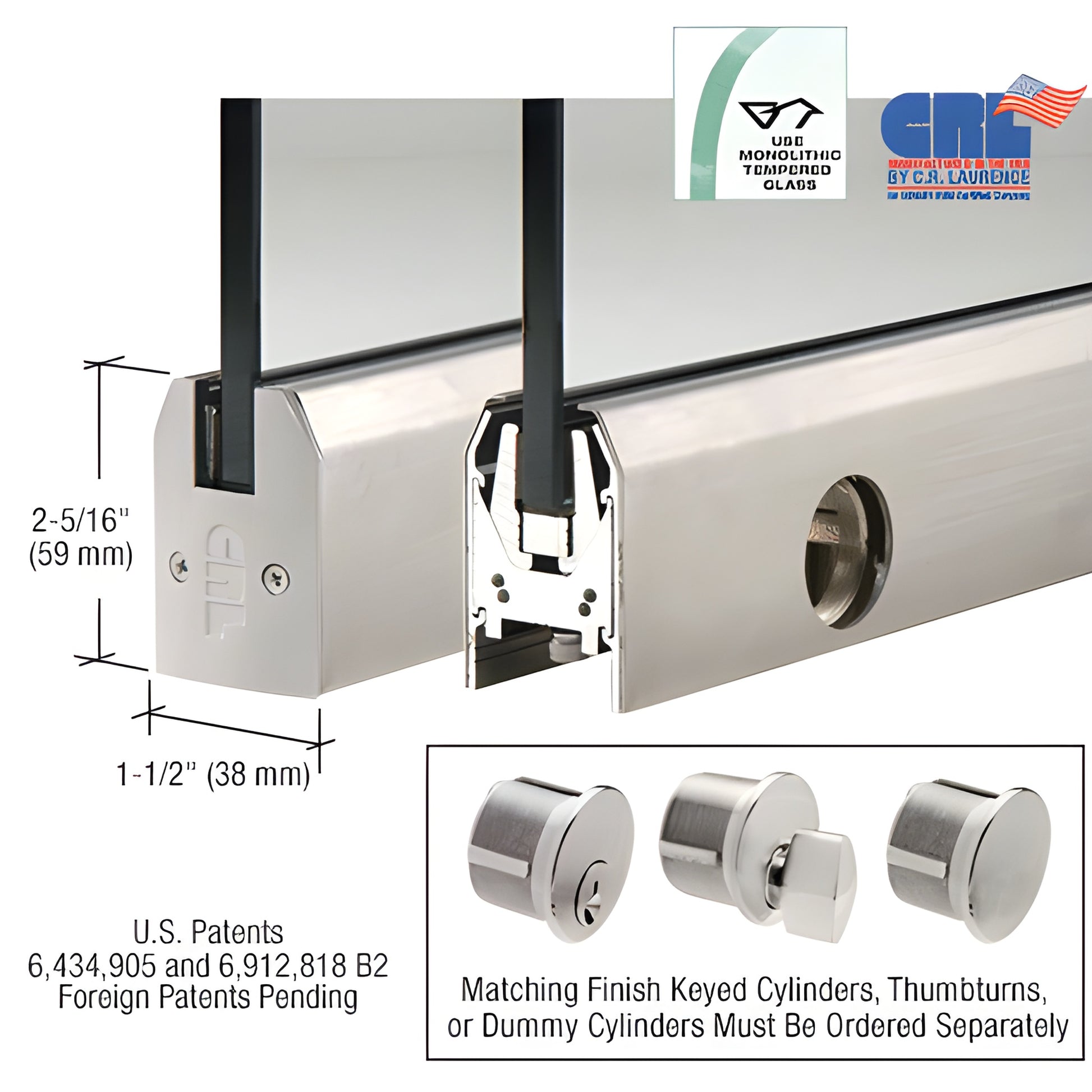

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides secure attachment and the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated with the adjustable door alignment slide installed; attach door arm or pivot (not included) after rail installation. The adjustable alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door—ideal for vertically out-of-square openings.

Access adjustments by removing the End Cap to reveal three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide enables pivot placement other than the American Standard setback.

Other product highlights: models to accept 3/8" to 3/4" (10 to 19 mm) glass; rigid single-component housing that resists shifting; no need to remove internal components before installation; durable glass-securing pads for extreme environments. All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately.

Rails are available in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots sold separately.
• Models with locks are supplied with the lock mechanism installed; matching keyed cylinders or thumbturns must be ordered separately.
