Brushed Stainless Tapered DRS Patch Rail, No Lock, 3/8" Glass, 8"

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

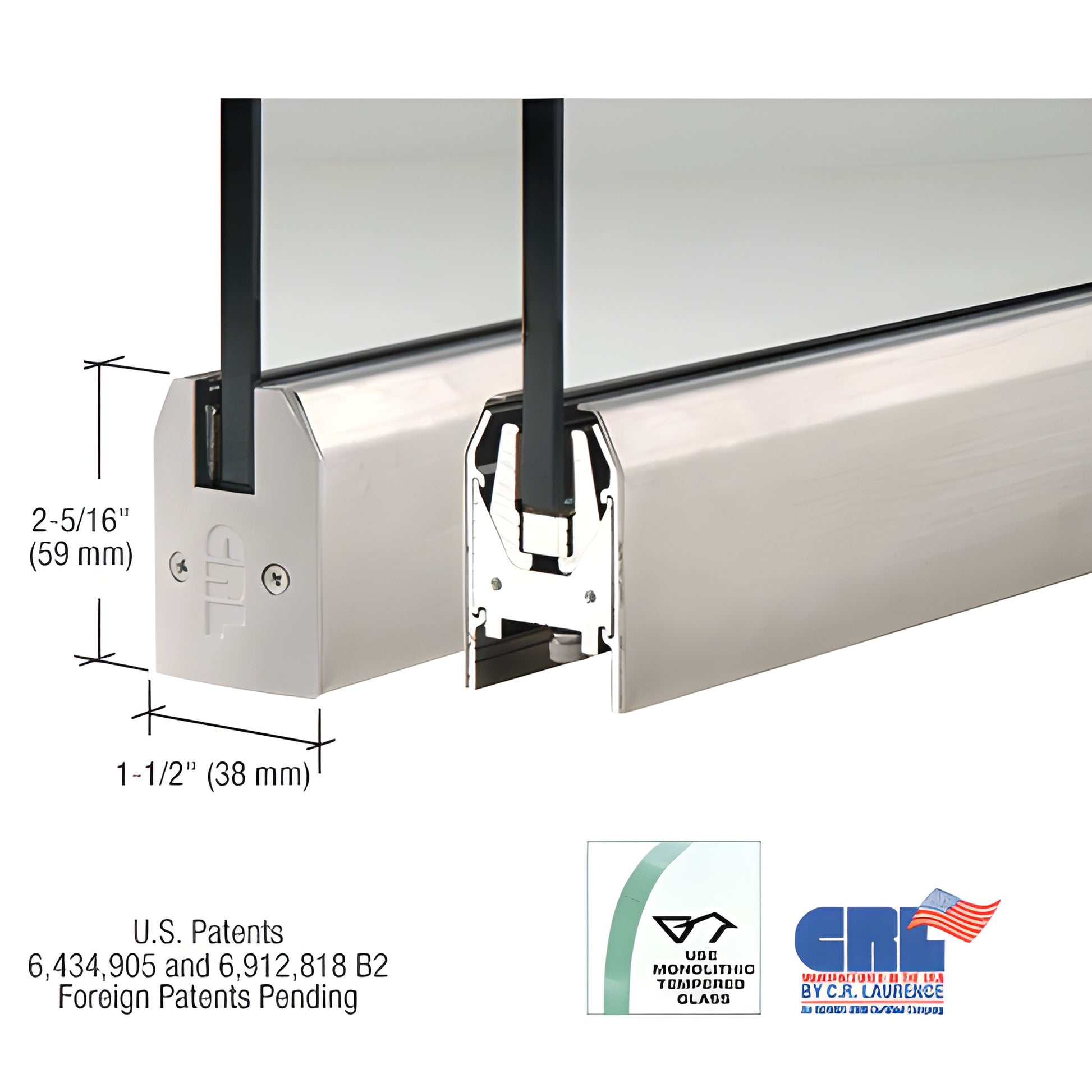

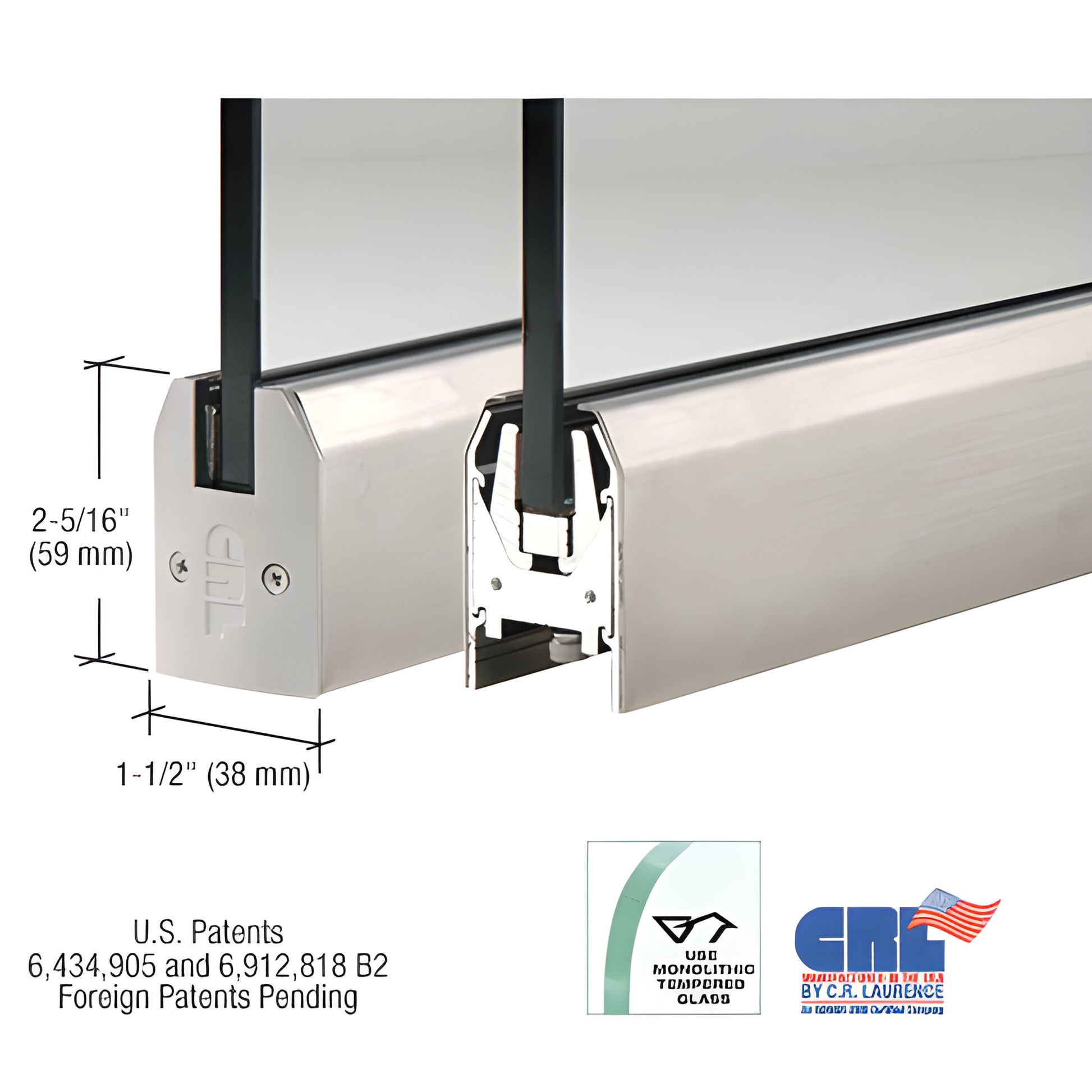

Our CRL Low Profile Door Rail (SKU DR2TBS38P) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers a secure attachment plus industry-leading installation speed — experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with end caps installed; after rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System allows 1/8" (3 mm) in/out adjustment without removing the door and is standard on both top and bottom rails. To access adjustments after installation, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide and the two outer bolts provide the 1/8" adjustment. The low-profile slide also enables pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain assembled for faster installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales — e-mail.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns ordered separately.
• End caps included in stock door rail lengths; specify door rail length (
