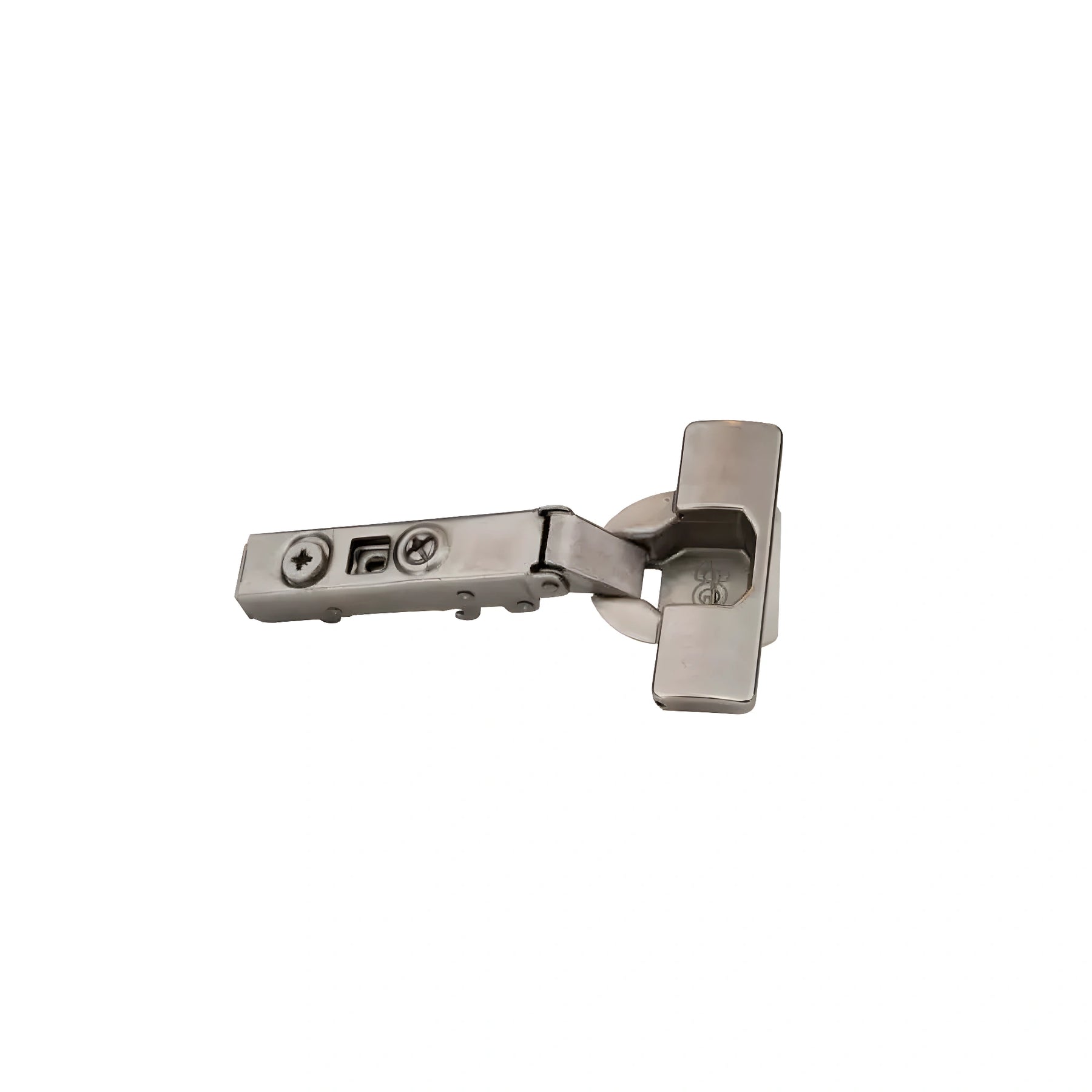

CGS 110 Degree Clip Cushion Quick Mount Hinge, 110 Degree, Clip Cushion Hinge, Full Overlay, Quick Mount

Product Details

• Type: Cushion-close, concealed hinge
• Mounting Style: Face frame or frameless (with appropriate plate)
• Opening Angle: 110°
• Material: Heavy-duty steel
• Finish: Nickel-plated (corrosion resistant)
• Overlay Options: ½” overlay (other sizes available)
• Cup Diameter: 35 mm (standard European hinge cup size)
• Cup Depth: 11.5–12 mm
• Adjustment: 3-way (side-to-side, height, and depth)
• Closing Mechanism: Integrated cushion close damper for soft, quiet closing
• Door Thickness Compatibility: 14 mm – 22 mm (typical range)
• Mounting Plate: Clip-on design for quick installation and removal
• Cycle Testing: Exceeds 50,000 open/close cycles
• 110° Opening Angle – Provides wide access for everyday cabinet use.
• Cushion-Close Cushion Technology – Eliminates slamming with smooth, quiet closing.
• Concealed Design – Hidden inside cabinetry for a clean, modern look.
• Clip-On Mounting – Easy installation and quick removal without tools.
• Durable Steel Construction – Built for long-lasting reliability.
• Nickel-Plated Finish – Corrosion-resistant for kitchens, bathrooms, and high-moisture areas.
• Standard 35 mm Hinge Cup – Industry-compatible size for easy replacement or upgrades.
• Three-Way Adjustment – Allows precise alignment (side-to-side, height, and depth).
• Supports Various Door Thicknesses – Typically 14 mm – 22 mm.
• Cycle-Tested for Durability – Exceeds 50,000 open/close cycles.
• Versatile Application – Suitable for residential, commercial, and custom cabinetry.
• Kitchen Cabinet Doors
• Bathroom Vanities
• Closet & Wardrobe Doors
• Office Cabinetry & Storage Units
• Custom Cabinetry & Millwork
• Entertainment Centers & Media Units
• Laundry & Utility Room Cabinets
• Retail & Commercial Fixtures
• Hospitality & Multi-Unit Projects
• RV & Mobile Home Cabinetry
