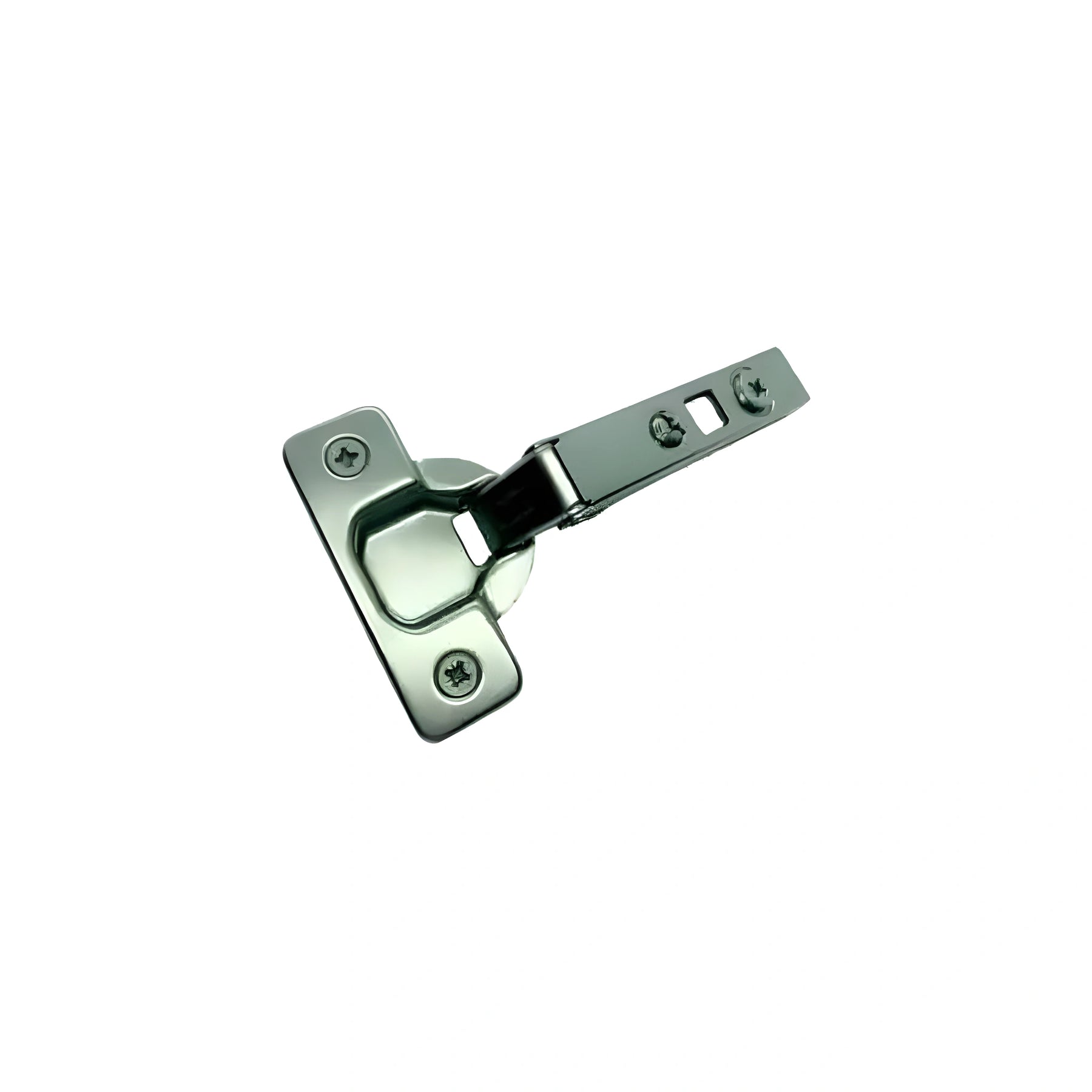

CGS 110 Degree Clip Free Swing Hinge - 110 Degree , Clip Free Swing Hinge, Inset, without dowels.

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Opening Angle	110°
Overlay	Inset
Fastening	Without dowels
Type	Concealed, free swing hinge (non-self closing, non-cushion close)
Mounting Style	Face frame or frameless (with compatible mounting plate)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11.5–12 mm
Adjustment	3-way (side-to-side, height, and depth)
Closing Mechanism	None (door moves freely, stays open at any angle)
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on design for easy installation and removal
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Concealed, free swing hinge (non-self closing, non-cushion close)
Mounting Style: Face frame or frameless (with compatible mounting plate)
Opening Angle: 110° (standard wide-opening access)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion and wear resistant)
Overlay Options: ½” overlay (other configurations available)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11.5–12 mm
Adjustment: 3-way (side-to-side, height, and depth)
Closing Mechanism: None (door moves freely, stays open at any angle)
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on design for easy installation and removal
Cycle Testing: Exceeds 50,000 open/close operations
110° Opening Angle – Provides wide access for everyday cabinet use.
Free Swing Function – No spring, soft-close, or self-close—door moves freely.
Concealed European-Style Hinge – Hidden from view for a seamless cabinet design.
Clip-On Mounting System – Allows quick, tool-free installation and removal.
Durable Steel Construction – Built for heavy use and long service life.
Nickel-Plated Finish – Corrosion-resistant for kitchens, bathrooms, and utility spaces.
Standard 35 mm Hinge Cup – Universal compatibility with most cabinets.
3-Way Adjustability – Enables precise door positioning.
Specialty Use Case – Ideal where self-closing or soft-close is not desired.
Reliable & Tested – Exceeds 50,000 open/close cycles for proven durability.
Specialty Kitchen Cabinets – Where free movement of doors is preferred.
Utility Cabinets – Allows doors to stay open at any angle during frequent access.
Workshop or Garage Cabinets – Keeps doors open for extended use without closing automatically.
Custom Cabinetry & Millwork – For designs where controlled free movement is required.
Office Storage Units – Ideal for cabinetry where doors must remain open during work.
Medical & Laboratory Cabinets – Useful in environments where constant access is needed.
Retail & Display Fixtures – Doors can remain open without spring resistance.
Hospitality Projects – Cabinets designed for staff or service access.
RV & Mobile Home Cabinetry – Select applications where free swing is beneficial.
