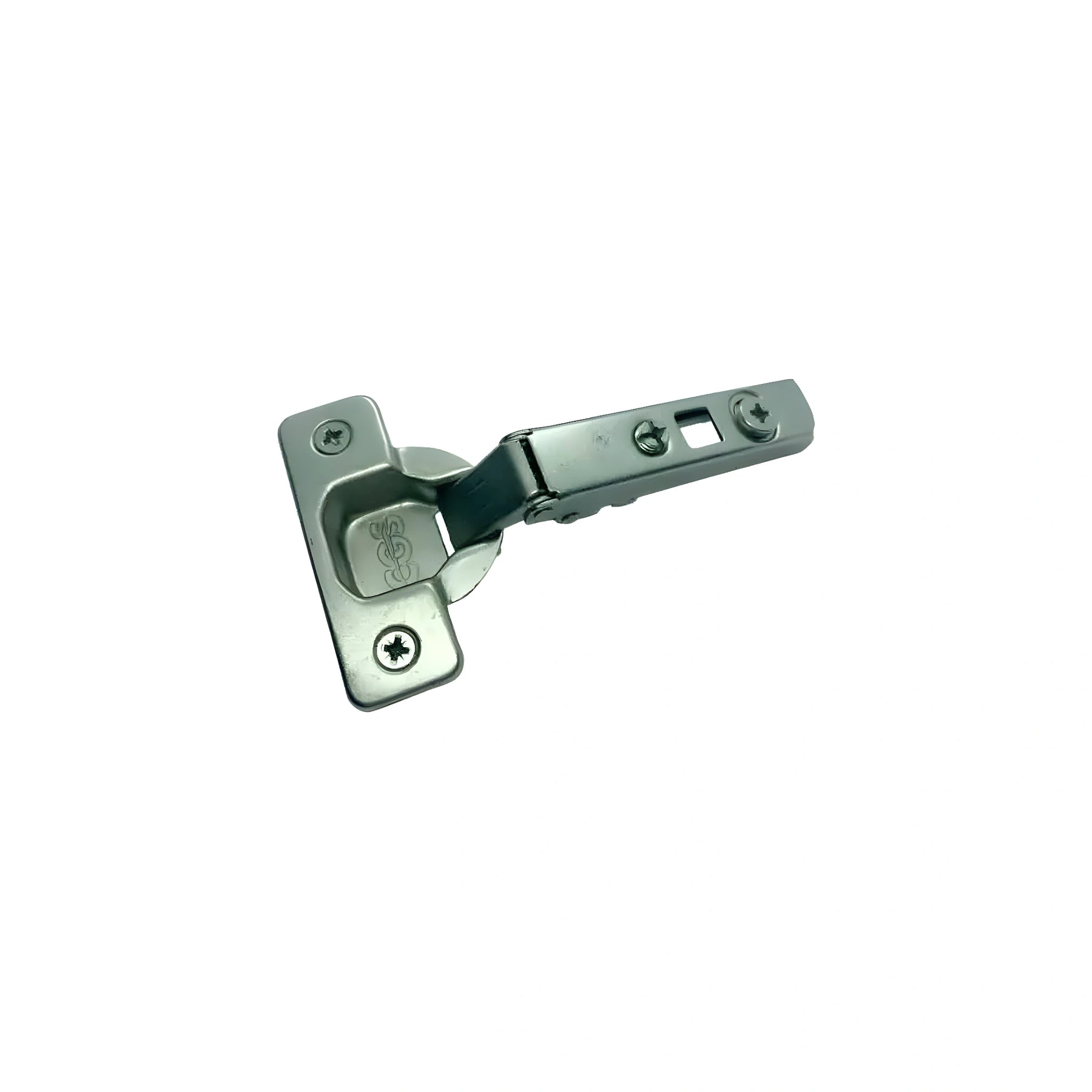

CGS 110 Degree Clip Self Closing Hinge - 110 Degree , Clip Self Closing Hinge, Half Overlay, without dowels.

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Opening Angle	110°
Overlay	Half Overlay
Fastening	Without dowels
Type	Concealed, self-closing hinge (non-soft close)
Mounting Style	Face frame or frameless (with compatible mounting plate)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11.5-12 mm
Adjustment	3-way (side-to-side, height, and depth)
Closing Mechanism	Self-closing spring action for reliable shut
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on system for easy installation and removal
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Concealed, self-closing hinge (non-soft close)
Mounting Style: Face frame or frameless (with compatible mounting plate)
Opening Angle: 110° (standard wide access for cabinets)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion and wear resistant)
Overlay Options: ½” overlay (other configurations available)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11.5-12 mm
Adjustment: 3-way (side-to-side, height, and depth)
Closing Mechanism: Self-closing spring action for reliable shut
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on system for easy installation and removal
Cycle Testing: Exceeds 50,000 open/close operations
110° Opening Angle – Provides wide cabinet door access.
Self-Closing Mechanism – Doors automatically pull shut for convenience.
Concealed European-Style Design – Hidden inside the cabinet for a sleek look.
Clip-On Mounting System – Enables fast installation and easy door removal.
Durable Steel Build – Designed for long-lasting use.
Nickel-Plated Finish – Corrosion-resistant, suitable for kitchens and bathrooms.
Standard 35 mm Cup Size – Industry standard for easy replacements and upgrades.
3-Way Adjustment – Allows precise door alignment after installation.
Smooth & Reliable Performance – Tested for consistent long-term function.
Cost-Effective Option – Provides reliable closing action without added soft-close hardware.
Kitchen Cabinets – Everyday use cabinetry with wide door openings.
Bathroom Vanities – Reliable self-closing in moisture-prone areas.
Laundry Room Cabinets – Withstands frequent use with consistent performance.
Closet & Wardrobe Units – Keeps doors securely shut.
Office Furniture & Storage – Adds dependable functionality to workstations and cabinets.
Entertainment Centers & Media Units – Maintains a clean, concealed look.
Custom Cabinetry & Millwork – Suitable for premium or standard cabinet builds.
Retail & Commercial Fixtures – Provides professional-grade hinge reliability.
Hospitality Projects – Hotels, apartments, and condos needing long-lasting hardware.
RV & Mobile Home Cabinetry – Ensures doors stay shut securely during travel.
