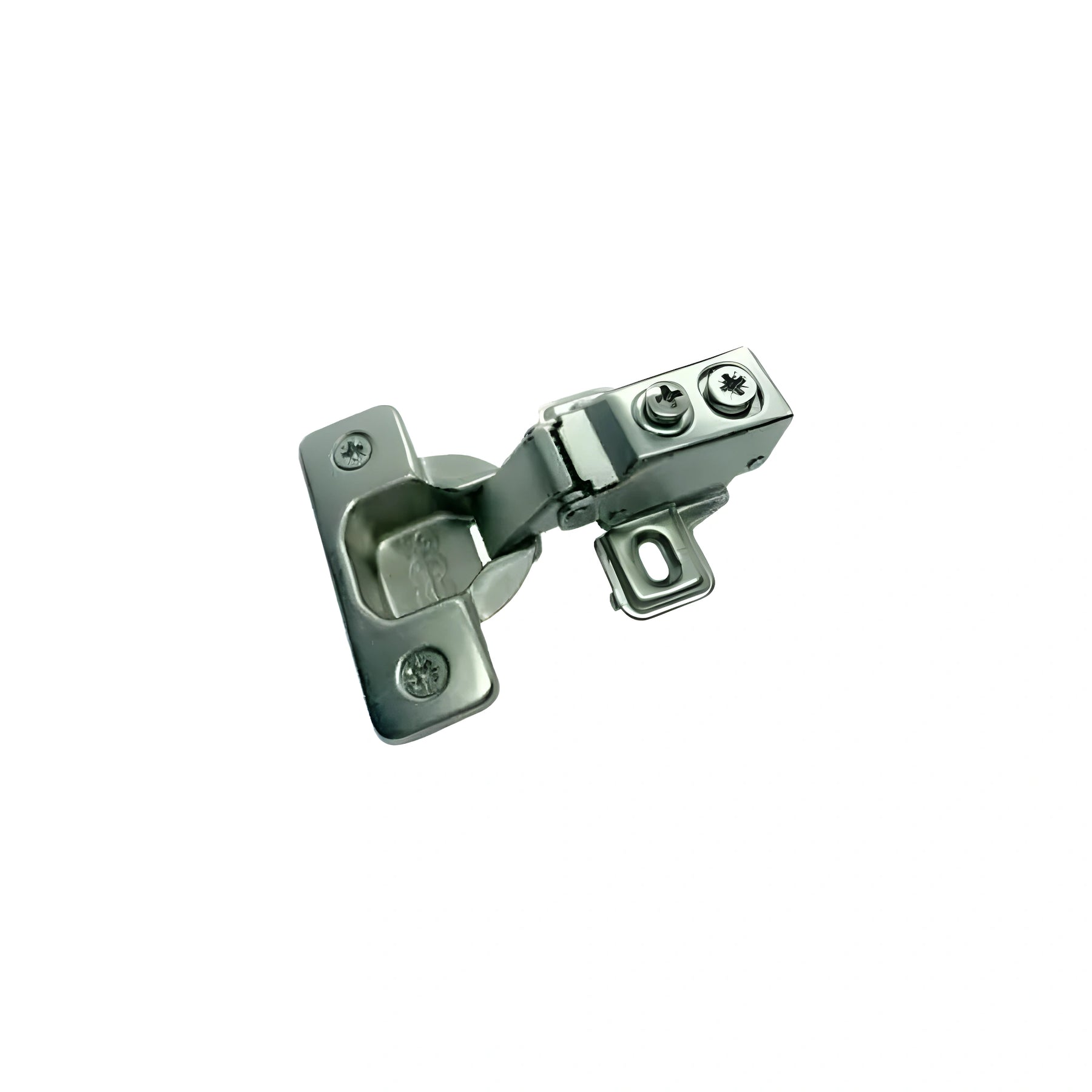

CGS 110 Degree Short Arm Face Frame Clip Cushion Hinge - 110 Degree, Short Arm, Clip Cushion Hinge, 1/2″ Overlay, without dowels.

Specifications

Material Heavy-duty steel
Finish Nickel-plated
Opening Angle 110°
Overlay 1/2″ Overlay
Fastening Without dowels
Arm Type Short Arm
Type Concealed, cushion-close hinge with short arm
Mounting Style Face frame (with clip-on mounting system)
Cup Diameter 35 mm (standard European hinge size)
Cup Depth 11 mm
Adjustment 3-way (side-to-side, depth, and height)
Closing Mechanism Integrated cushion close damper for soft, controlled closing
Door Thickness 14 mm – 22 mm (typical range)
Mounting Plate Clip-on system for fast installation and removal
Cycle Testing Exceeds 50,000 open/close operations

Details

  • Type: Concealed, cushion-close hinge with short arm
  • Mounting Style: Face frame (with clip-on mounting system)
  • Opening Angle: 110° (standard wide access)
  • Arm Type: Short arm, designed for face frame applications with tighter clearances
  • Material: Heavy-duty steel
  • Finish: Nickel-plated (corrosion and wear resistant)
  • Cup Diameter: 35 mm (standard European hinge size)
  • Cup Depth: 11 mm
  • Overlay Options: ½″ overlay (common for face frame use)
  • Adjustment: 3-way (side-to-side, depth, and height)
  • Closing Mechanism: Integrated cushion close damper for soft, controlled closing
  • Door Thickness Compatibility: 14 mm – 22 mm (typical range)
  • Mounting Plate: Clip-on system for fast installation and removal
  • Cycle Testing: Exceeds 50,000 open/close operations
  • 110° Wide Opening – Allows comfortable access to cabinet interiors.
  • Cushion-Close Cushion Technology – Quiet, controlled closing action prevents slamming.
  • Short Arm Design – Engineered for face frame applications with limited space.
  • Clip-On Mounting System – Simplifies installation and door removal without tools.
  • Durable Steel Construction – Built for strength and reliability.
  • Nickel-Plated Finish – Resists corrosion in kitchens, bathrooms, and utility rooms.
  • Standard 35 mm Cup – Industry standard for easy compatibility.
  • 3-Way Adjustability – Ensures precise alignment of cabinet doors.
  • Professional Finish – Concealed European-style hinge enhances cabinet aesthetics.
  • Quiet Operation – Premium soft-close performance ideal for modern cabinetry.
  • Kitchen Cabinets – Especially for framed cabinetry requiring short arm hinges.
  • Bathroom Vanities – Smooth and quiet in moisture-rich environments.
  • Closet & Wardrobe Cabinets – Provides wide access with controlled soft closing.
  • Laundry & Utility Cabinets – Handles heavy use with reliable performance.
  • Custom Cabinetry & Millwork – Perfect for premium face frame projects with tight clearances.
  • Office Furniture & Storage Units – Adds a professional, soft-close function.
  • Retail & Commercial Fixtures – Ensures quiet operation in customer-facing cabinetry.
  • Hospitality Installations – Ideal for hotels, apartments, and condos.
  • RV & Mobile Home Cabinetry – Compact short arm design suits limited cabinet space.
