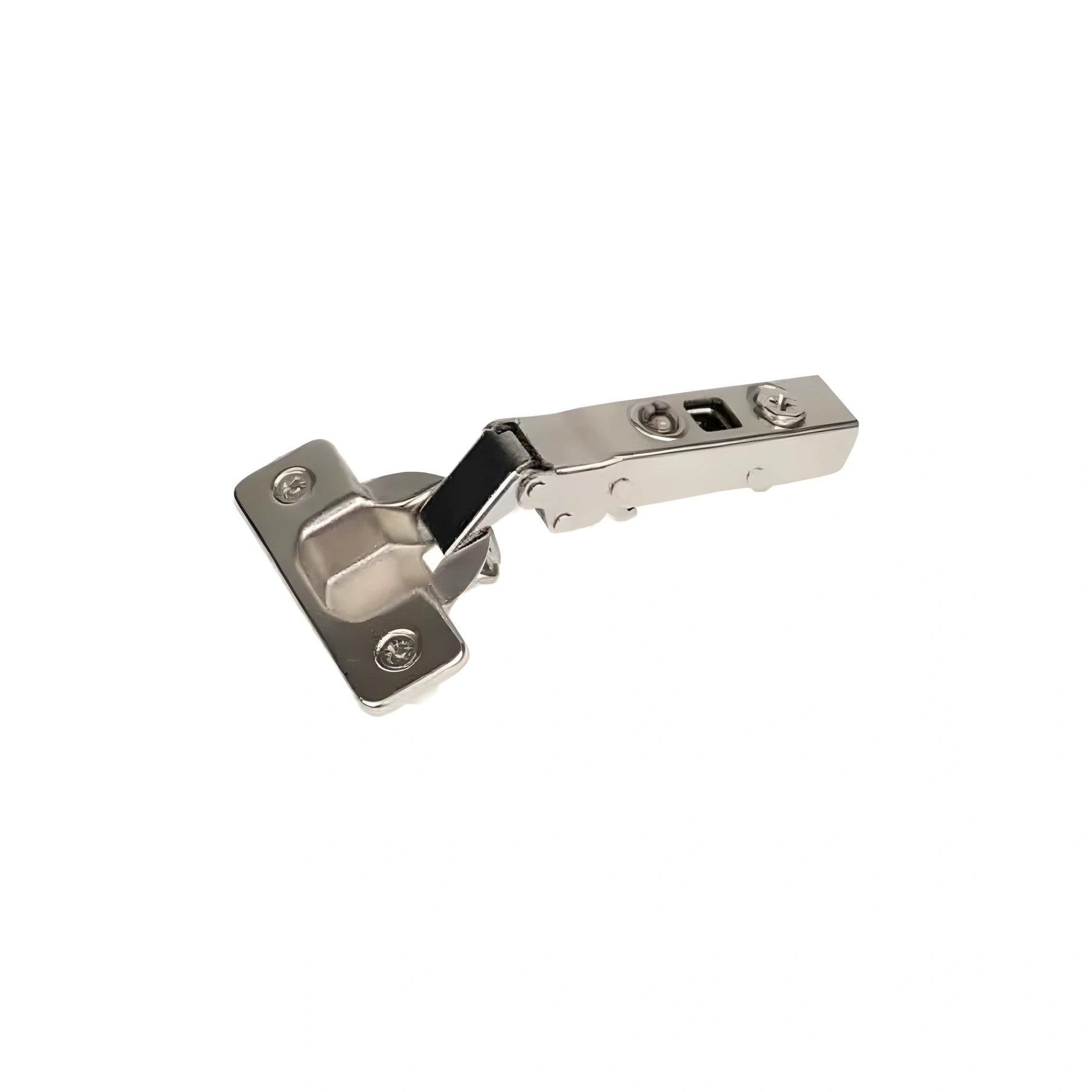

CGS 125 Degree Clip Self Closing Hinge - 125 Degree , Clip Self Closing Hinge, Full Overlay, without dowels.

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Opening Angle	125°
Overlay	Full Overlay
Fastening	Without dowels
Type	Concealed, self-closing hinge (non-cushion close)
Mounting Style	Face frame or frameless (with compatible mounting plate)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11.5-12 mm
Adjustment	3-way (side-to-side, height, and depth)
Closing Mechanism	Self-closing spring action for secure door shut
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on design for easy installation and removal
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Concealed, self-closing hinge (non-cushion close)
Mounting Style: Face frame or frameless (with compatible mounting plate)
Opening Angle: 125° (extra-wide for increased cabinet accessibility)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion and wear resistant)
Overlay Options: ½” overlay (other options available)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11.5-12 mm
Adjustment: 3-way (side-to-side, height, and depth)
Closing Mechanism: Self-closing spring action for secure door shut
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on design for easy installation and removal
Cycle Testing: Exceeds 50,000 open/close operations
125° Wide Opening Angle – Allows greater access to cabinet interiors.
Self-Closing Mechanism – Spring action pulls doors shut securely.
Concealed European Hinge Design – Provides a seamless, modern cabinet appearance.
Clip-On Mounting System – Quick and easy installation or removal without tools.
Durable Steel Construction – Built for long-lasting performance.
Nickel-Plated Finish – Corrosion-resistant and suitable for kitchens and bathrooms.
Standard 35 mm Cup Size – Industry standard for easy compatibility and replacements.
3-Way Adjustability – Fine-tune door position (depth, height, side-to-side).
Reliable & Tested Performance – Exceeds 50,000 open/close cycles.
Practical Alternative – Cost-effective hinge solution without soft-close hardware.
Kitchen Cabinets – Provides extra-wide opening for base and wall cabinets.
Bathroom Vanities – Durable hinge performance in moisture-rich spaces.
Closets & Wardrobes – Allows wider opening angles for clothing storage.
Pantry & Utility Cabinets – Improves accessibility to shelves and stored items.
Office Storage & Workstations – Wide-opening doors for desk and cabinet units.
Entertainment Centers & Media Units – Enables easy access to electronics and storage.
Custom Cabinetry & Millwork – Premium or standard builds needing wide door access.
Retail & Display Fixtures – Supports professional-grade cabinetry in high-use environments.
Hospitality Installations – Hotels, condos, and apartments requiring reliable hardware.
RV & Mobile Home Cabinetry – Secure hinge function during travel with extra opening clearance.
