Comtrad

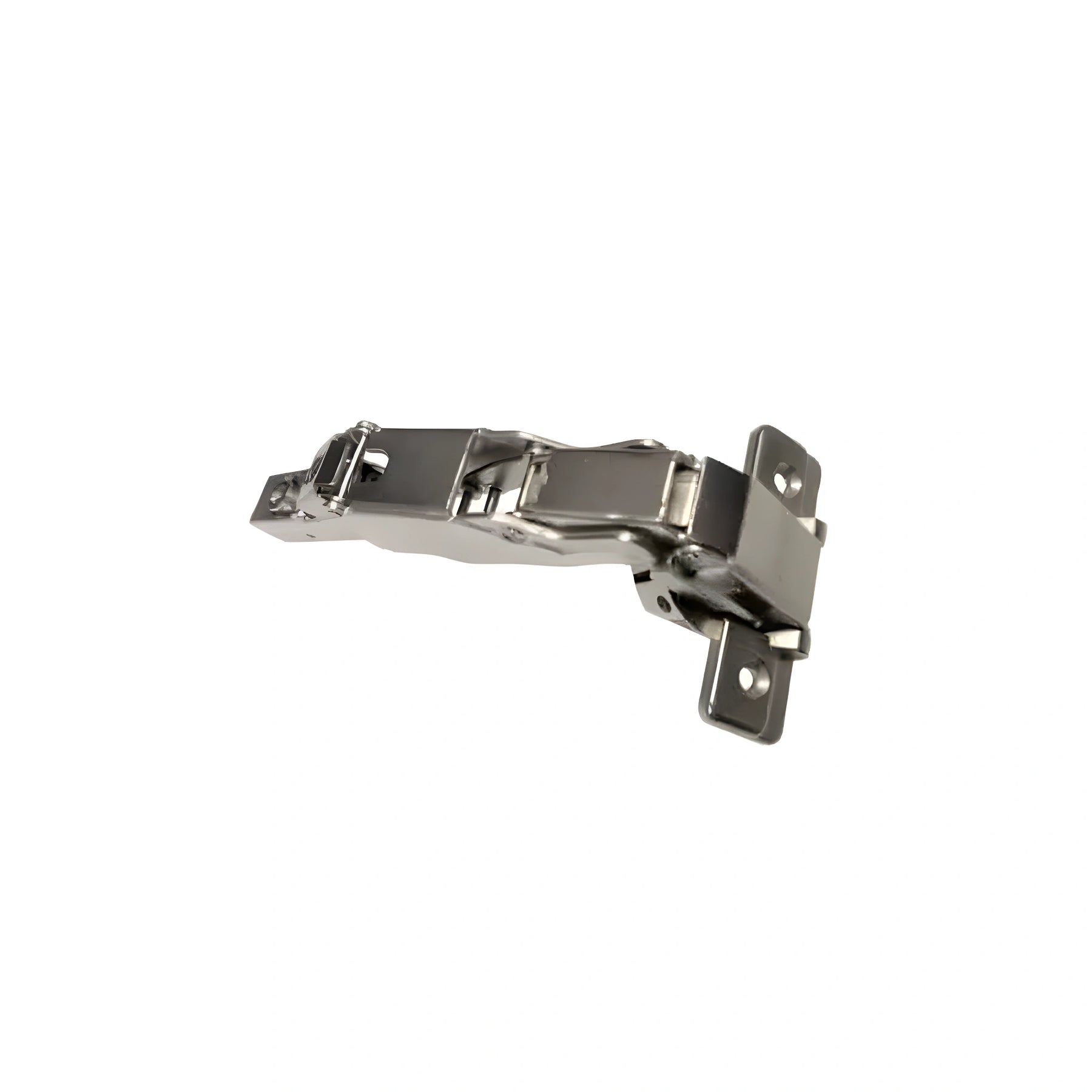

CGS 165 Degree Wide Angle Clip Cushion Hinge - 165 Degree, Wide Angle, Clip Cushion Hinge, Full Overlay, without dowels.
Specifications
| Material | Heavy-duty steel |
|---|---|
| Finish | Nickel-plated |
| Opening Angle | 165° |
| Overlay | Full Overlay |
| Fastening | Without dowels |
| Brands | CGS |
| Mounting Type | Frameless |
| Closing Method | Cushion-Close |
| Range of Motion | 165 deg |
| Frameless Overlay | Full Overlay |
| Door Mounting | Clip-On |
| Fastening Type | Wood Screw |
| Type | Concealed, cushion-close wide-angle hinge |
| Mounting Style | Face frame or frameless (with compatible mounting plate) |
| Cup Diameter | 35 mm (standard European hinge size) |
| Cup Depth | 11.5-12 mm |
| Adjustment | 3-way (side-to-side, height, and depth for perfect alignment) |
| Closing Mechanism | Integrated cushion close damper for controlled, quiet closing |
| Door Thickness | 14 mm – 22 mm (typical range) |
| Mounting Plate | Clip-on design for quick installation and easy removal |
| Cycle Testing | Exceeds 50,000 open/close operations |
Details
- Type: Concealed, cushion-close wide-angle hinge
- Mounting Style: Face frame or frameless (with compatible mounting plate)
- Opening Angle: 165° (maximum access, ideal for specialty cabinets)
- Material: Heavy-duty steel
- Finish: Nickel-plated (corrosion and wear resistant)
- Overlay Options: ½” overlay (other options available upon request)
- Cup Diameter: 35 mm (standard European hinge size)
- Cup Depth: 11.5-12 mm
- Adjustment: 3-way (side-to-side, height, and depth for perfect alignment)
- Closing Mechanism: Integrated cushion close damper for controlled, quiet closing
- Door Thickness Compatibility: 14 mm – 22 mm (typical range)
- Mounting Plate: Clip-on design for quick installation and easy removal
- Cycle Testing: Exceeds 50,000 open/close operations
- 165° Wide Opening Angle – Maximizes cabinet accessibility, ideal for specialty or corner units.
- Cushion-Close Cushion Technology – Smooth, quiet closing to prevent slamming.
- Concealed European-Style Design – Hidden from view for a clean, modern look.
- Clip-On Mounting System – Quick installation and easy door removal without tools.
- Heavy-Duty Steel Construction – Built for strength and durability.
- Nickel-Plated Finish – Corrosion-resistant and suitable for kitchens, bathrooms, and high-use areas.
- Standard 35 mm Hinge Cup – Industry standard for easy replacements or upgrades.
- 3-Way Adjustment – Fine-tunes alignment (depth, side-to-side, and height).
- Compatible with Various Door Thicknesses – Typically 14 mm – 22 mm.
- Cycle-Tested for Reliability – Exceeds 50,000 open/close operations.
- Corner Cabinets – Provides maximum swing for deep or angled storage.
- Pantry Units – Wide access to shelves for easier loading and organization.
- Closet & Wardrobe Systems – Accommodates larger doors with extra clearance.
- Laundry & Utility Cabinets – Ideal where wide doors and frequent use are common.
- Entertainment Centers & Media Units – Allows full opening for wiring and device access.
- Office Storage & Custom Millwork – Professional-grade hinge for premium furniture projects.
- Retail & Commercial Fixtures – Quiet, wide-opening hinge for display cabinetry.
- Hospitality Installations – Hotels, condos, and apartments where durability and accessibility matter.
- RV & Mobile Home Cabinetry – Wide opening paired with secure cushion-close function for travel use
