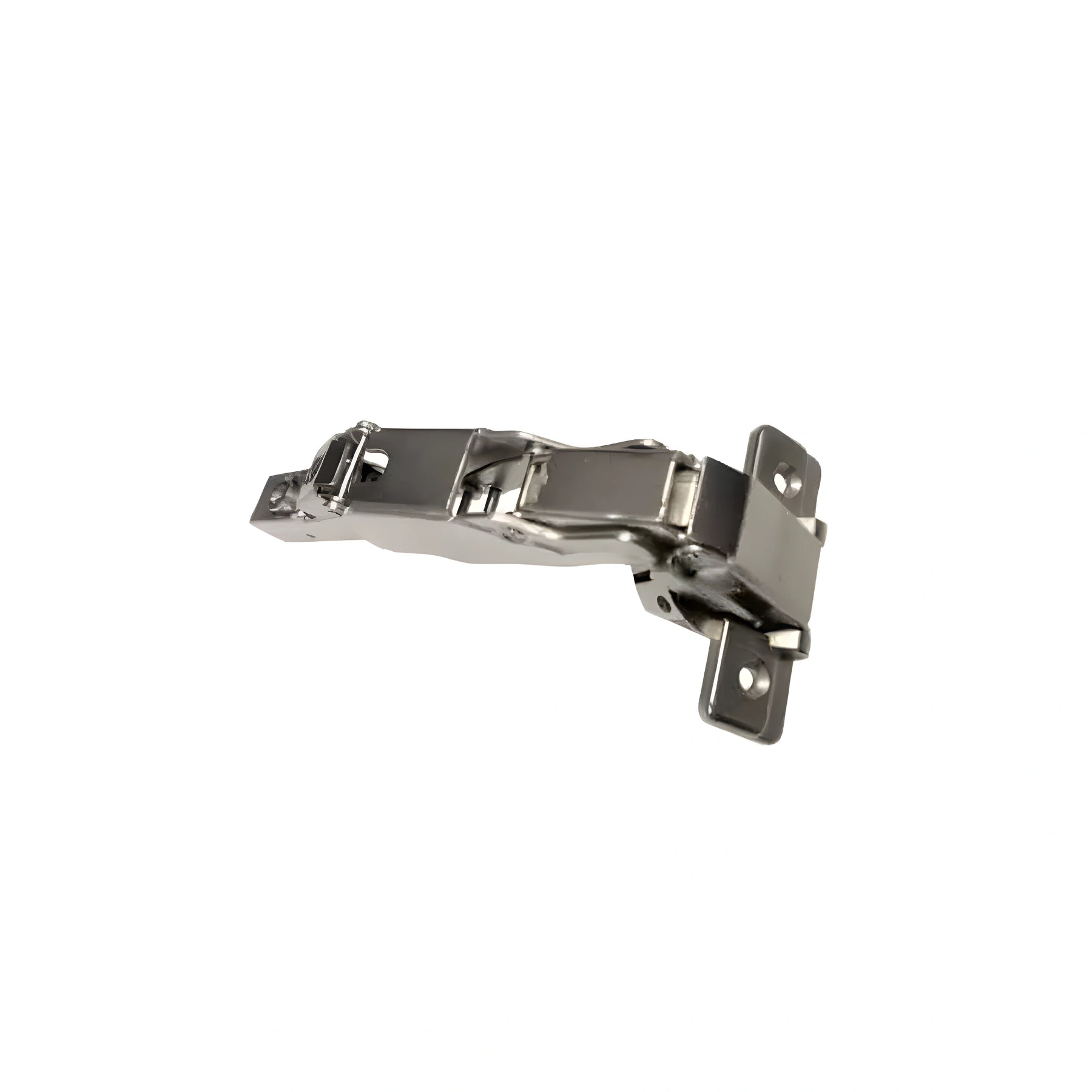

CGS 165 Degree Wide Angle Clip Self Closing Hinge, 165 Degree Wide Angle, Clip Self Closing, Full Overlay, with 8mm dowels

Product Details

• Type: Concealed, self-closing hinge (non-cushion close)
• Mounting Style: Face frame or frameless (with compatible mounting plate)
• Opening Angle: 165° (extra-wide, maximum access)
• Material: Heavy-duty steel
• Finish: Nickel-plated (corrosion and wear resistant)
• Overlay Options: ½” overlay (other options available)
• Cup Diameter: 35 mm (standard European hinge size)
• Cup Depth: 11.5–12 mm
• Adjustment: 3-way (side-to-side, height, and depth)
• Closing Mechanism: Self-closing spring action for secure closure
• Door Thickness Compatibility: 14 mm – 22 mm (typical range)
• Mounting Plate: Clip-on design for fast installation and removal
• Cycle Testing: Exceeds 50,000 open/close operations
• 165° Wide Opening Angle – Provides maximum cabinet accessibility.
• Self-Closing Mechanism – Automatically pulls doors shut for reliable closing.
• Concealed European Hinge – Hidden design creates a seamless, modern appearance.
• Clip-On Mounting System – Allows quick, tool-free installation and removal.
• Durable Steel Build – Designed for strength and long-term use.
• Nickel-Plated Finish – Corrosion-resistant, ideal for kitchens and bathrooms.
• Standard 35 mm Hinge Cup – Industry standard for compatibility and easy replacements.
• 3-Way Adjustability – Enables precise door alignment (height, depth, side-to-side).
• Smooth Operation – Wide swing with dependable self-closing action.
• Proven Reliability – Tested to exceed 50,000 open/close cycles.
• Kitchen Cabinets – Perfect for wide-angle pantry and corner cabinets.
• Bathroom Vanities – Provides maximum access in compact or angled layouts.
• Closets & Wardrobes – Allows larger doors to open fully for easier storage access.
• Utility & Laundry Cabinets – Wide swing ideal for bulky items and frequent use.
• Entertainment Centers & Media Units – Provides full access for electronics and storage.
• Custom Cabinetry & Millwork – Designed for projects requiring maximum door clearance.
• Retail & Display Fixtures – Enables wide opening angles for product access and display.
• Hospitality Installations – Hotels, condos, and apartments needing full-access cabinetry.
• RV & Mobile Home Cabinetry – Provides wide opening with secure self-closing action.
