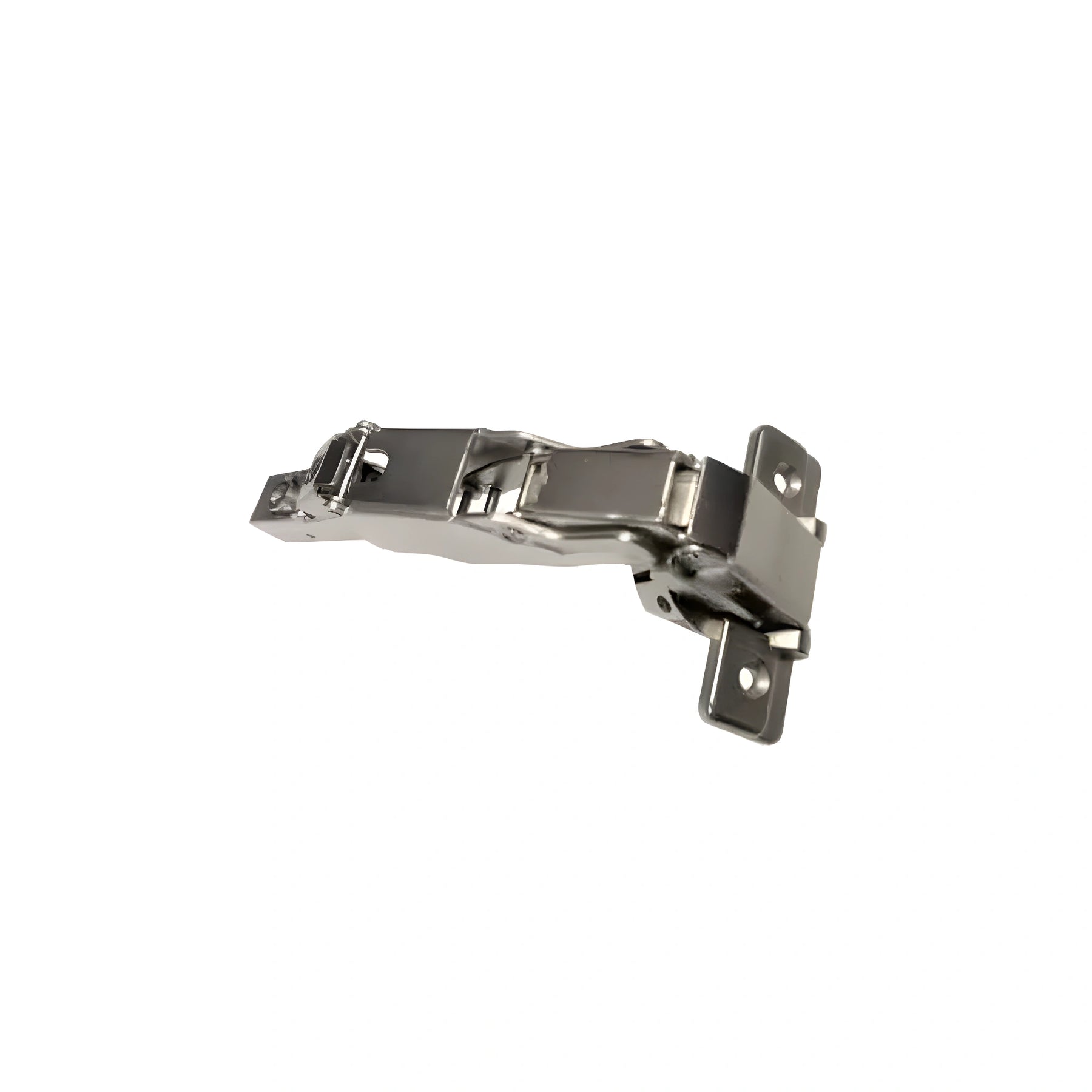

CGS 165 Degree Wide Angle Clip Self Closing Hinge - 165 Degree Wide Angle , Clip Self Closing, Full Overlay, without dowels.

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Opening Angle	165°
Overlay	Full Overlay
Fastening	Without dowels
Type	Concealed, self-closing hinge (non-cushion close)
Mounting Style	Face frame or frameless (with compatible mounting plate)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11.5–12 mm
Adjustment	3-way (side-to-side, height, and depth)
Closing Mechanism	Self-closing spring action for secure closure
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on design for fast installation and removal
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Concealed, self-closing hinge (non-cushion close)
Mounting Style: Face frame or frameless (with compatible mounting plate)
Opening Angle: 165° (extra-wide, maximum access)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion and wear resistant)
Overlay Options: ½” overlay (other options available)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11.5–12 mm
Adjustment: 3-way (side-to-side, height, and depth)
Closing Mechanism: Self-closing spring action for secure closure
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on design for fast installation and removal
Cycle Testing: Exceeds 50,000 open/close operations
165° Wide Opening Angle – Provides maximum cabinet accessibility.
Self-Closing Mechanism – Automatically pulls doors shut for reliable closing.
Concealed European Hinge – Hidden design creates a seamless, modern appearance.
Clip-On Mounting System – Allows quick, tool-free installation and removal.
Durable Steel Build – Designed for strength and long-term use.
Nickel-Plated Finish – Corrosion-resistant, ideal for kitchens and bathrooms.
Standard 35 mm Hinge Cup – Industry standard for compatibility and easy replacements.
3-Way Adjustability – Enables precise door alignment (height, depth, side-to-side).
Smooth Operation – Wide swing with dependable self-closing action.
Proven Reliability – Tested to exceed 50,000 open/close cycles.
Kitchen Cabinets – Perfect for wide-angle pantry and corner cabinets.
Bathroom Vanities – Provides maximum access in compact or angled layouts.
Closets & Wardrobes – Allows larger doors to open fully for easier storage access.
Utility & Laundry Cabinets – Wide swing ideal for bulky items and frequent use.
Entertainment Centers & Media Units – Provides full access for electronics and storage.
Custom Cabinetry & Millwork – Designed for projects requiring maximum door clearance.
Retail & Display Fixtures – Enables wide opening angles for product access and display.
Hospitality Installations – Hotels, condos, and apartments needing full-access cabinetry.
RV & Mobile Home Cabinetry – Provides wide opening with secure self-closing action.
