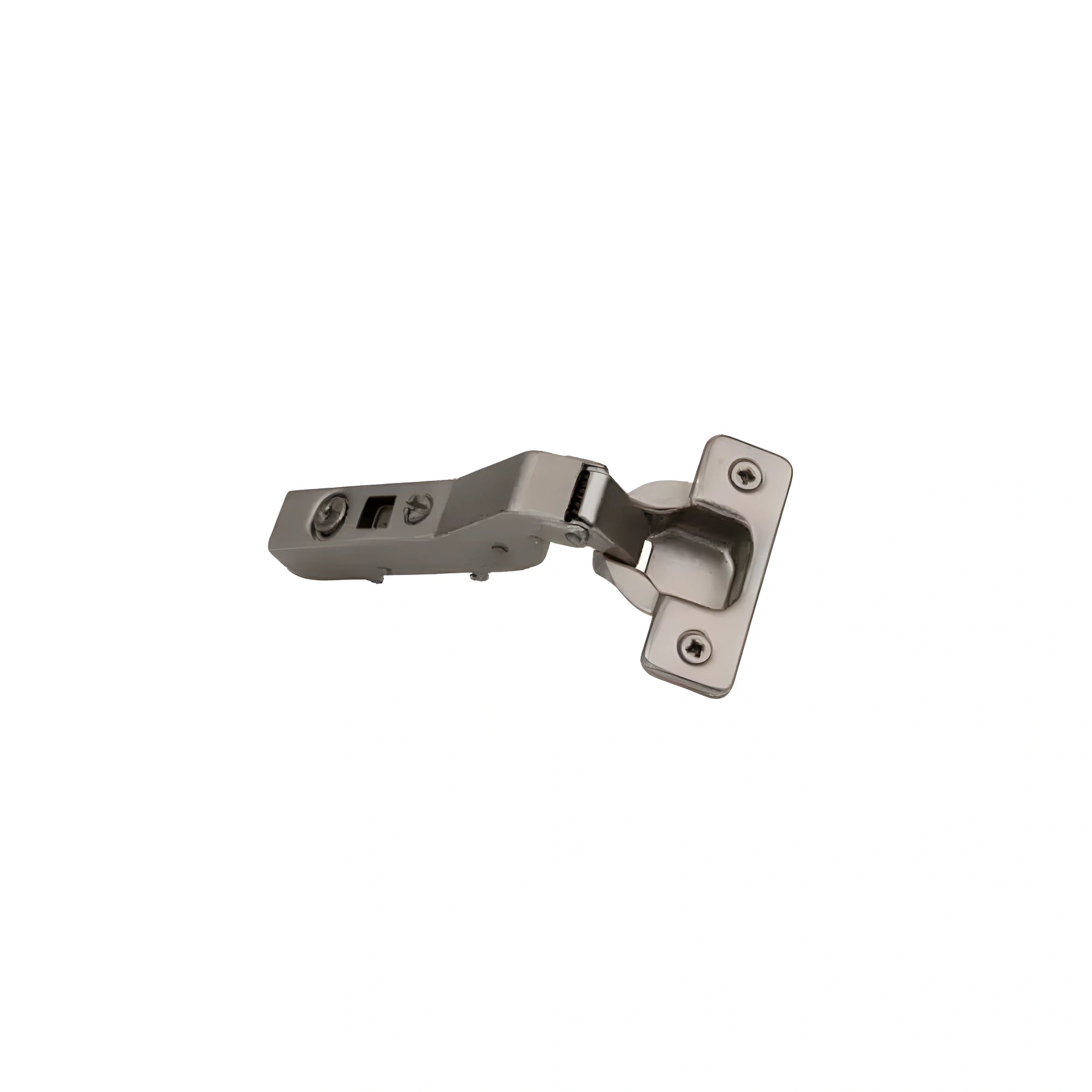

CGS 30 Degree Diagonal Clip Cushion Hinge - 30 Degree, Diagonal, Clip Cushion Hinge, Full Overlay, without dowels.

Specifications

Material	Steel
Finish	Nickel-plated
Opening Angle	30°
Overlay	Full Overlay
Fastening	Without dowels
Brands	CGS
Mounting Type	Frameless
Closing Method	Cushion-Close
Range of Motion	Specialty
Frameless Overlay	Full Overlay
Door Mounting	Clip-On
Fastening Type	Wood Screw
Type	Concealed, soft-close diagonal hinge
Mounting Style	Face frame or frameless (with compatible mounting plate)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11.5–12 mm
Adjustment	3-way (side-to-side, height, and depth)
Closing Mechanism	Integrated cushion close damper for quiet performance
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on system for easy installation and removal
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Concealed, soft-close diagonal hinge
Mounting Style: Face frame or frameless (with compatible mounting plate)
Opening Angle: 30° (designed for diagonal or corner cabinet doors)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion resistant)
Overlay Options: ½” overlay (other configurations available)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11.5–12 mm
Adjustment: 3-way (side-to-side, height, and depth)
Closing Mechanism: Integrated cushion close damper for quiet performance
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on system for easy installation and removal
Cycle Testing: Exceeds 50,000 open/close operations
Specialized 30° Opening – Designed specifically for diagonal and corner cabinet applications.
Cushion-Close Cushion Technology – Quiet, controlled closing action.
Concealed European-Style Hinge – Hidden design for a clean cabinet appearance.
Clip-On Mounting – Enables fast installation and convenient door removal.
Durable Steel Build – Long-lasting reliability in high-use areas.
Nickel-Plated Finish – Corrosion and wear resistant for kitchens and bathrooms.
Standard 35 mm Hinge Cup – Compatible with most cabinetry systems.
3-Way Adjustment – Ensures precise door alignment.
Smooth, Quiet Operation – Enhances user experience in residential and commercial settings.
Corner Kitchen Cabinets – Perfect for diagonal corner units requiring limited-angle opening.
Bathroom Vanities with Angled Doors – Smooth function in compact, angled layouts.
Closet & Wardrobe Corners – Allows angled cabinet doors to function with stability.
Pantry & Utility Corners – Provides access without overextending into adjoining doors.
Custom Cabinetry & Millwork – Designed for specialized cabinetry where diagonal placement is required.
Office Storage Corners – Adds premium hardware performance to angled storage units.
Retail & Display Fixtures – Fits custom angled designs requiring quiet, cushioned hinge action.
Hospitality Projects – Ideal for hotels and multi-unit buildings with corner cabinetry needs.
RV & Mobile Home Cabinetry – Secure, controlled close for compact corner units
