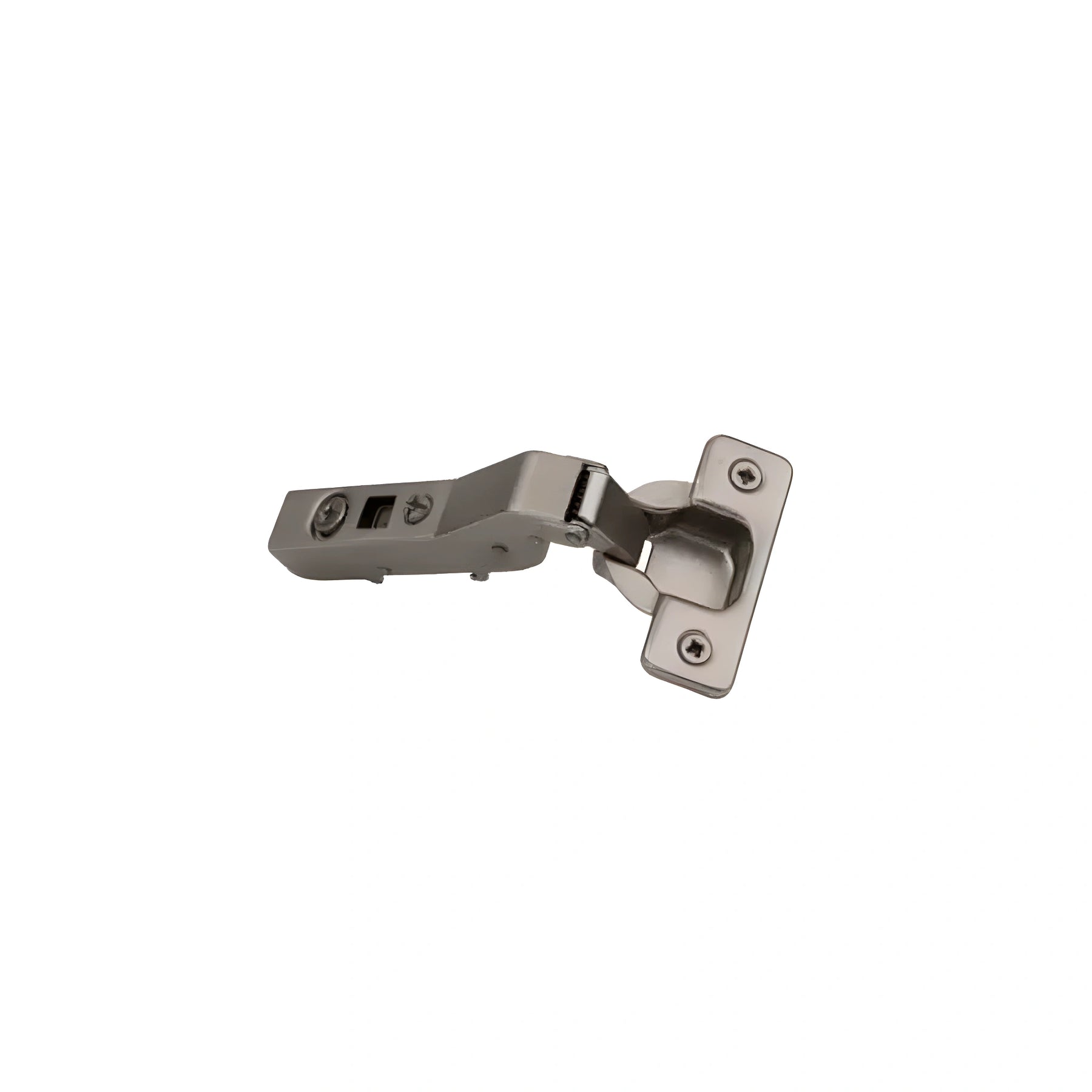

CGS 30 Degree Diagonal Clip Cushion Hinge, 30 Degree, Diagonal, Clip Cushion Hinge, with 8mm dowels

Product Details

• Type: Concealed, soft-close diagonal hinge
• Mounting Style: Face frame or frameless (with compatible mounting plate)
• Opening Angle: 30° (designed for diagonal or corner cabinet doors)
• Material: Heavy-duty steel
• Finish: Nickel-plated (corrosion resistant)
• Overlay Options: ½” overlay (other configurations available)
• Cup Diameter: 35 mm (standard European hinge size)
• Cup Depth: 11.5–12 mm
• Adjustment: 3-way (side-to-side, height, and depth)
• Closing Mechanism: Integrated cushion close damper for quiet performance
• Door Thickness Compatibility: 14 mm – 22 mm (typical range)
• Mounting Plate: Clip-on system for easy installation and removal
• Cycle Testing: Exceeds 50,000 open/close operations
• Specialized 30° Opening – Designed specifically for diagonal and corner cabinet applications.
• Cushion-Close Cushion Technology – Quiet, controlled closing action.
• Concealed European-Style Hinge – Hidden design for a clean cabinet appearance.
• Clip-On Mounting – Enables fast installation and convenient door removal.
• Durable Steel Build – Long-lasting reliability in high-use areas.
• Nickel-Plated Finish – Corrosion and wear resistant for kitchens and bathrooms.
• Standard 35 mm Hinge Cup – Compatible with most cabinetry systems.
• 3-Way Adjustment – Ensures precise door alignment.
• Smooth, Quiet Operation – Enhances user experience in residential and commercial settings.
• Corner Kitchen Cabinets – Perfect for diagonal corner units requiring limited-angle opening.
• Bathroom Vanities with Angled Doors – Smooth function in compact, angled layouts.
• Closet & Wardrobe Corners – Allows angled cabinet doors to function with stability.
• Pantry & Utility Corners – Provides access without overextending into adjoining doors.
• Custom Cabinetry & Millwork – Designed for specialized cabinetry where diagonal placement is required.
• Office Storage Corners – Adds premium hardware performance to angled storage units.
• Retail & Display Fixtures – Fits custom angled designs requiring quiet, cushioned hinge action.
• Hospitality Projects – Ideal for hotels and multi-unit buildings with corner cabinetry needs.
• RV & Mobile Home Cabinetry – Secure, controlled close for compact corner units
