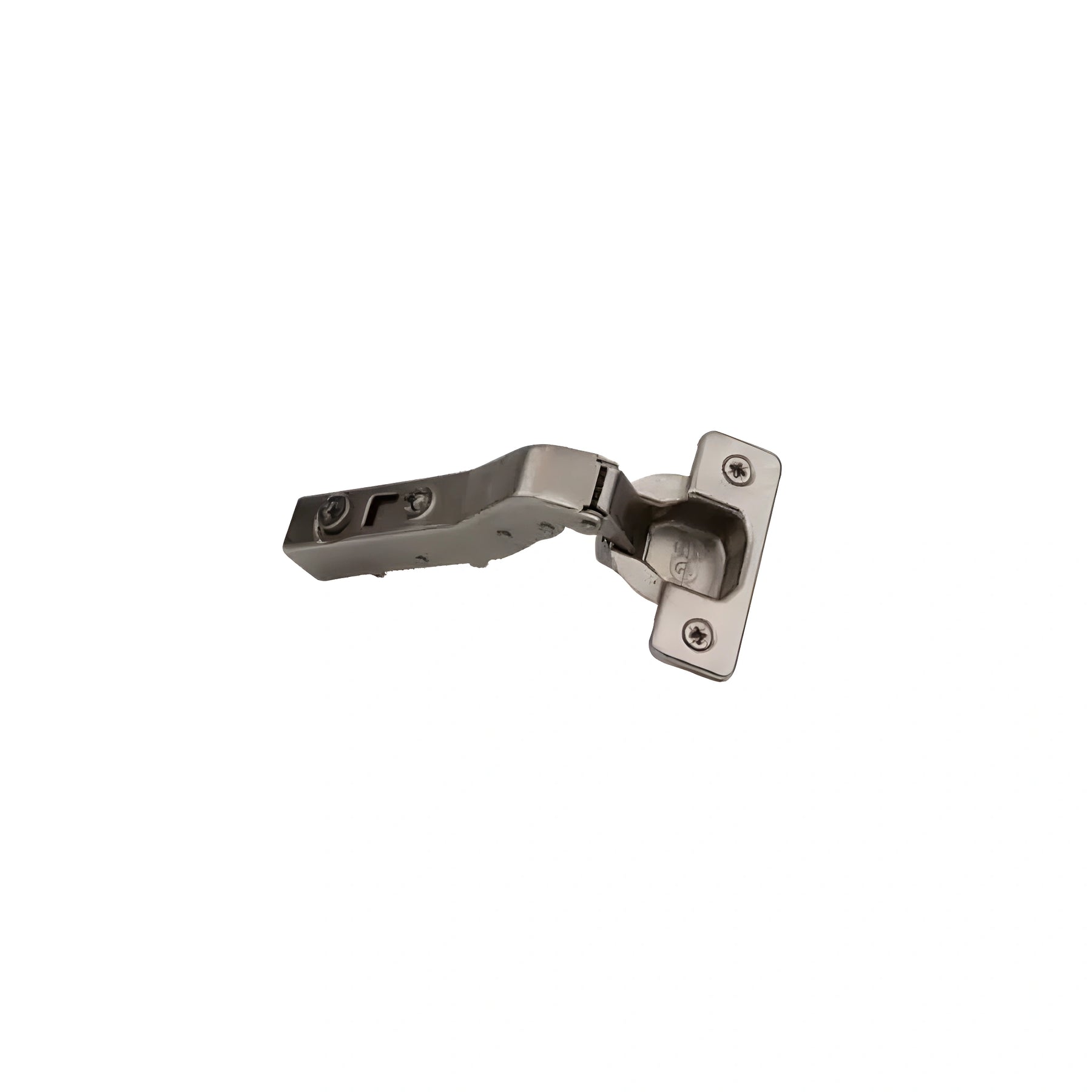

CGS 45 Degree Diagonal Clip Cushion Hinge - 45 Degree, Diagonal, Clip Cushion Hinge, Full Overlay, with 8mm dowels
Specifications
| Material | Steel |
|---|---|
| Finish | Nickel-plated |
| Opening Angle | 45° |
| Overlay | Full Overlay |
| Fastening | With 8mm dowels |
| Brands | CGS |
| Mounting Type | Frameless |
| Closing Method | Cushion-Close |
| Range of Motion | Specialty |
| Frameless Overlay | Full Overlay |
| Door Mounting | Clip-On |
| Fastening Type | Dowel |
| Type | Concealed, cushion-close diagonal hinge |
| Mounting Style | Face frame or frameless (with compatible mounting plate) |
| Cup Diameter | 35 mm (standard European hinge size) |
| Cup Depth | 11.5-12 mm |
| Adjustment | 3-way (side-to-side, height, and depth) |
| Closing Mechanism | Integrated cushion close damper for soft, quiet closing |
| Door Thickness | 14 mm – 22 mm (typical range) |
| Mounting Plate | Clip-on design for fast installation and easy door removal |
| Cycle Testing | Exceeds 50,000 open/close operations |
Details
- Type: Concealed, cushion-close diagonal hinge
- Mounting Style: Face frame or frameless (with compatible mounting plate)
- Opening Angle: 45° (optimized for diagonal and corner cabinet doors)
- Material: Heavy-duty steel
- Finish: Nickel-plated (corrosion and wear resistant)
- Overlay Options: ½” overlay (other configurations available)
- Cup Diameter: 35 mm (standard European hinge size)
- Cup Depth: 11.5-12 mm
- Adjustment: 3-way (side-to-side, height, and depth)
- Closing Mechanism: Integrated cushion close damper for soft, quiet closing
- Door Thickness Compatibility: 14 mm – 22 mm (typical range)
- Mounting Plate: Clip-on design for fast installation and easy door removal
- Cycle Testing: Exceeds 50,000 open/close operations
- Specialized 45° Design – Engineered for diagonal corner cabinets and angled applications.
- Cushion-Close Cushion Technology – Ensures smooth, controlled door closing.
- Concealed European Hinge – Hidden design keeps cabinetry looking seamless and modern.
- Clip-On Mounting System – Quick, tool-free installation and removal.
- Durable Steel Construction – Long-lasting strength for heavy-use environments.
- Nickel-Plated Finish – Resists corrosion in kitchens, bathrooms, and high-moisture spaces.
- Standard 35 mm Hinge Cup – Universally compatible with most cabinetry.
- 3-Way Adjustability – Fine-tunes alignment for a perfect fit.
- Wide-Use Versatility – Functional in residential, commercial, and custom cabinetry projects.
- Quiet Performance – Ideal for premium cabinetry where silent operation is expected.
- Kitchen Corner Cabinets – Provides smooth, quiet hinge action for angled doors.
- Bathroom Vanities – Perfect for diagonal cabinet layouts in compact spaces.
- Closets & Wardrobes – Supports angled cabinetry in custom storage solutions.
- Pantry & Utility Cabinets – Wide-angle design ideal for diagonal access.
- Custom Millwork & Cabinetry – Tailored for specialized diagonal installations.
- Office Storage Units – Adds cushion-close functionality to angled furniture designs.
- Retail & Display Fixtures – Works seamlessly in angled or corner display cabinetry.
- Hospitality Installations – Suitable for hotels, condos, and apartments with corner cabinetry.
- RV & Mobile Home Cabinetry – Secure, cushioned close for angled corner doors in compact living spaces.
