Comtrad

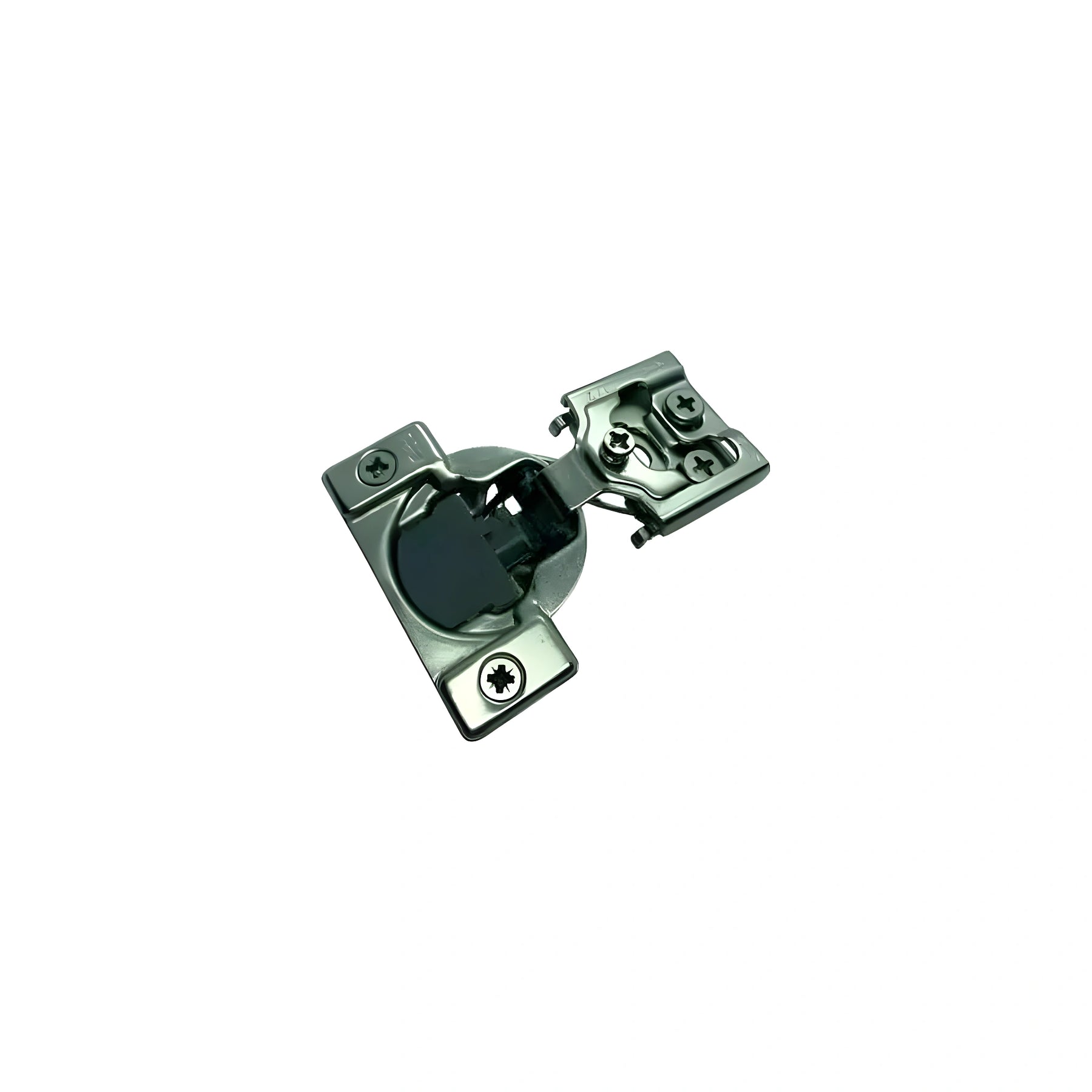

CGS Compact Face Frame Cushion Close Hinge - Compact, Face Frame, Cushion Close Hinge, 1/2″ Overlay, 3-cam with 8mm dowels.
Specifications
| Material | Heavy-duty steel |
|---|---|
| Finish | Nickel-plated |
| Overlay | 1/2″ Overlay |
| Cam Type | 3-cam |
| Fastening | With 8mm dowels |
| Type | Compact, concealed cushion-close hinge |
| Mounting Style | Face frame (built-in mounting plate, no separate plate required) |
| Opening Angle | 105° (standard for compact hinges) |
| Cup Diameter | 35 mm (standard European hinge size) |
| Cup Depth | 11.5-12 mm |
| Adjustment | 2-way or 3-way (depending on model – side-to-side, depth, and height) |
| Closing Mechanism | Integrated cushion close damper for soft, quiet closing |
| Door Thickness | 14 mm – 22 mm (typical range) |
| Mounting Plate | Integrated (compact design eliminates separate mounting plate) |
| Cycle Testing | Exceeds 50,000 open/close operations |
Details
- Type: Compact, concealed cushion-close hinge
- Mounting Style: Face frame (built-in mounting plate, no separate plate required)
- Opening Angle: 105° (standard for compact hinges)
- Material: Heavy-duty steel
- Finish: Nickel-plated (corrosion and wear resistant)
- Overlay Options: ½” overlay (common for compact hinge applications)
- Cup Diameter: 35 mm (standard European hinge size)
- Cup Depth: 11.5-12 mm
- Adjustment: 2-way or 3-way (depending on model – side-to-side, depth, and height)
- Closing Mechanism: Integrated cushion close damper for soft, quiet closing
- Door Thickness Compatibility: 14 mm – 22 mm (typical range)
- Mounting Plate: Integrated (compact design eliminates separate mounting plate)
- Cycle Testing: Exceeds 50,000 open/close operations
- Compact Design – Built-in mounting plate for face frame cabinets, reducing hardware bulk.
- Cushion-Close Cushion Technology – Smooth, quiet closing action prevents slamming.
- Face Frame Specific – Engineered to install directly into framed cabinets.
- Concealed Hinge Style – Hidden hardware creates a clean, modern look.
- Durable Steel Construction – Long-lasting strength for high-use cabinetry.
- Nickel-Plated Finish – Provides resistance to corrosion and wear.
- Standard 35 mm Cup Size – Ensures compatibility with most cabinetry doors.
- Easy Installation – Compact design simplifies mounting on face frame cabinets.
- Adjustment Options – Allows fine-tuning for perfect door alignment.
- Tested Durability – Exceeds 50,000 open/close cycles.
- Kitchen Cabinets – Ideal for framed cabinet construction in North American kitchens.
- Bathroom Vanities – Reliable cushion-close hinge for moisture-rich environments.
- Laundry Room Cabinets – Compact hinge solution for framed cabinet doors.
- Closet & Wardrobe Cabinets – Provides smooth, quiet function in daily-use storage.
- Utility & Garage Cabinets – Compact and durable for heavy-use storage solutions.
- Custom Cabinetry & Millwork – Perfect for face frame builds requiring a sleek look.
- Office Furniture – Adds premium hinge performance to framed storage units.
- Hospitality Installations – Hotels, condos, and apartments with framed cabinetry.
- RV & Mobile Home Cabinetry – Compact hinge design suits smaller, framed cabinet structures.
