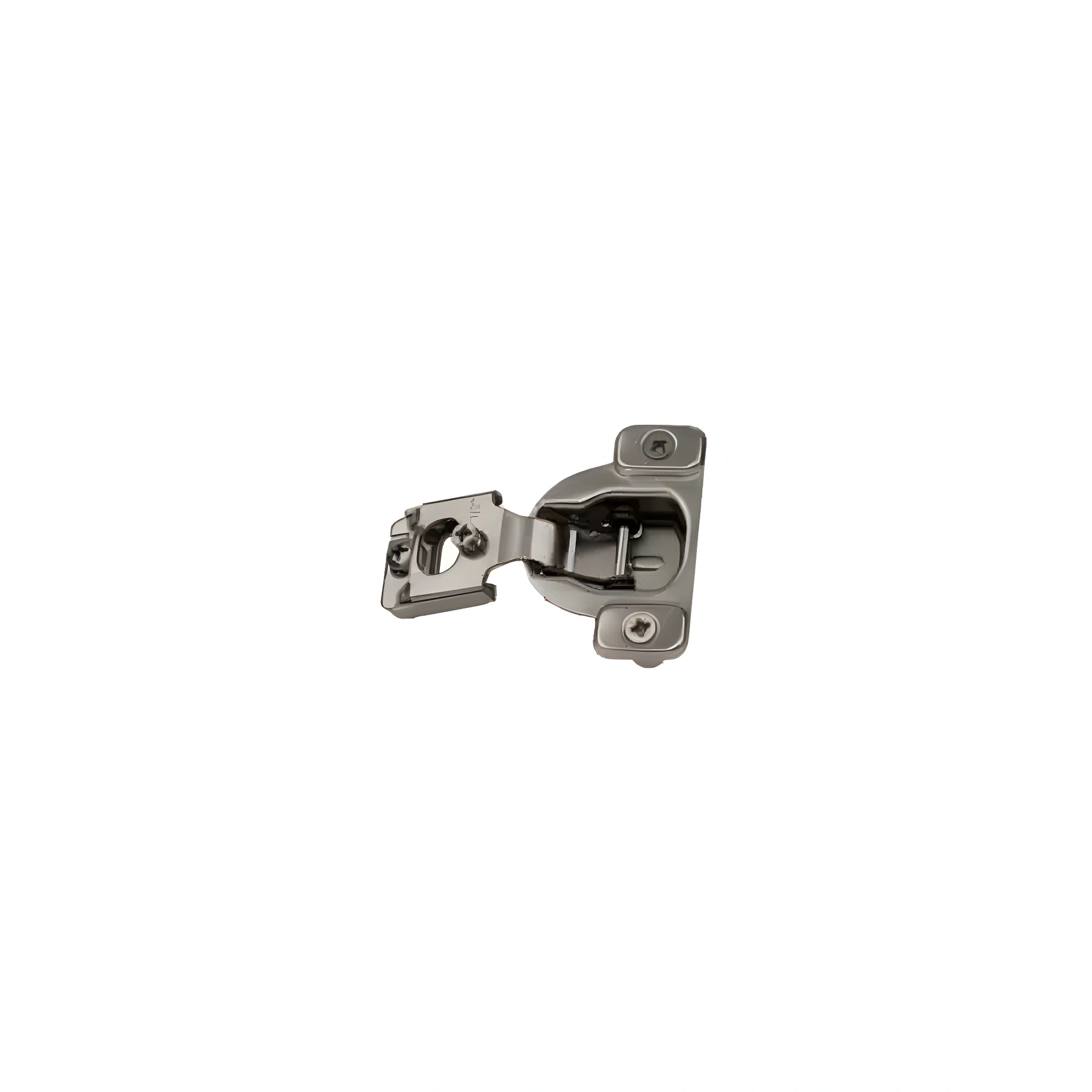

CGS Compact Face Frame Self Close Hinge - Compact, Face Frame, Self Close Hinge,1/2″ Overlay, with 8mm dowels.

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Overlay	1/2″ Overlay
Fastening	With 8mm dowels
Type	Compact, concealed self-close hinge
Mounting Style	Face frame (built-in mounting plate, no separate plate required)
Opening Angle	105° (standard for compact hinges)
Cup Diameter	35 mm (standard European hinge size)
Cup Depth	11 mm
Adjustment	2-way or 3-way (side-to-side, depth, and height depending on model configuration)
Closing Mechanism	Integrated cushion-close damper for smooth, quiet closing
Door Thickness	14 mm – 22 mm (typical range)
Cycle Testing	Exceeds 50,000 open/close operations

Details

Type: Compact, concealed self-close hinge
Mounting Style: Face frame (built-in mounting plate, no separate plate required)
Opening Angle: 105° (standard for compact hinges)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion and wear resistant)
Cup Diameter: 35 mm (standard European hinge size)
Cup Depth: 11 mm
Overlay Options: ½″ overlay (standard for this compact model)
Adjustment: 2-way or 3-way (side-to-side, depth, and height depending on model configuration)
Closing Mechanism: Integrated cushion-close damper for smooth, quiet closing
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Cycle Testing: Exceeds 50,000 open/close operations
Compact Design – Mounting plate integrated into the hinge for a space-saving fit.
Face Frame Specific – Optimized for framed cabinetry construction, common in North America.
Concealed European-Style Hinge – Provides a clean, seamless cabinet interior.
Durable Construction – Made from steel and nickel-plated for strength and corrosion resistance.
Standard 35 mm Cup Size – Compatible with most cabinetry door boring patterns.
Easy Installation – Fewer components and compact design simplify setup.
Fine Adjustment – Allows precise door alignment for a professional finish.
Quiet Operation – Enhances premium cabinetry experience.
Kitchen Cabinets – Perfect for framed cabinet doors requiring a smooth, soft-close function.
Bathroom Vanities – Reliable hinge performance in humid conditions.
Laundry Room Cabinets – Compact hinge solution for framed cabinetry.
Closet & Wardrobe Units – Provides quiet closing in daily-use storage.
Utility & Garage Cabinets – Durable enough for heavy-use storage areas.
Custom Cabinetry & Millwork – Ideal for premium framed projects requiring compact hardware.
Office Storage Furniture – Adds premium hinge function to framed storage.
Hospitality Installations – Hotels, condos, and apartments with framed cabinetry designs.
RV & Mobile Home Cabinetry – Compact size suits smaller framed cabinet structures.
