Comtrad

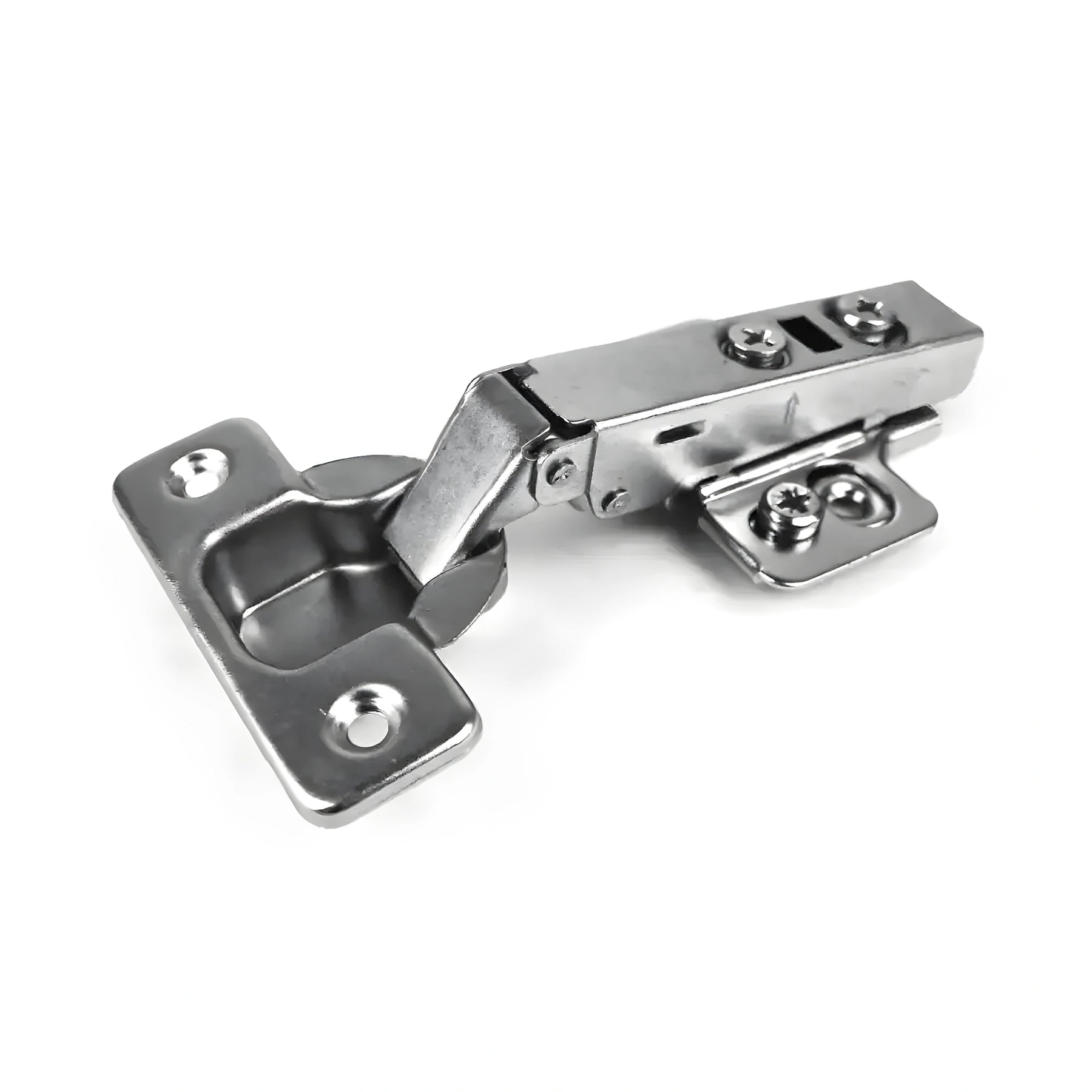

CGS Cushion Close Hinge - 110 Degree Clip Cushion Hinge, Half OL, without dowels

Specifications

Material	Heavy-duty steel
Finish	Nickel-plated
Opening Angle	110°
Overlay	Half Overlay
Fastening	Without dowels
Type	Cushion-close hinge
Mounting Style	Frameless
Cup Diameter	35 mm (standard European hinge cup size)
Cup Depth	11.5–12 mm
Adjustment	3-way (height, side-to-side, and depth)
Closing Mechanism	Integrated cushion close damper
Door Thickness	14 mm – 22 mm (typical range)
Mounting Plate	Clip-on or screw-on design (depending on model)
Cycle Testing	Exceeds 50,000 open/close cycles

Details

Type: Cushion-close hinge
Mounting Style: Frameless
Opening Angle: 105° (standard)
Material: Heavy-duty steel
Finish: Nickel-plated (corrosion resistant)
Overlay Options: ½” overlay (other sizes available upon request)
Cup Diameter: 35 mm (standard European hinge cup size)
Cup Depth: 11.5–12 mm
Adjustment: 3-way (height, side-to-side, and depth)
Closing Mechanism: Integrated cushion close damper
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
Mounting Plate: Clip-on or screw-on design (depending on model)
Cycle Testing: Exceeds 50,000 open/close cycles
Cushion-Close Technology: Prevents slamming with a smooth, cushioned close
Durable Construction: Built for long-lasting performance in high-use environments
Easy Installation: Designed for quick alignment and secure mounting
Adjustable Settings: Allows fine-tuning for precise door alignment
Concealed Hinge Style: Provides a clean, seamless look inside cabinets
Corrosion-Resistant Finish: Ensures longevity, even in kitchens and bathrooms
Quiet Operation: Reduces noise for a premium user experience
Versatile Application: Suitable for residential, commercial, and RV cabinetry
Kitchen Cabinets
Bathroom Vanities
Closet & Wardrobe Cabinets
Laundry & Utility Cabinets
Custom Cabinetry & Millwork
Office Furniture & Storage Units
Retail & Commercial Fixtures
Hospitality Installations
RV & Mobile Home Cabinetry
Entertainment Centers
