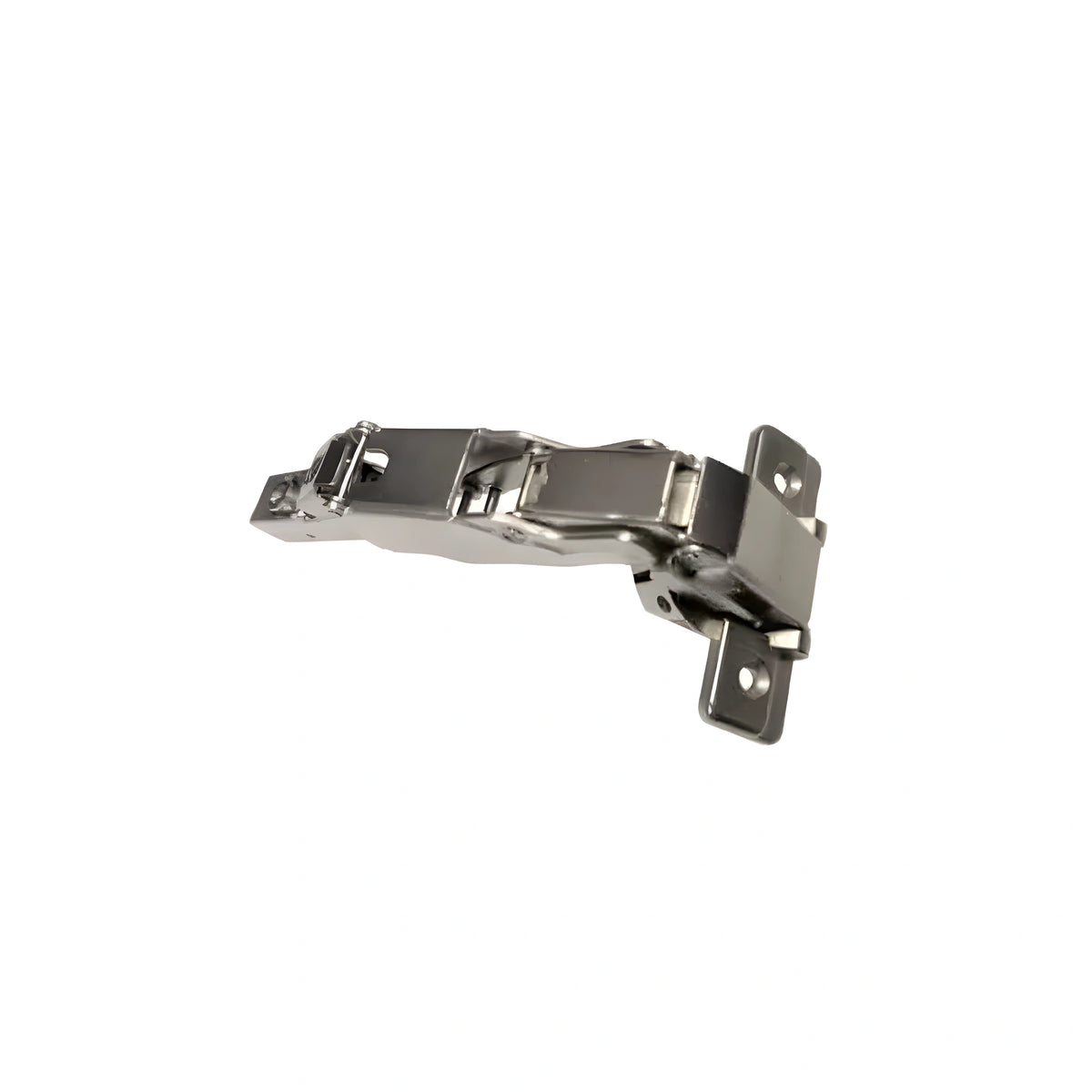

CGS 165 Degree Wide Angle Clip Cushion Hinge, 165 Degree, Wide Angle, Clip Cushion Hinge, Full Overlay, with 8mm dowels

Product Details

• Type: Concealed, cushion-close wide-angle hinge
• Mounting Style: Face frame or frameless (with compatible mounting plate)
• Opening Angle: 165° (maximum access, ideal for specialty cabinets)
• Material: Heavy-duty steel
• Finish: Nickel-plated (corrosion and wear resistant)
• Overlay Options: ½” overlay (other options available upon request)
• Cup Diameter: 35 mm (standard European hinge size)
• Cup Depth: 11.5-12 mm
• Adjustment: 3-way (side-to-side, height, and depth for perfect alignment)
• Closing Mechanism: Integrated cushion close damper for controlled, quiet closing
• Door Thickness Compatibility: 14 mm – 22 mm (typical range)
• Mounting Plate: Clip-on design for quick installation and easy removal
• Cycle Testing: Exceeds 50,000 open/close operations
• 165° Wide Opening Angle – Maximizes cabinet accessibility, ideal for specialty or corner units.
• Cushion-Close Cushion Technology – Smooth, quiet closing to prevent slamming.
• Concealed European-Style Design – Hidden from view for a clean, modern look.
• Clip-On Mounting System – Quick installation and easy door removal without tools.
• Heavy-Duty Steel Construction – Built for strength and durability.
• Nickel-Plated Finish – Corrosion-resistant and suitable for kitchens, bathrooms, and high-use areas.
• Standard 35 mm Hinge Cup – Industry standard for easy replacements or upgrades.
• 3-Way Adjustment – Fine-tunes alignment (depth, side-to-side, and height).
• Compatible with Various Door Thicknesses – Typically 14 mm – 22 mm.
• Cycle-Tested for Reliability – Exceeds 50,000 open/close operations.
• Corner Cabinets – Provides maximum swing for deep or angled storage.
• Pantry Units – Wide access to shelves for easier loading and organization.
• Closet & Wardrobe Systems – Accommodates larger doors with extra clearance.
• Laundry & Utility Cabinets – Ideal where wide doors and frequent use are common.
• Entertainment Centers & Media Units – Allows full opening for wiring and device access.
• Office Storage & Custom Millwork – Professional-grade hinge for premium furniture projects.
• Retail & Commercial Fixtures – Quiet, wide-opening hinge for display cabinetry.
• Hospitality Installations – Hotels, condos, and apartments where durability and accessibility matter.
• RV & Mobile Home Cabinetry – Wide opening paired with secure cushion-close function for travel use
