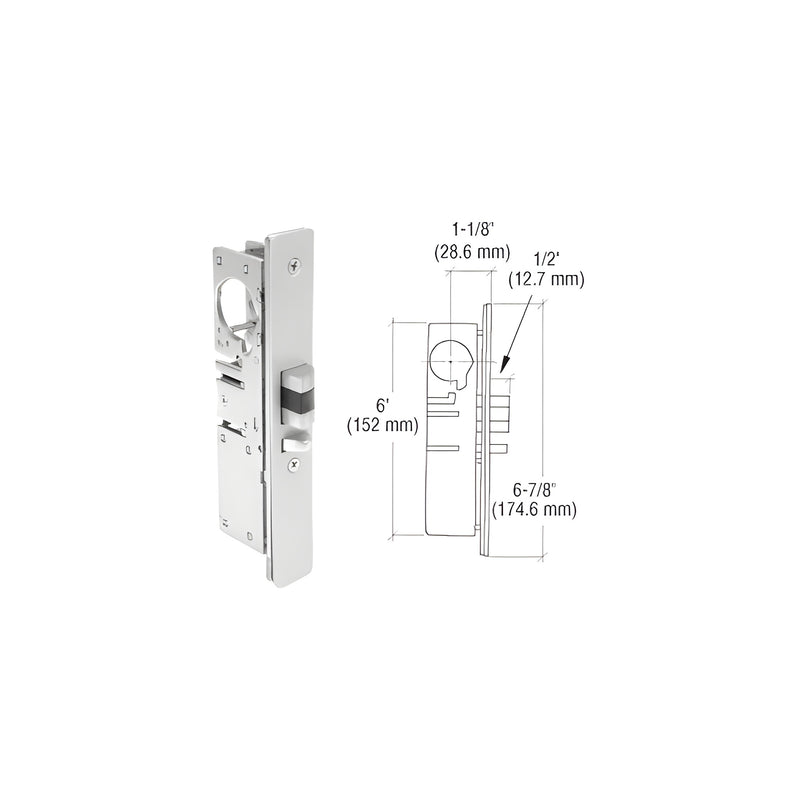

CRL 1-1/8" Backset Narrow Stile Right Hand Deadlatch Lock

• 1/2" (13 mm) Throw
• Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
• Field Reversible for Opposite Hand
• Key Controlled Dogging
• Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam
• Faceplate and Strike (Optional)

This

CRL Narrow Stile Aluminum Door Deadlock

provides maximum security in a narrow backset lock. Available in either a 31/32" (25 mm) or 1-1/8" (29 mm) backset, the lock provides a 1/2" (13 mm) throw dead latch made of hardened steel. The lock accepts a standard 1-5/32" (29 mm) mortise key or thumbturn cylinders with AR MS-type cam.

Faceplates and Strikes are sold separately. For Strikes use Cat. Nos. DL4515, Dl4540, or DL4545.
