CRL 1/2" Glass Low-Profile Square Door Rail, Black Powdercoat, No Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

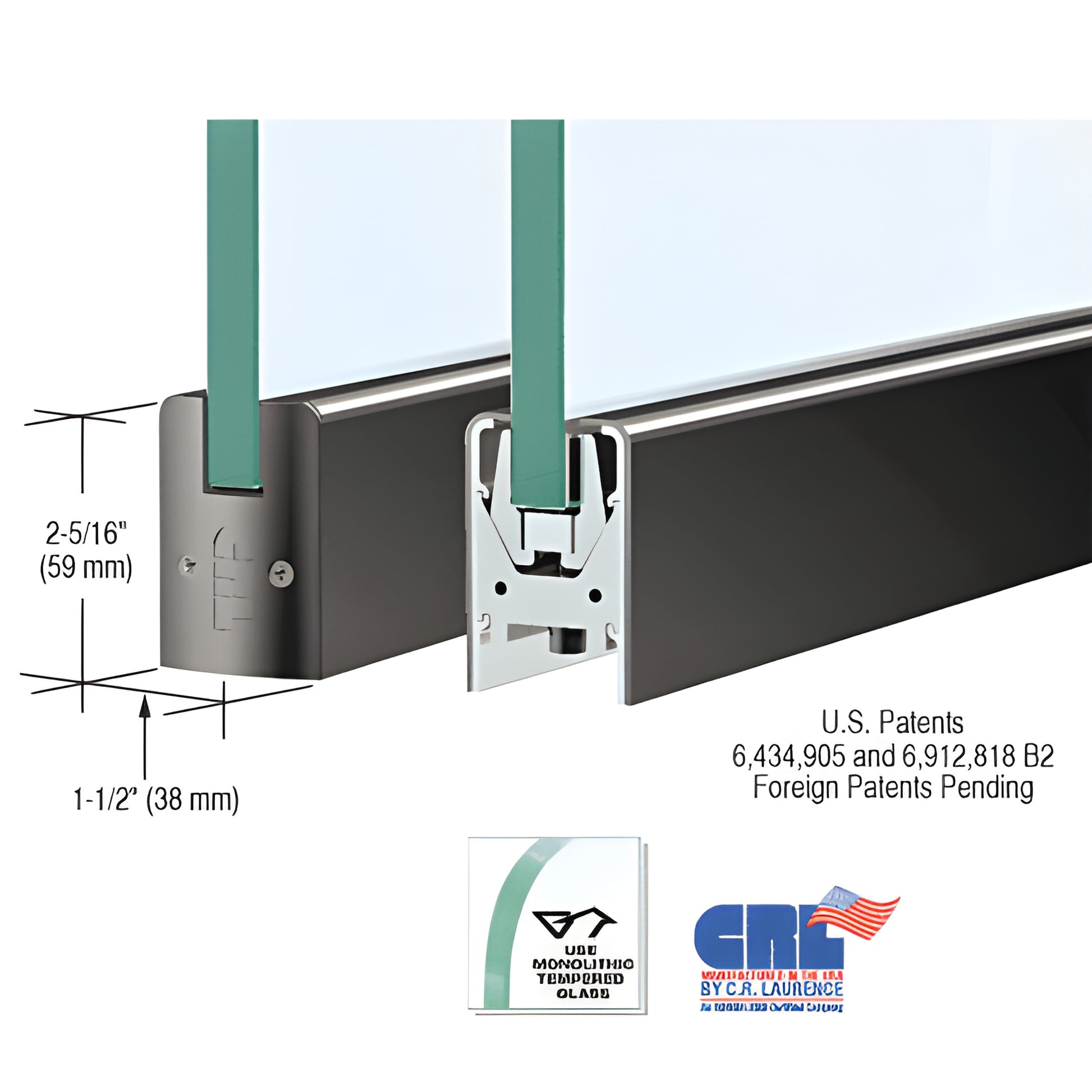

Our CRL Low Profile Door Rail (SKU: DR2SBL12C) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). CRL Low Profile Door Rails ship complete with End Caps, installation instructions, and adjustment wrenches for fast, job-site-ready installation.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides a secure glass attachment plus the fastest installation time of any door rail system in the industry—experienced installers can prepare a door in under ten minutes. Rails arrive fabricated and ready-to-install; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide assembled in the rail. The adjustable alignment system allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door—standard on both top and bottom rails.

To fine-tune the door after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings for easier field alignment.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass in select models
• Rigid single-component housing — will not shift or fall out of adjustment over time
• Internal components remain assembled during installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must
