CRL 1/2 in Roll-Formed Aluminum Lip Screen Frame, Gray 144 in

• Typical applications: inset flush-mounting of screens for patios, porches, and framed openings
• Installs and removes easily with screen clips for fast maintenance
• .025" (.63 mm) wall thickness
• Several finishes available for color-matching trim

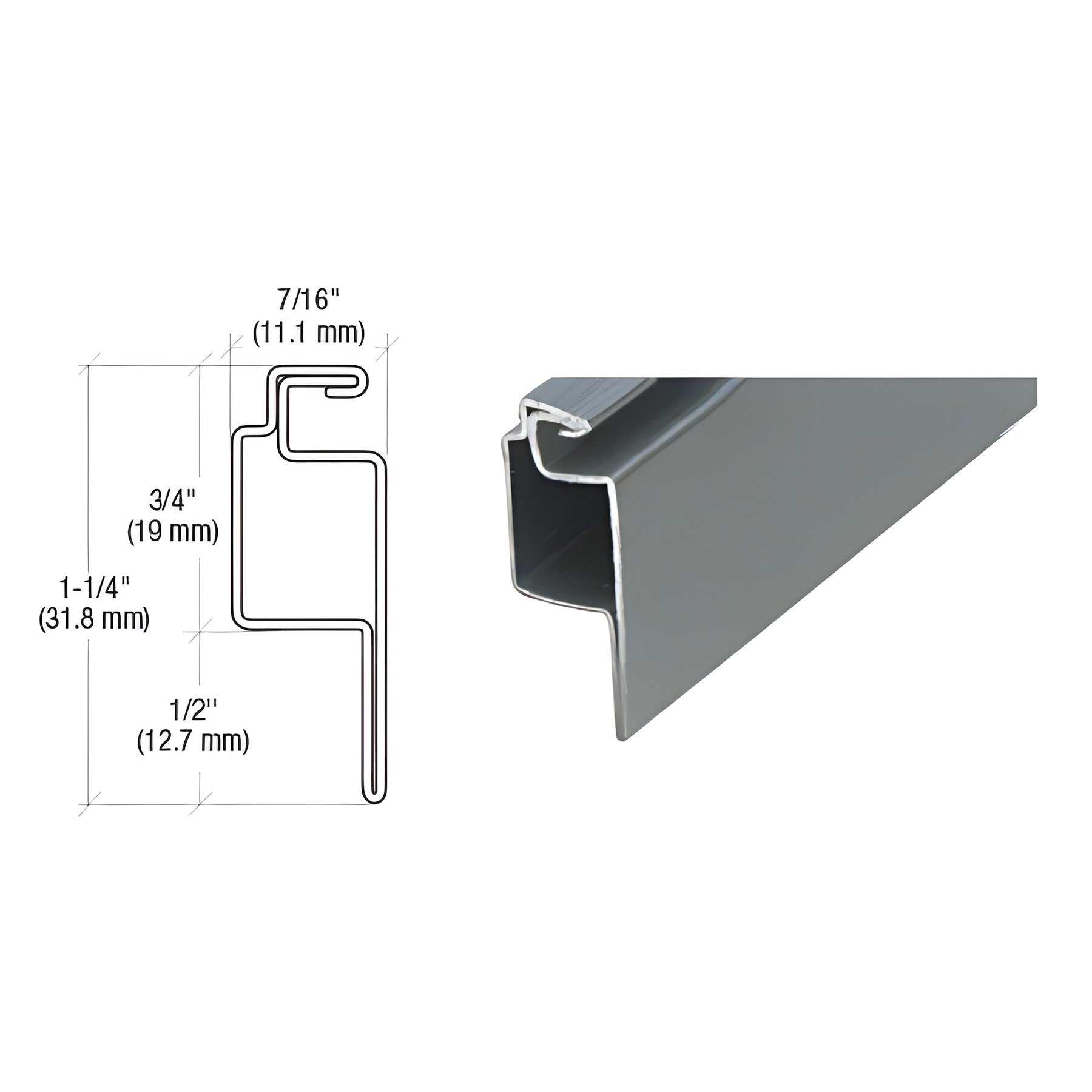

CRL 3/4" x 7/16" (19 x 11 mm) box type Screen Frame features a 1/2" (12.7 mm) facing lip and is roll-formed from .025" (.63 mm) aluminum. Designed as a lip frame for installations where no back-stop is available, the frame is slightly cambered (bowed) to retain screen tension after installation. Available in three finishes for patio and porch screen projects. SKU: WSFL1PGRY.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .025" (.63 mm)
Uses Spline Size: .185" (4.7 mm)
Uses Corners: WSC111 for mitered corners

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can vary by ± .002" (.05 mm). This is standard in the industry.

Order the WSFL1PGRY aluminum lip screen frame for durable, easy-to-install patio and porch screens—contact us to confirm finish availability.
