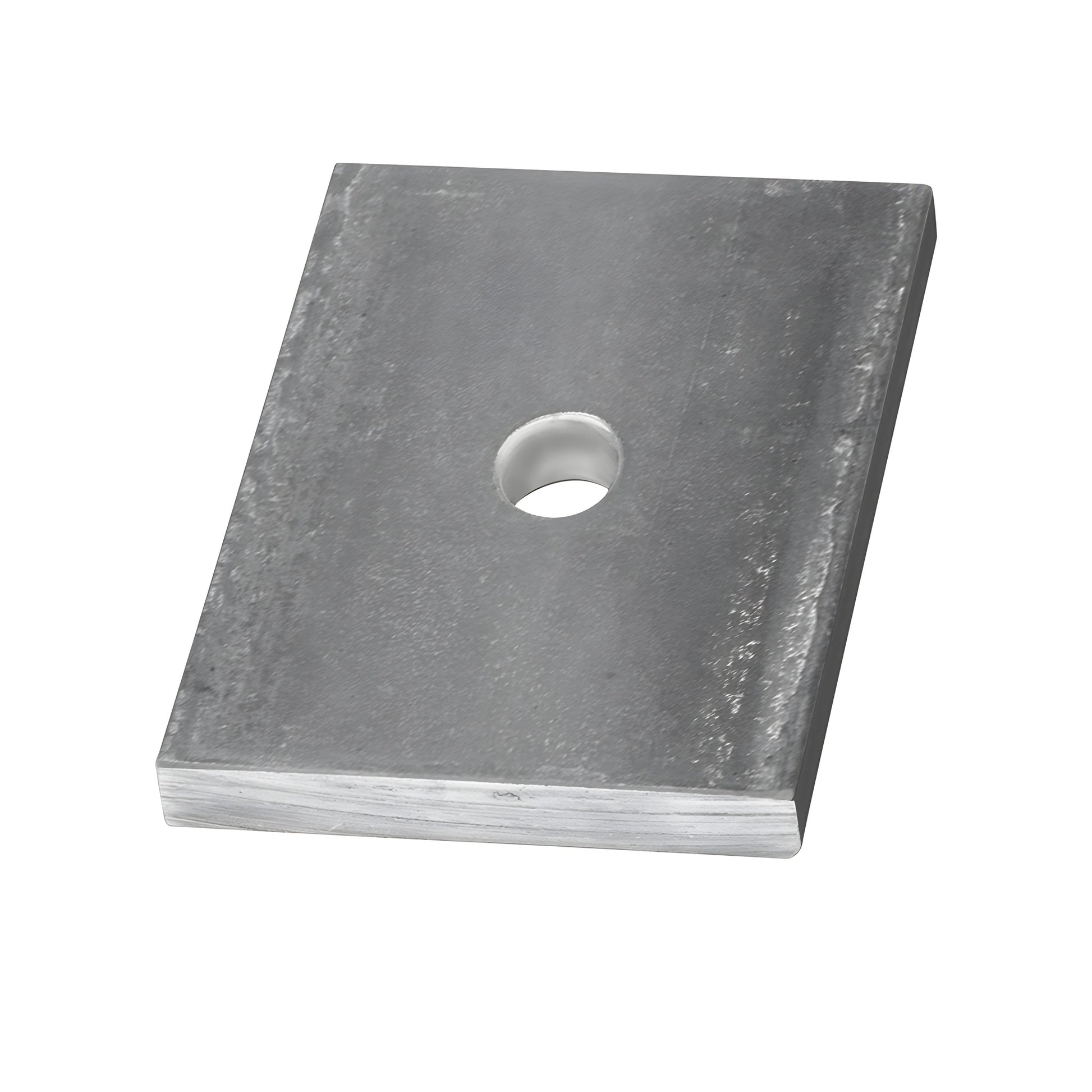

CRL 1/2" Steel Replacement Weld Blocks for L68S/L21S/L25S Base Shoes
CRL 1/2" Steel Replacement Weld Blocks for L68S/L21S/L25S Base Shoes
Regular price
$169.72 CAD
Regular price
Sale price
$169.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LSWB21
Shipping Weight: 13.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

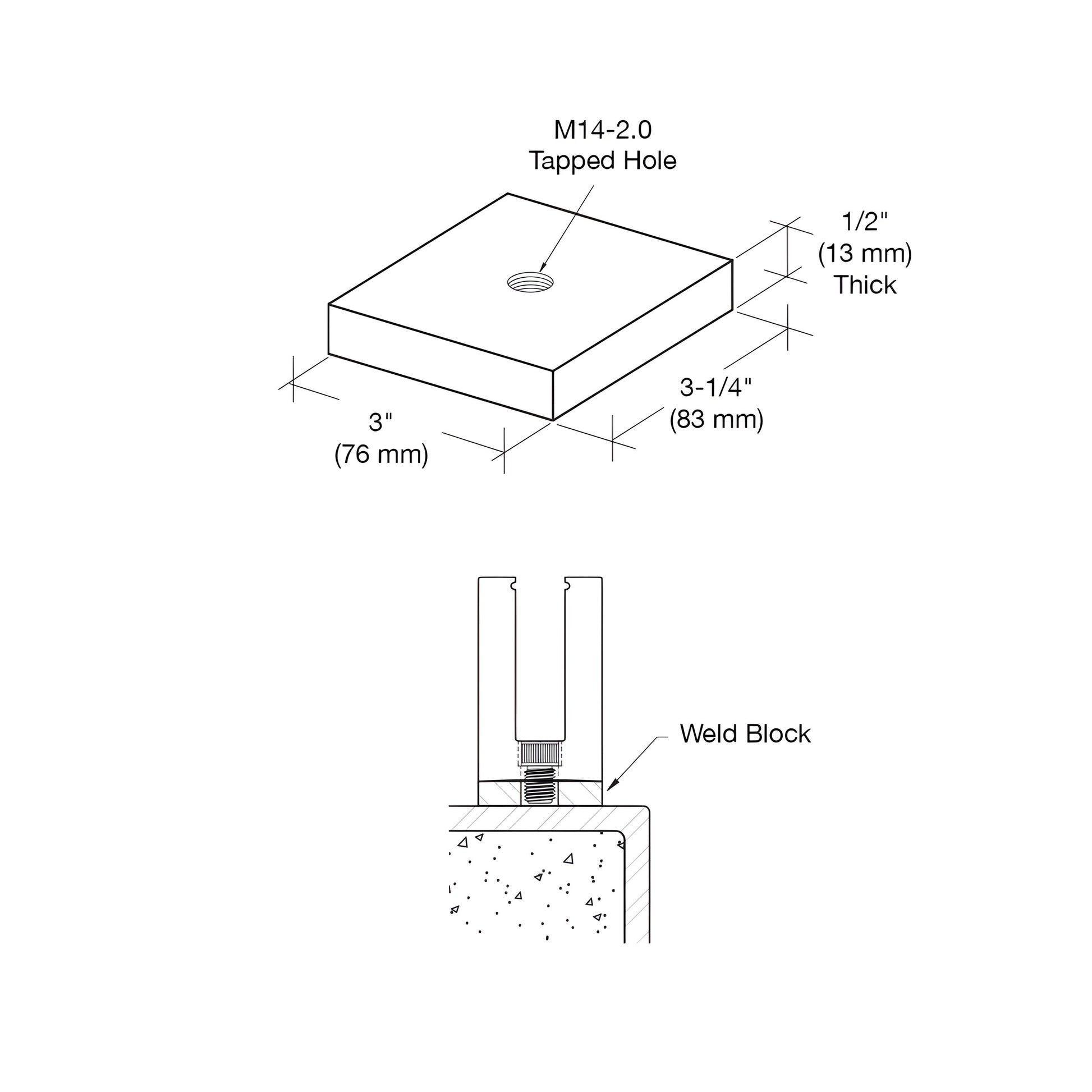

Length
3-1/4 in. (83 mm)
Material
Steel
Thickness
1/2 in. (12.7 mm)
Width
3 in. (76 mm)
Overview
- Fabricated and ready to weld for fast on-site installation
- Eliminates the need for drilling and tapping on job site
- Compatible with L68S, 9BL68, L21S, 9BL21, and L25S base shoes
- A36 steel alloy, hot-rolled with centered M14 x 2.0 tapped hole
- Sold in packs of 10
CRL Weld Blocks (SKU: LSWB21) are designed for secure, permanent attachment to structurally sound steel beams, angles, or embedment plates. Use with CRL base shoes and stainless steel socket head cap screws (Cat. No. HHCS14X34) for a reliable connection. Common installation method: fasten the weld block to the base shoe, position assembly, then weld the block in place. These ready-to-weld blocks streamline glazing and storefront installation where welded base shoe anchors are required.
Product Warning:
When installing weld blocks, weld a minimum of two of the four sides using a 3/16" fillet weld for proper structural attachment.
Order LSWB21 weld blocks now to simplify base shoe anchoring—contact CRL or add to cart to buy packs of 10.
Specifications
Engineering & Test Reports
