CRL 1/2" Wide Round End Face Plate Mortise Lock for Adams Rite® Doors and a 22-1/2 Degree Keyway

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	AR18479
Pack Size	1
Faceplate Style	Round End
Housing Length	3 3/16
Hydraulic Closer	1/2
Keyway	22-1/2 Degree
Mounting Holes Center To Center	3 11/16

Description

Product Details

Fits on Adams Rite® Door
3-11/16" (94 mm) Center-to-Center Screw Holes
22-1/2 Degree Keyway

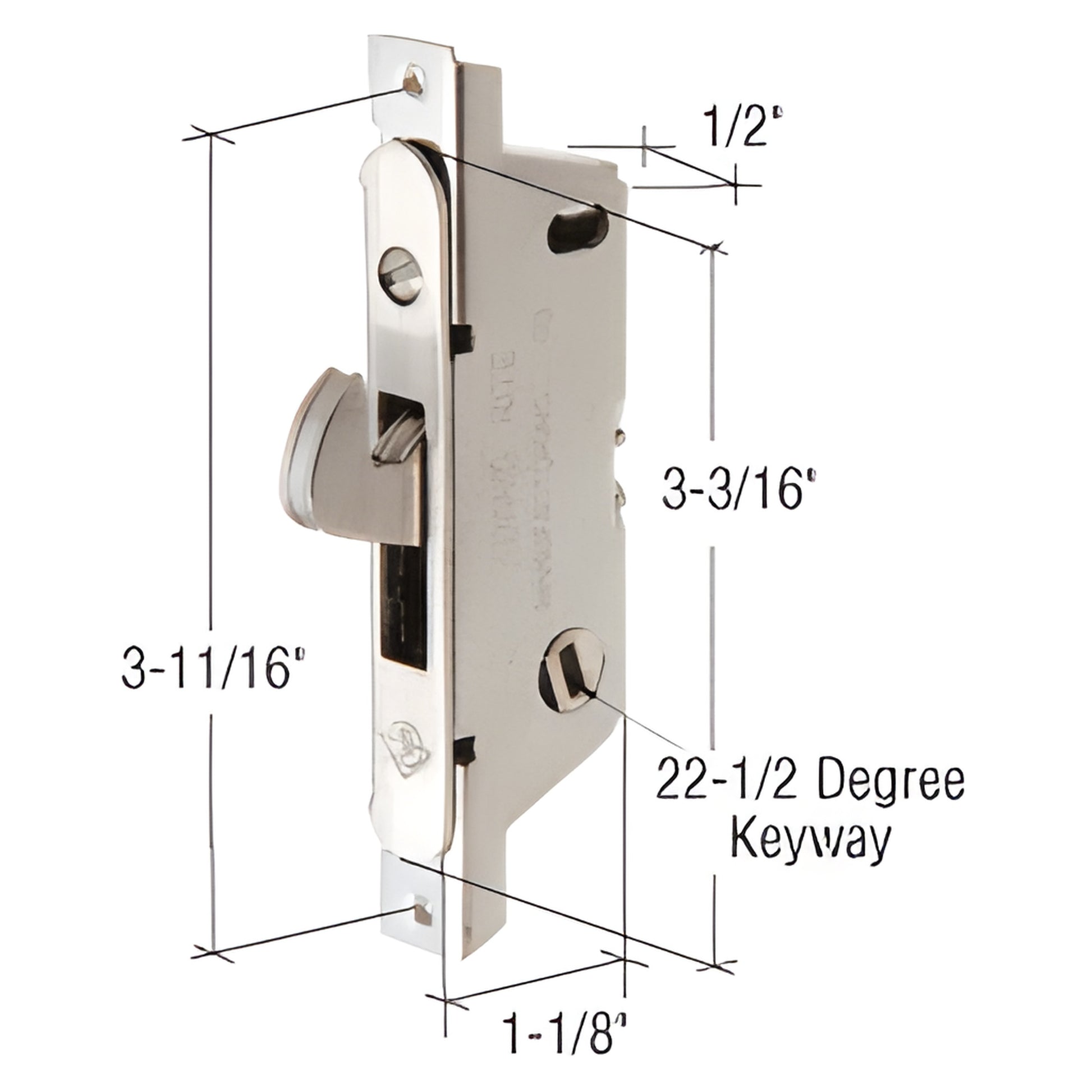

This CRL Adams Rite® Mortise Lock has a 1/2" (13 mm) wide steel housing with a round end face plate. The hook projection is adjustable and the keyway is in the 22-1/2 degree position with the hook fully extended. It fits on Adams Rite doors. Latch is stainless steel. One lock with installation fasteners per package.
