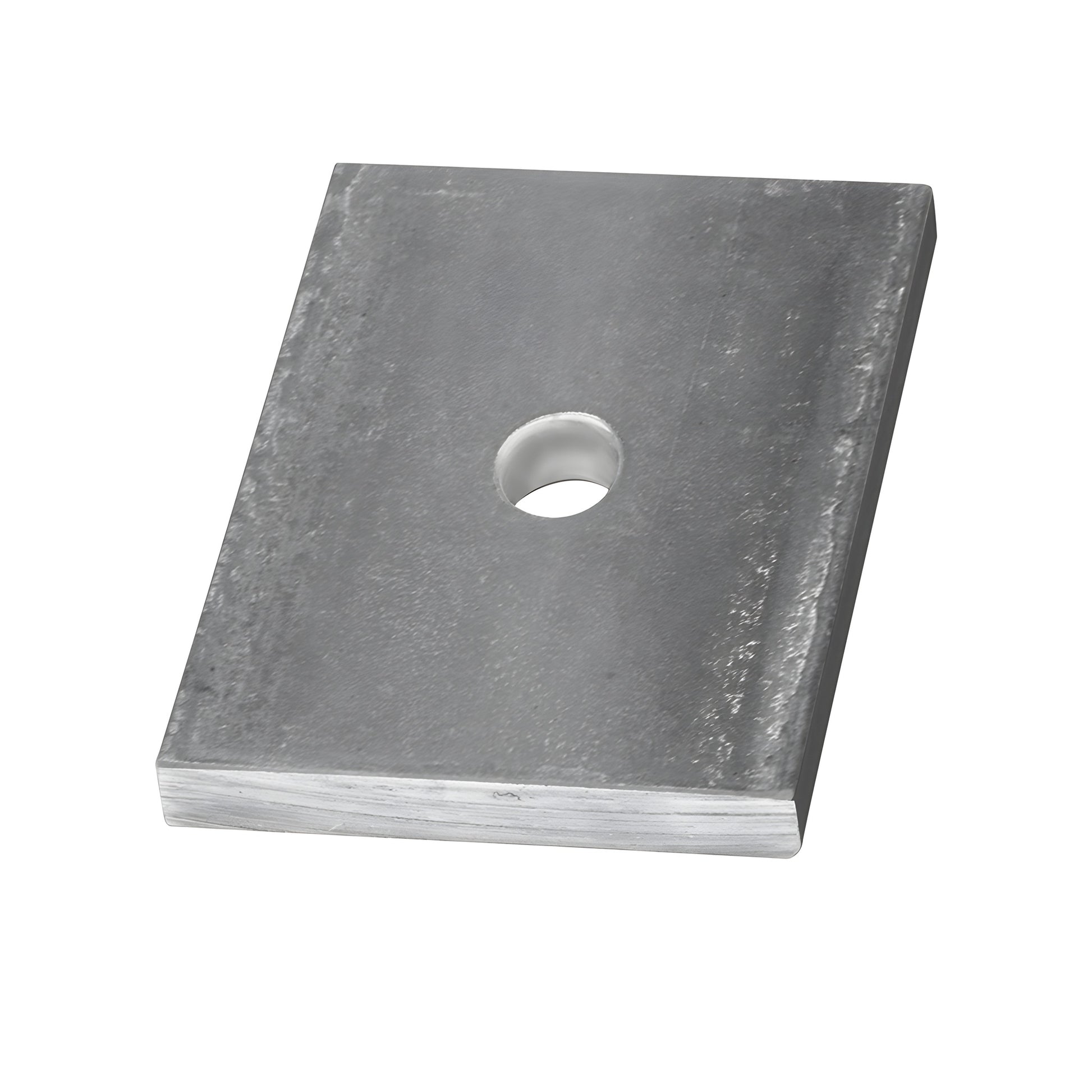

• Steel weld-on block with centered 1/2"-13 tapped hole, A36 rectangular plate, SKU BSWB12
  • Steel weld-on block with centered 1/2"-13 tapped hole, A36 rectangular plate, SKU BSWB12
1 2

CRL

CRL 1/2in Steel Weld Blocks for 8B & B5 Aluminum Base Shoe 10pk

CRL 1/2in Steel Weld Blocks for 8B & B5 Aluminum Base Shoe 10pk

$139.68 CAD
$139.68 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BSWB12
Shipping Weight: 7.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Height
1/2 in. (13 mm)
Length
2-1/4 in. (57 mm)
Material
Steel
Thickness
1/2 in (12.7 mm)
Width
2-1/2 in. (64 mm)

Overview

  • Fabricated and ready to weld
  • Eliminates the need for drilling and tapping on the job site
  • Compatible with B5L, B5S, B5T, and 8B series base shoe
  • A36 hot-rolled steel alloy with centered 1/2"-13 tapped hole
  • Sold in packs of 10 — SKU: BSWB12

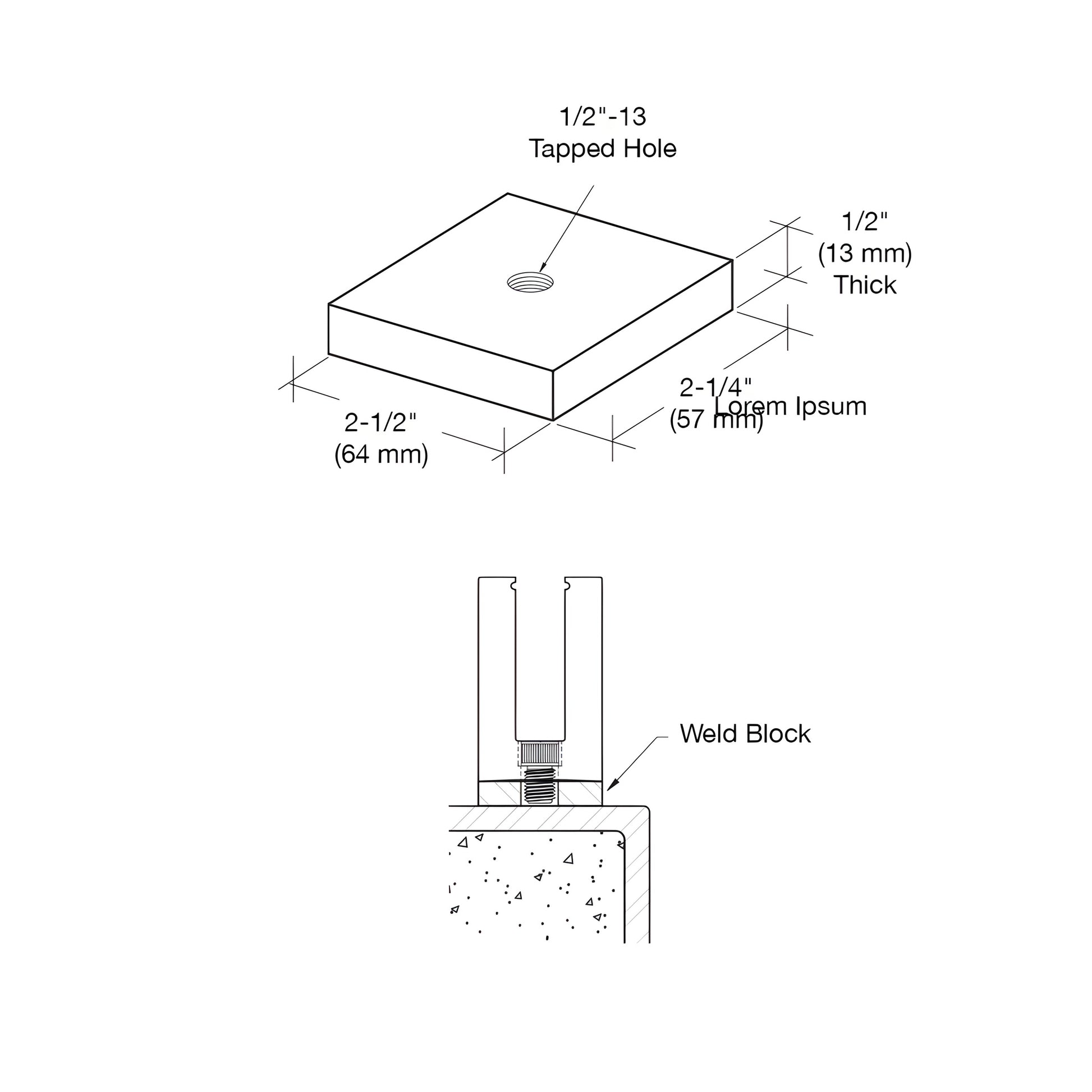

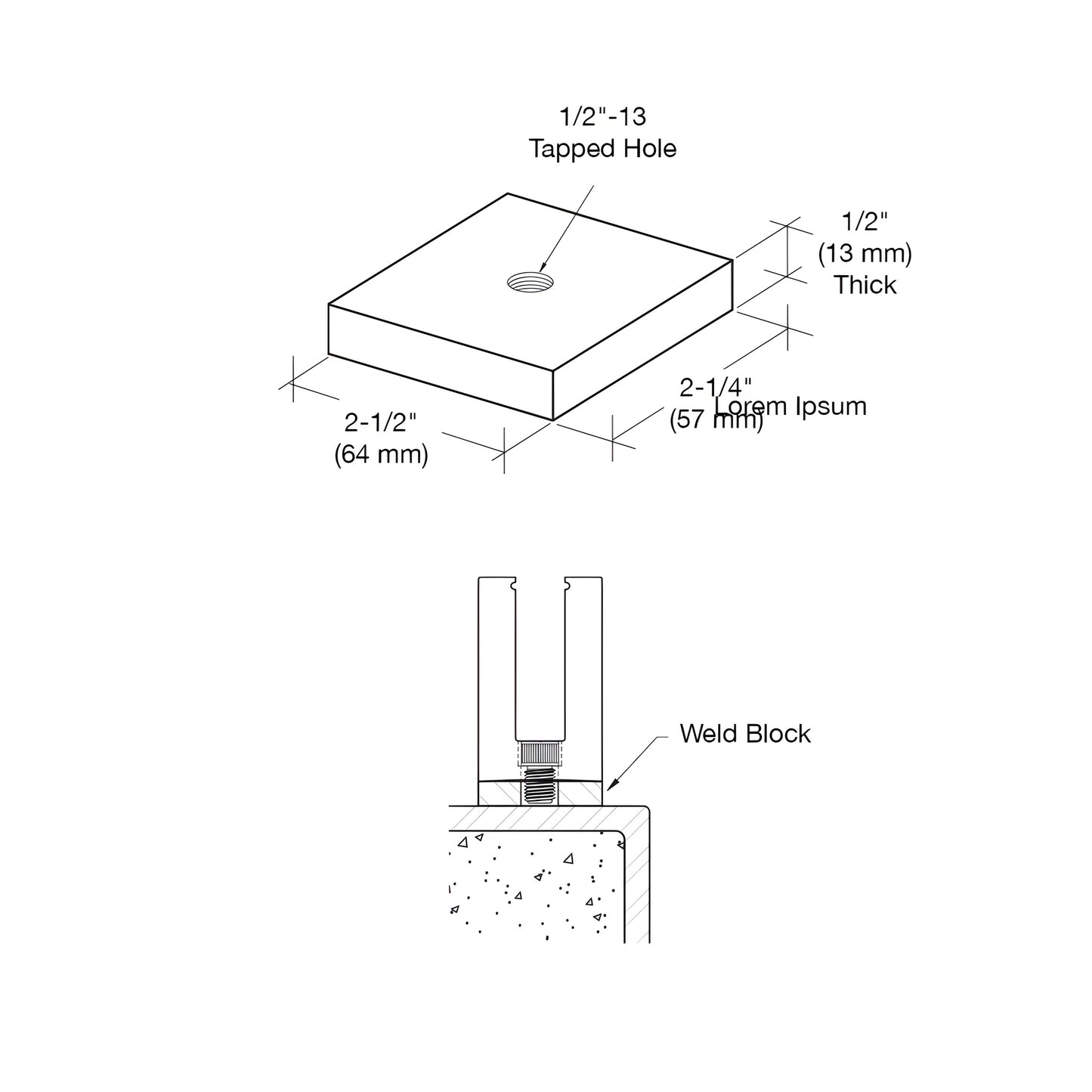

CRL Weld Blocks are weld-on attachment blocks designed for use with the CRL heavy aluminum base shoe. Manufactured from A36 hot-rolled steel, these weld blocks provide a ready-made mounting point for pre-drilled base shoes and accept CRL Cat. No. SHCS12X34 stainless steel socket head cap screws. Typical installation: attach the weld blocks to the base shoe, position the assembly, then weld the blocks to a structurally sound steel beam, angle, or embedment plate. Each block features a centered 1/2"-13 tapped hole. Sold in packs of 10.

Product Warning:

When installing weld blocks, weld a minimum of two of the four sides with at least a 3/16" fillet weld to ensure structural integrity.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.


For OEM-grade weld-on base shoe attachments and ordering assistance, contact CRL or add SKU BSWB12 to your cart today.
