CRL 1-3/16" Steel Ball Bearing Sliding Door Roller

Overview

SKU	N6686
Sold as	1 Pack
Ball Bearing	Yes
Housing Width	1/2
Mounting Holes	2-1/2 Inches
Roller Material	Steel
Roller Outside Dimension	1-3/16
Roller Profile	Concave
Roller Width	5/16

Description

Product Details

Mortise Application

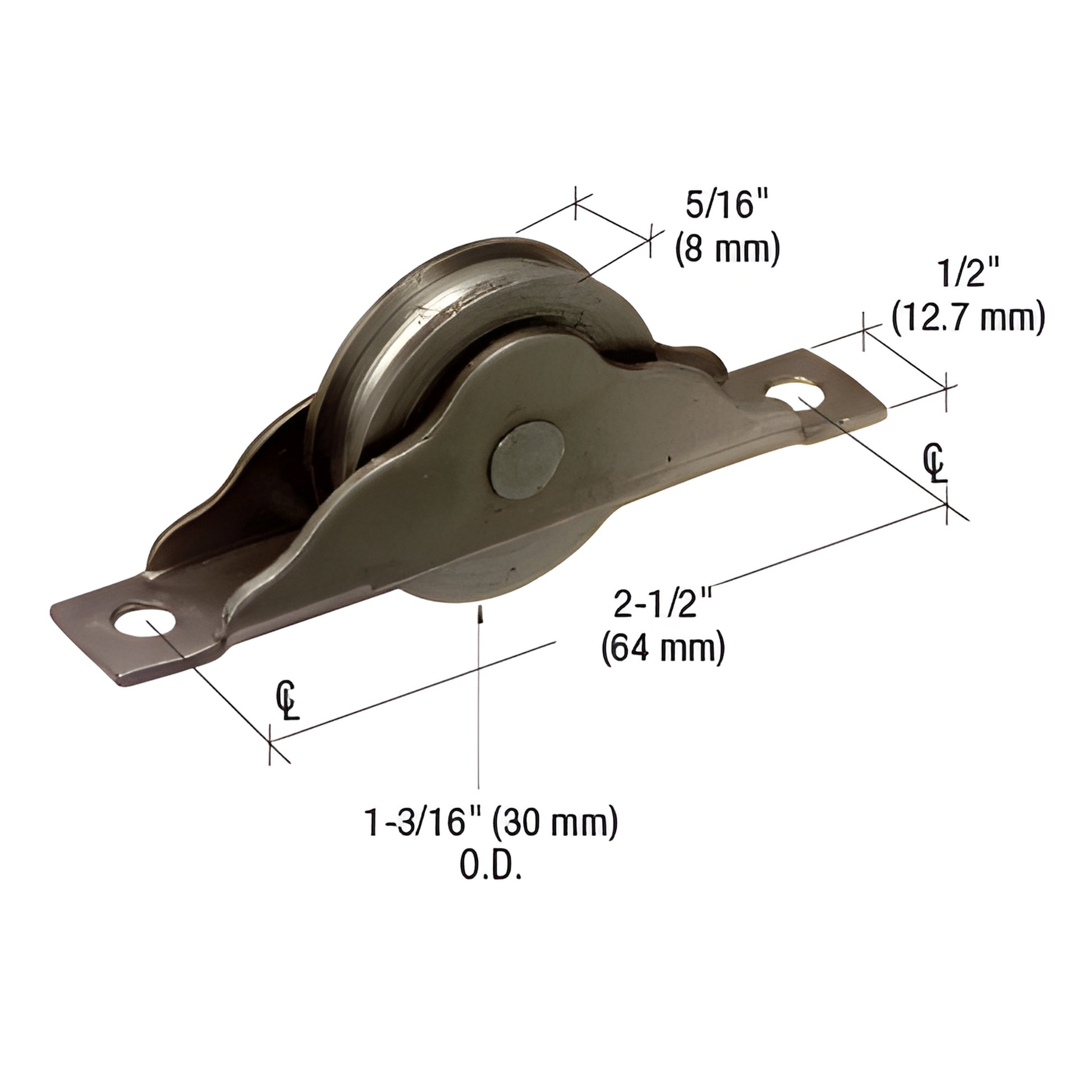

This CRL Sliding Door Roller has a single, 1-3/16" (30 mm) diameter steel concave ball bearing roller with solid axle. The housing is 1/2" (12.7 mm) wide with screw holes 2-1/2" (64 mm) on center. It fits a 2-15/16" x 1/2" (74.6 x 12.7 mm) mortise slot in the door rail. Two rollers per package.
