CRL 1-5/16" Collar Height Mab-Type Window Replacement Spindle
CRL 1-5/16" Collar Height Mab-Type Window Replacement Spindle
Regular price
$18.45 CAD
Regular price
Sale price
$18.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9050S33
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Collar Height
1-5/16
Handing
Non Handed
Material
Aluminum
Standard Door Cleareance
1-1/2
Style
Mab Square Tapered
Overview
- Compatible with all CRL models, Jackson® 900, and DORMA® BTS80 series floor mounted door closers
- Six collar heights available: 1/8" to 1-5/16" (3 to 33 mm)
- MAB (square tapered) and flat tapered spindle styles
CRL flat tapered and MAB (square tapered) spindles provide adjustable spindle heights to match varying threshold and finished floor conditions. Designed for use with floor mounted door closers, these spindles work with all CRL models, the Jackson® 900, and DORMA® BTS80 series closers. The flat tapered spindle accepts center-hung and offset bottom arms and fits CRL patch fitting inserts. The MAB-style spindle is widely used in Europe and South America, making it a versatile choice for international and retrofit applications.
Product Warning:

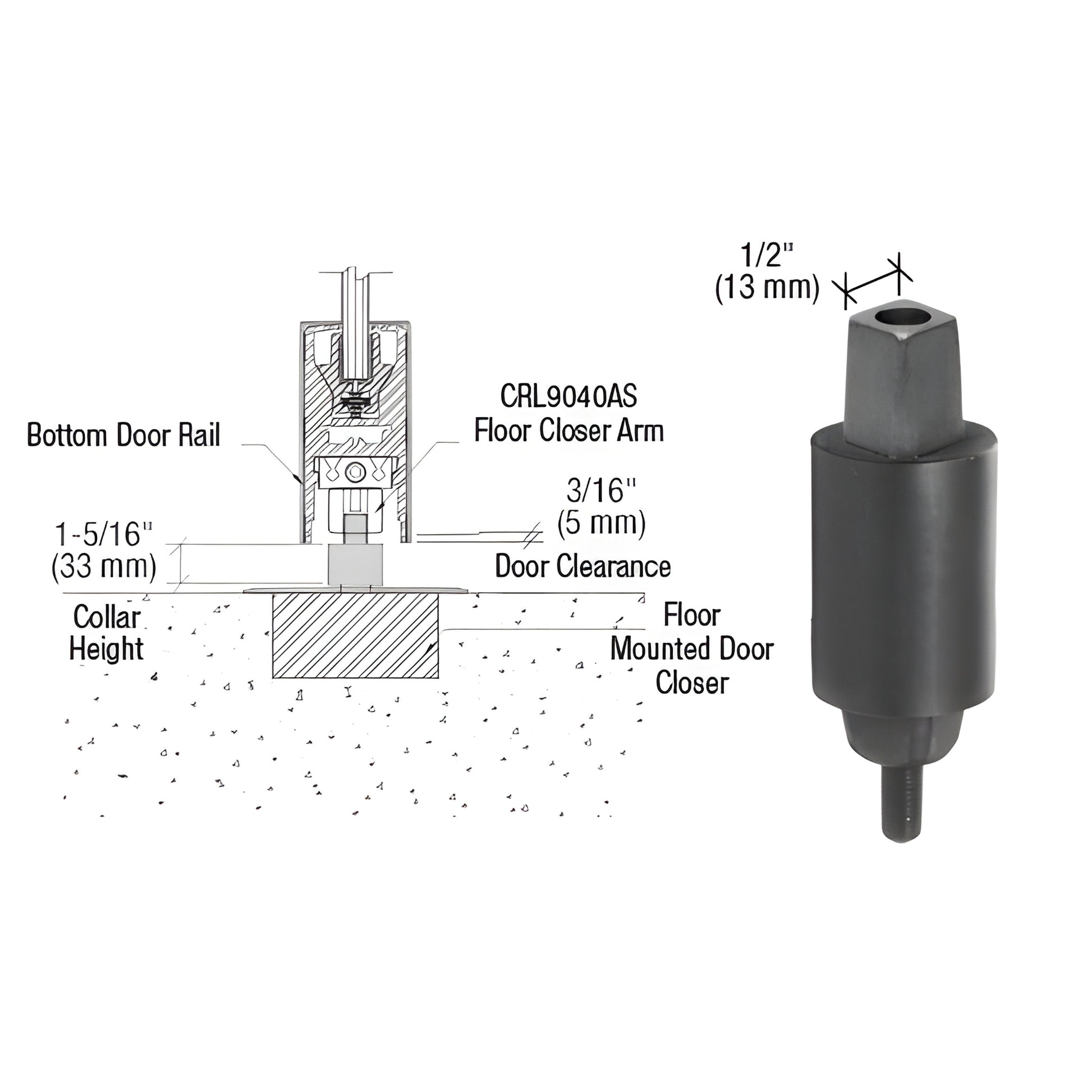

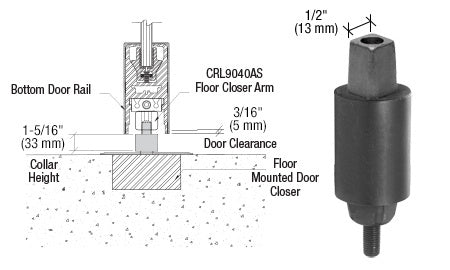

To determine actual door clearance from finished floor, add 3/16" (5 mm) to the collar height.
Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
SKU: CRL9050S33
Find the correct spindle height for your floor-mounted door closer—order CRL9050S33 or contact CRL Customer Service for assistance.
