CRL Mab-Type Door Spindle, 1/8" Collar Height Replacement

• For use with all CRL models, Jackson® 900 and DORMA® BTS80 series floor-mounted door closers
• Six available heights from 1/8" to 1-5/16" (3 to 33 mm)
• MAB (square tapered) type — European/South American style available

CRL Flat Tapered and "MAB" Type Spindles — SKU: CRL9050S3

CRL flat tapered and MAB spindles fit a wide range of threshold and finished-floor heights and are compatible with all CRL models as well as Jackson® 900 and DORMA® BTS80 floor-mounted door closers. The flat tapered spindle accepts center-hung and offset bottom arms designed for this spindle type and works with CRL patch fitting inserts. The MAB style spindle is commonly specified in Europe and South America for floor-mounted closer applications.

Product Warning:

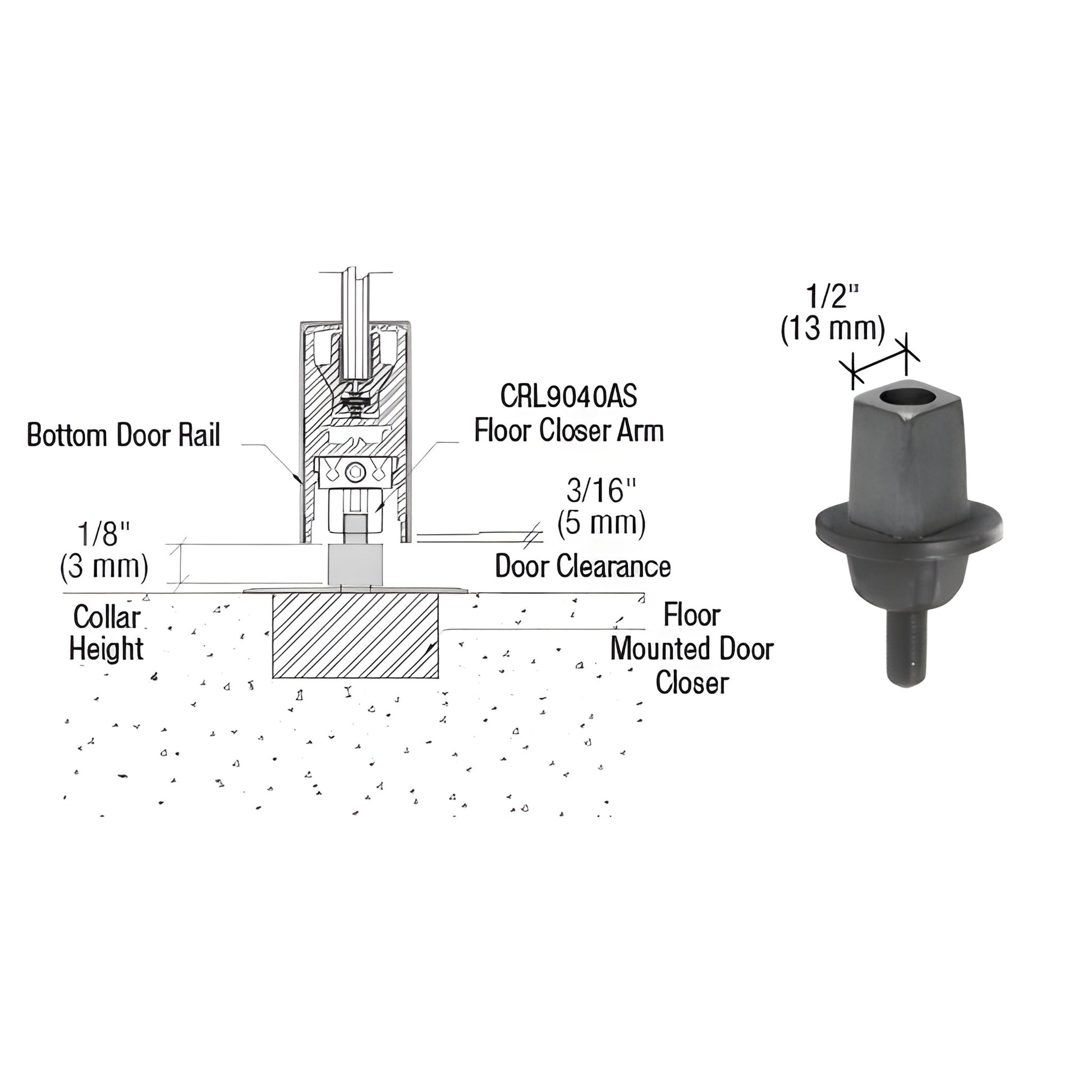

To determine actual door clearance from the finished floor, add 3/16" (5 mm) to the collar height.
Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.

Need help selecting the correct flat tapered or MAB spindle for your floor-mounted door closer? Contact CRL Customer Service or add SKU CRL9050S3 to your cart to order now.
