Product Details

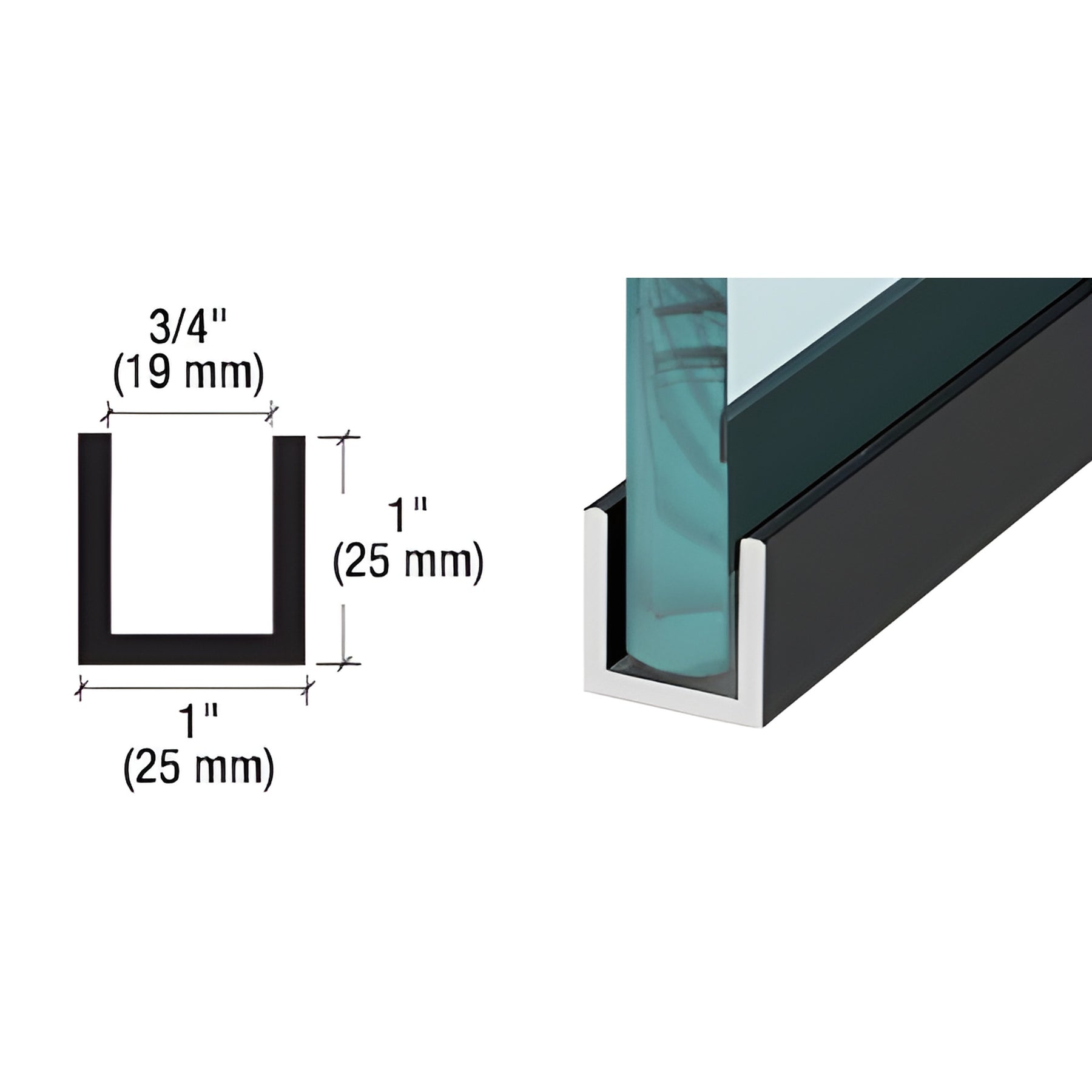

- Shallow 1" (25.4 mm) Height
- Use Monolithic Tempered Glass
- Typically Used at the Bottom of Glass Panels
- Use with Silicone (Wet) or Glazing Gasket (Dry)
- Matching End Caps Sold Separately
CRL Shallow and Deep Wet/Dry Glaze U-Channels provide the smallest profile U-Channel for glazing 3/8" or 1/2" (10 or 12 mm) glass. They are available in six standard finishes in both 120" and 240" (3.05 and 6.10 m) stock lengths.
Wet/Dry Glaze U-Channels provide the most economical way to glaze heavy glass. Using a Deep U-Channel on the top and the Shallow U-Channel on the bottom allows for the 'lift and drop' method of glazing. The glass can be secured with silicone sealant or our Top Load Roll-In Glazing Gasket.
For Cladded U-Channels, custom finishes, or custom lengths, contact CRL Technical Sales Department.
Product Warning:
PS, BS, PB, SB, ORB Finishes are all Cladded.
