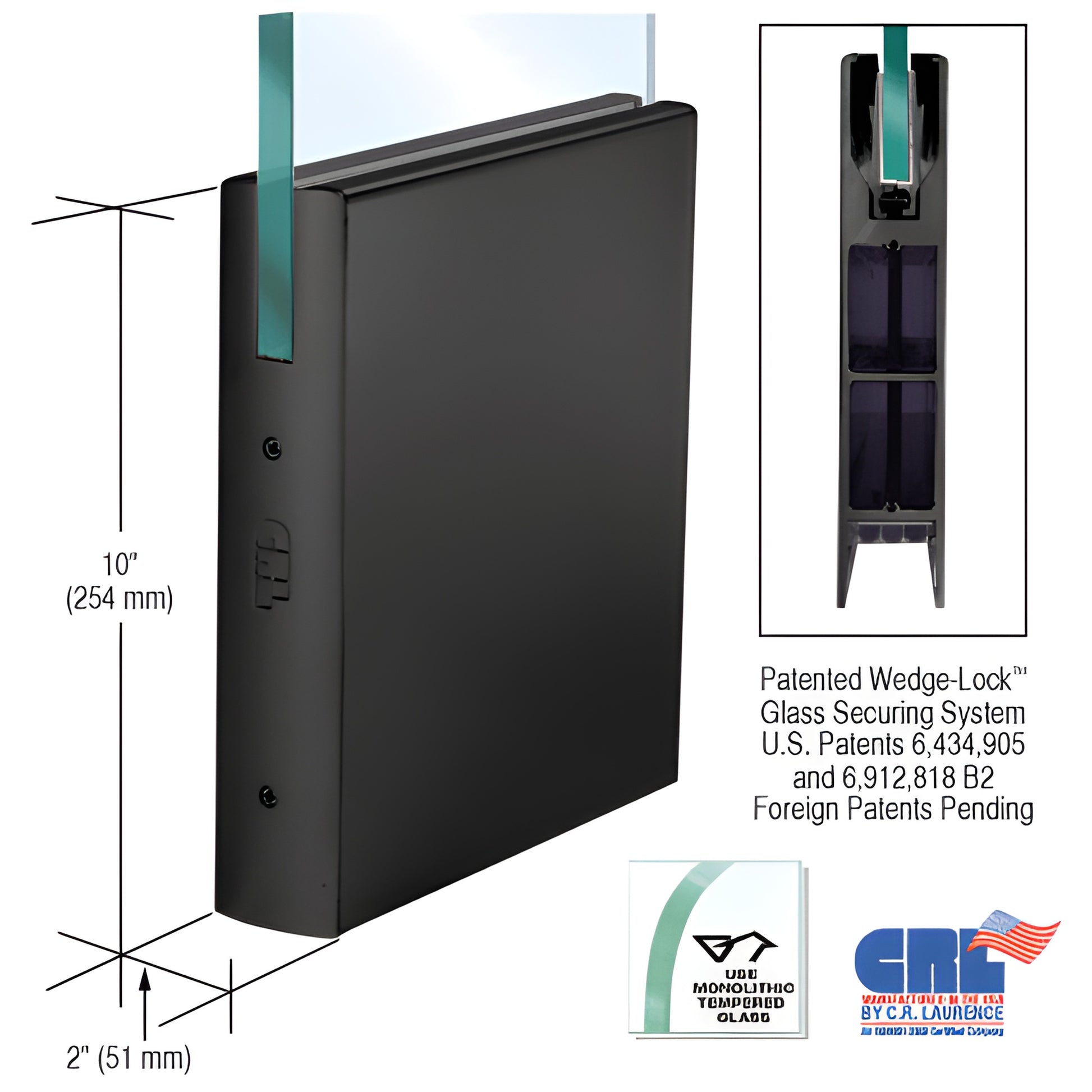

CRL 10" Black Powder-Coat Sq Door Rail for 1/2in Glass - Custom No Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This unique wedge-action design secures monolithic tempered glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the bar is pulled down, angled extrusions engage an angled groove in the door rail, creating extremely high clamping force (over 900 lbs. in the 9" / 228.6 mm corner rail) — and proportionally greater force in full-length rails such as the 35-3/4" (908 mm) door rails. This system provides a durable, secure attachment for storefront and interior glass doors without compromising appearance or function.

NOTE: Actual product height: 10" (254 mm).

Key advantages and features:

• Fastest installation time among door rail systems — experienced installers can prepare a door in under ten minutes
• Completely fabricated and ready-to-install out of the carton with end caps installed
• Adjustable Door Alignment System standard on top and bottom rails allows 1/8" (3 mm) in/out adjustment without removing the door
• Low-profile adjustable slide enables pivot placement away from the American Standard setback (2-3/4" / 69.8 mm) and compensation for vertically out-of-square openings
• Rigid single-component housing resists shift and long-term loss of adjustment
• Internal components do not require removal before installation; glass securing pads engineered for longevity in extreme environments
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass

After installation, access three socket head cap bolts by removing the end cap: center bolt secures the adjustable slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. Arms and pivots must be ordered separately to meet job requirements — the rails include the built-in jamb alignment block and the standard Kwik-Adjust™ Pivot Alignment System. Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturn
