CRL 105Β° Concealed Overhead Door Closer, Adj. Spring, No Hold-Open
CRL 105Β° Concealed Overhead Door Closer, Adj. Spring, No Hold-Open
Regular price
$266.96 CAD
Regular price
Sale price
$266.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8772S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6772, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8972GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- For doors with 1/2" (13 mm) top rail depth
- 5 Year Limited Warranty
- UL Listed

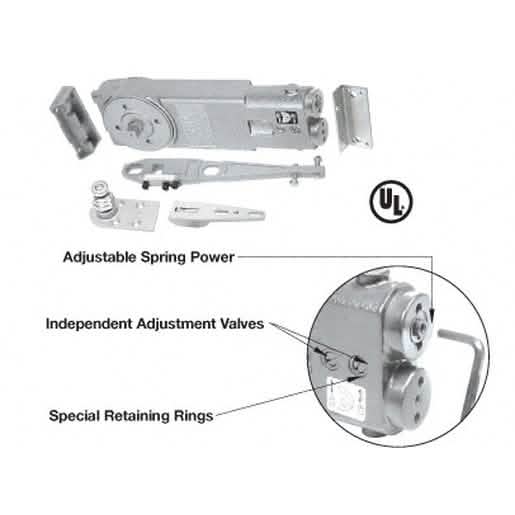

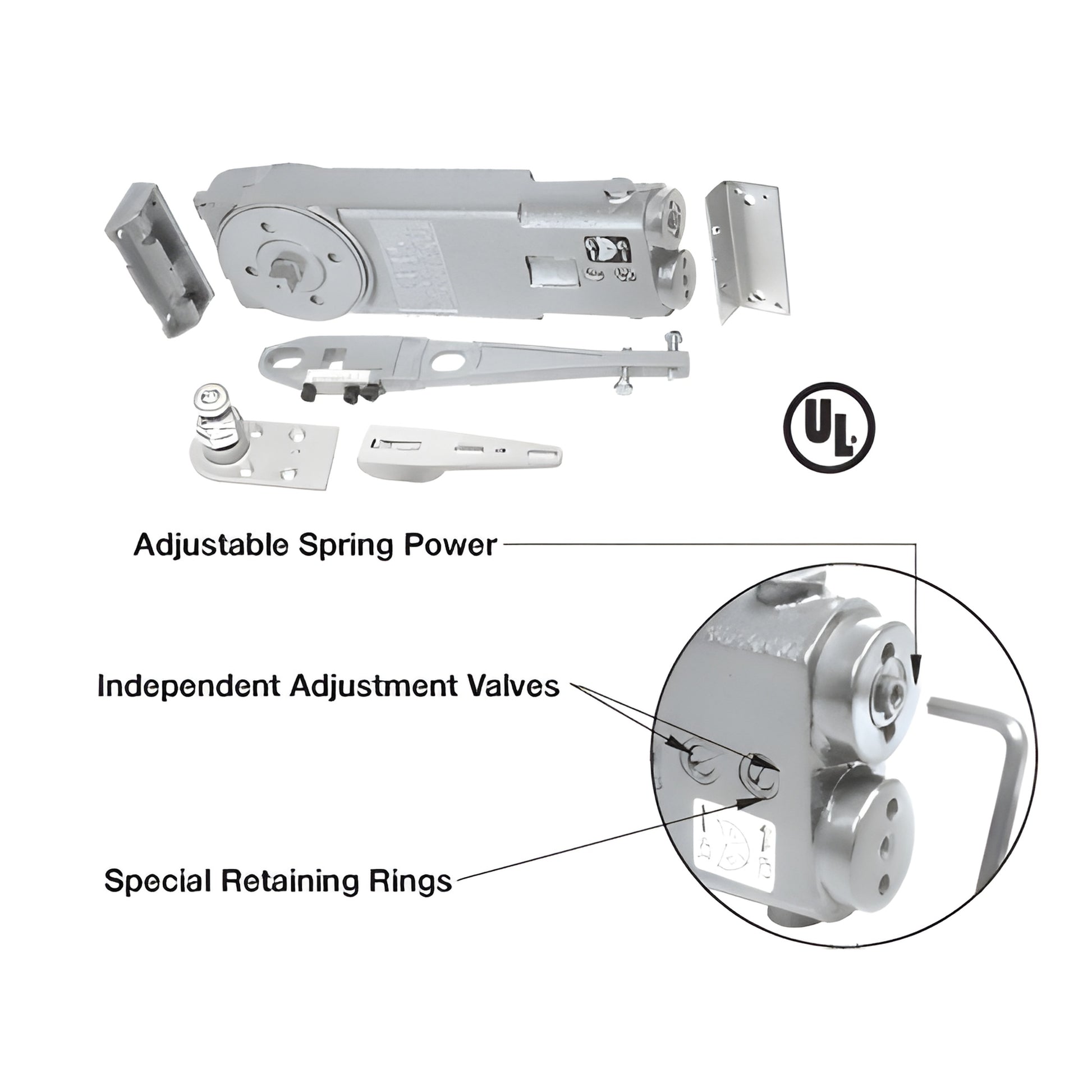

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8772S) is an ADA-compliant, overhead concealed door closer designed for retrofit or new installations. Available as a body-only with mounting clips to replace non-adjustable closers, or as complete packages that include the door closer body, mounting clips, Type S side-load arm or Type A end-load arm, and a DP-Adjustable Dual-Purpose Bottom Pivot Set or GE-Pivot Set. The closer installs into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and offers different spring sizes and hardware options to match site conditions.
Adjustable Spring Power
Adjust spring tension from a minimum opening force of 8-1/2 lbs up to a medium spring size to accommodate varying door weights and site requirements.
Independent Adjustment Valves
Non-critical valves provide independent control of closing speed and latching speed for precise door performance.
Special Retaining Rings
Retaining rings prevent valve screws from being backed completely out of the door closer body, improving durability and serviceability.
Hold Open Options
Available in both 90Β° and 105Β° hold-open and no-hold-open models to suit corridor and room layouts.
NOTE: Use an auxiliary floor or overhead door stop to prevent over-extension of maximum door swing and potential damage to the closer or entryway.
Product Warning:
Closers set to comply with A.D.A. opening force limits may not provide sufficient spring power to reliably control and close the door under certain site conditions or with larger door sizes. Verify suitability for your installation before final selection.
For ADA-compliant overhead concealed door closers and retrofit solutions, order SKU CRL8772S or contact CRL for configuration and pricing.
